PRODUCT MAINTENANCE
6.0 PRODUCT MAINTENANCE
6.1 Battery Replacement
To replace the battery the canopy enclosure must be removed. The time period which the enclosure is opened should be
minimized to reduce moisture and contamination. The battery holder may have a zip tie or other locking mechanism in
place which can be removed.
1. Make a note of the enclosure to base orientation prior to disassembly.
2. Remove the enclosure retaining screws and then the cover.
3. Inspect the inside environment of the enclosure and look for damage of any type.
4. Remove the existing battery and discard it following the local government standards.
5. Install the new battery.
6. Verify that the register turns on.
7. Replace the existing dry packs with new dry packs if available.
8. Apply O-ring lube to the cover O-ring (Figure 21).
9. Install the cover and screws.
10. If required re-install tamper evident components.

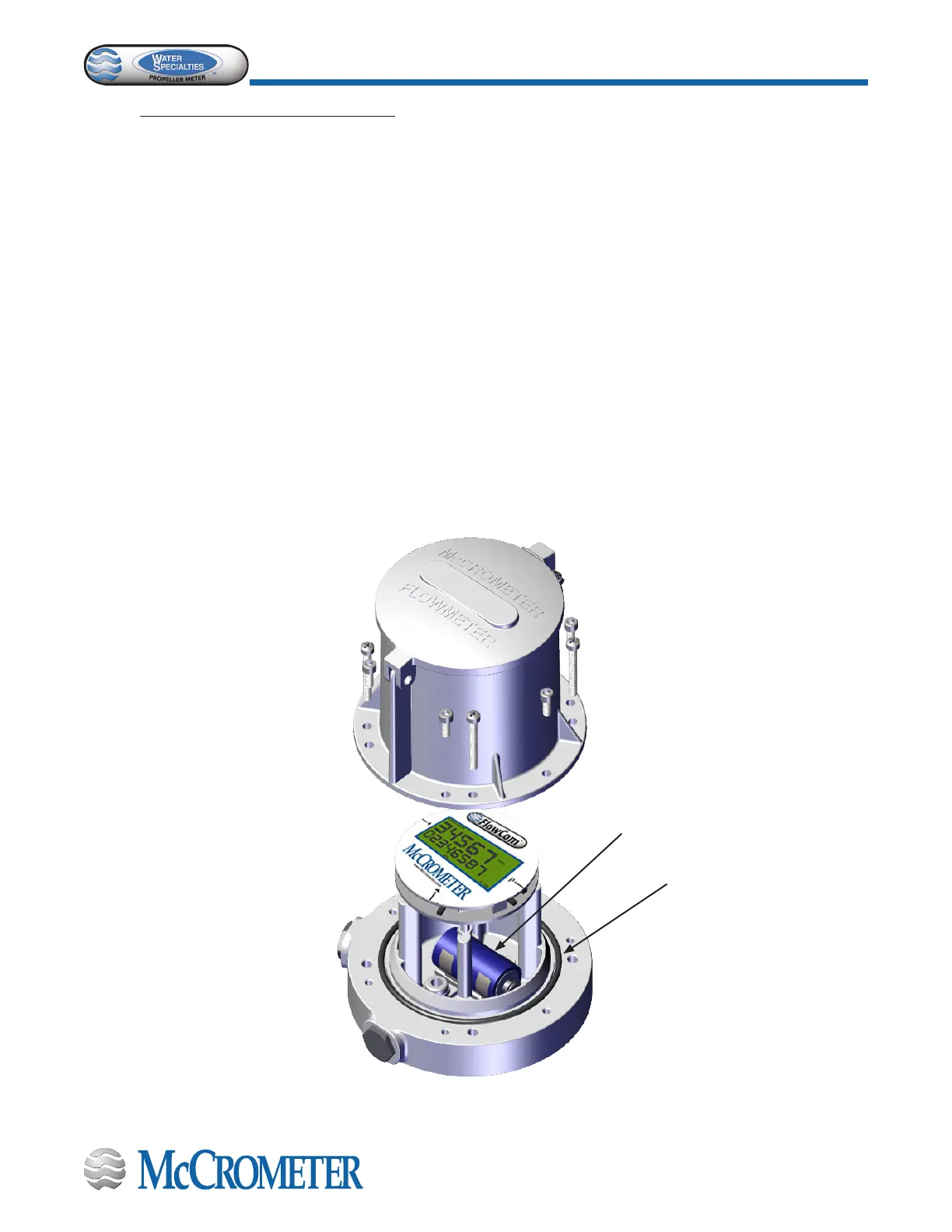

Figure 19. Canopy Enclosure Removed For Battery Replacement
Battery
Cover O-ring
