30119-50 Rev. 2.2 | 23JUL2020
Page 9
INSTALLATION
2.2 Mechanical-to-FlowCom Conversion Kit Installation - Remote Mount
Check the parts received against the parts list and Figure 5 and Figure 6 below. Contact the factory to report any
discrepancies.
For FlowCom models with remote: FC101-00-K, FC101-01-K, FC101-02-K, FC101-03-K with remote mount.
Refer to Figure 5 above.
Parts
Diagram
Description
Quantity
Part
Number
1 FlowCom Unit 1 FC101-01
2 Propeller Assembly 1
Bagged parts:
3 Separator 1 4-2455-2-D
4 Sensor 1 4-2745-2
5
Reverse Thrust
Brg Tool
1 T2402X-1
6 Magnet Wand 2 FC100-M
7 Back Plate 1 2-2731-SS
8
Screws, 10-32 x
5/8 FIL HD
4
1-1115-10-
10B
9 O-Ring (028 Buna) 1 1-1551-2
10 O-Ring (022 Buna) 1 1-1551-24
11
Screw 8-32 x 7/16
SOC HD
8 1-1103-8-7

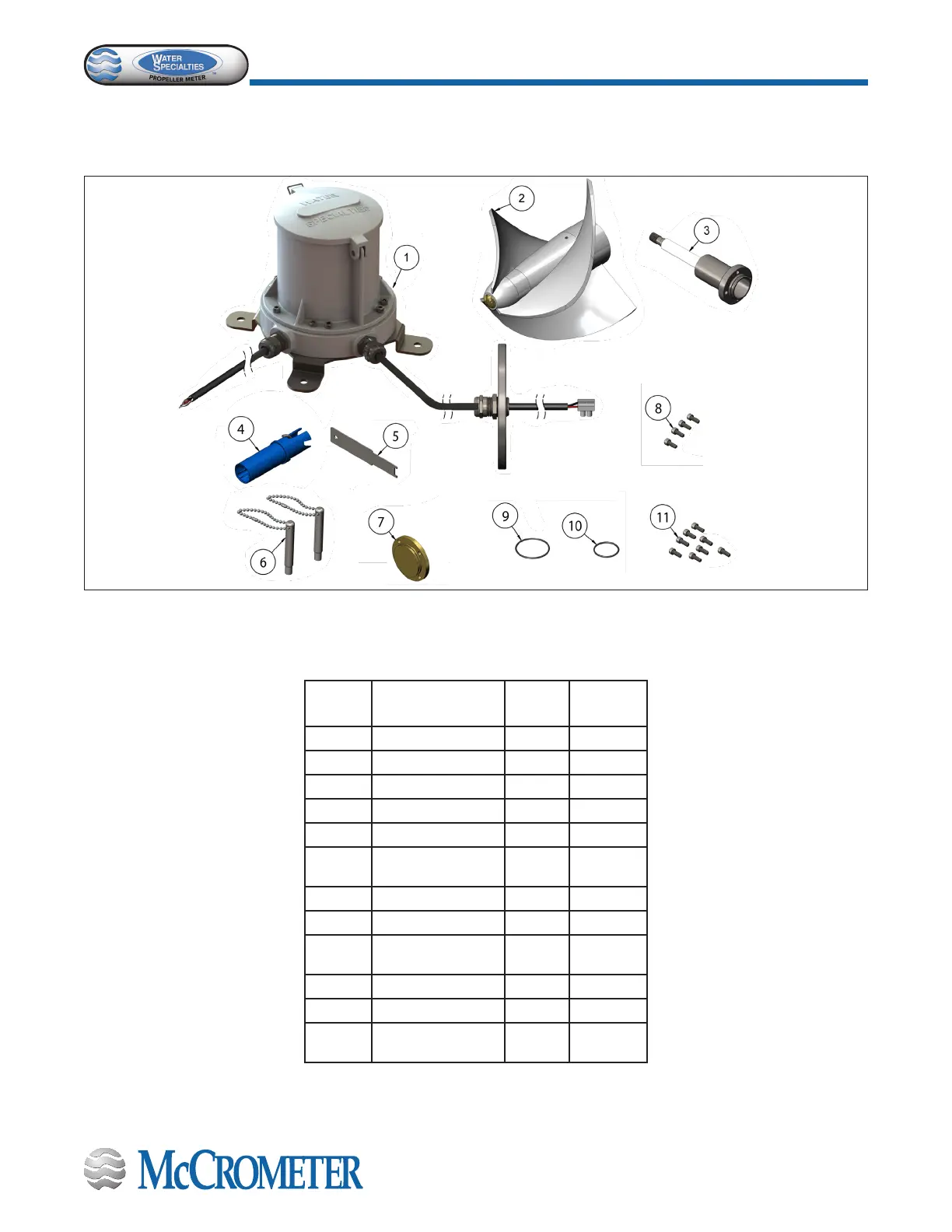

Figure 5. Conversion Kit for Table Shown Below
