McIntosh Power Amplifier

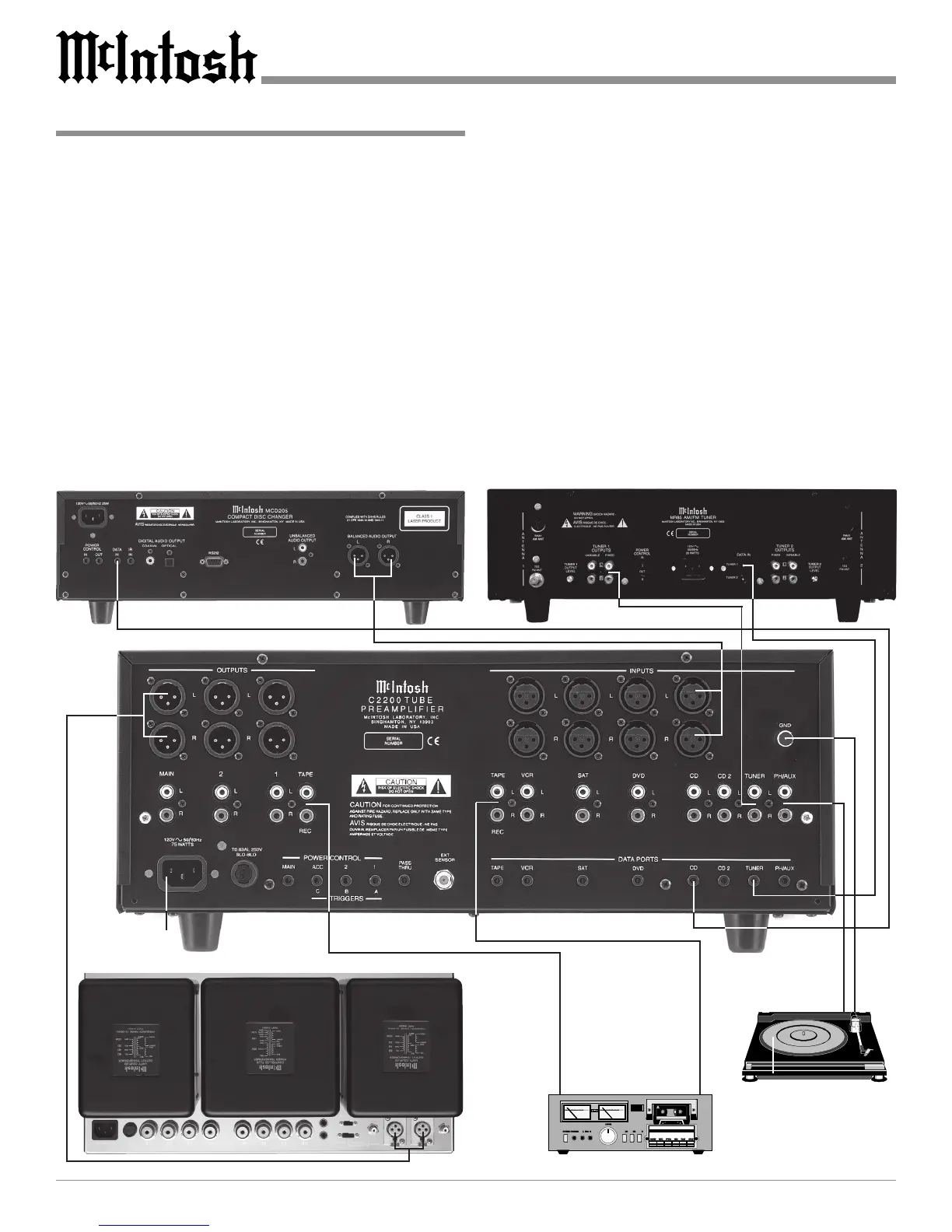

How to Connect for Audio and Data Control
1. Connect Audio Cables from the McIntosh C2200
MAIN Balanced OUTPUTS to the McIntosh Power
Amplifier Balanced INPUTS.
Note: The unbalanced MAIN Audio Outputs and unbalanced
Power Amplifier Inputs may be used instead of the
Balanced Connections.
2. Connect Audio Cables from the McIntosh CD Player
Balanced Audio Outputs to the C2200 CD Balanced
INPUTS.
Note: The unbalanced Audio Outputs and Inputs may be used
instead of the Balanced Connections.
3. Connect an Audio Cable from a McIntosh Tuner 1 Out-
puts to the C2200 TUNER INPUTS.
4. Connect an Audio Cable from a Turntable to the PH/
AUX INPUTS and the Turntable Ground Connection to
the GND grounding post.
Turntable
McIntosh AM/FM Tuner
McIntosh CD Player
Tape Deck
in out
To AC Outlet
5. Connect an Audio Cable from the C2200 TAPE/REC
OUTPUTS to the Record Inputs of a Tape Recorder
and from the C2200 TAPE INPUTS to a Tape Recorder
Outputs.
6. Connect a Control Cable from the C2200 CD DATA
PORT Jack to the DATA IN Jack on the McIntosh CD
Player.
7. Connect a Control Cable from the C2200 TUNER
DATA PORT Jack to the DATA IN Jack on the McIn-
tosh Tuner.
Note: By adding a McIntosh Remote Control Translator to
the C2200, non McIntosh Source Devices such as a
Satellite Receiver can be remotely controlled using a
McIntosh Remote Control and Keypad/Sensor.
8. Connect the C2200 Power Cord to a live AC outlet.
How to Connect for Audio and Data Control
