27
Packing Instructions

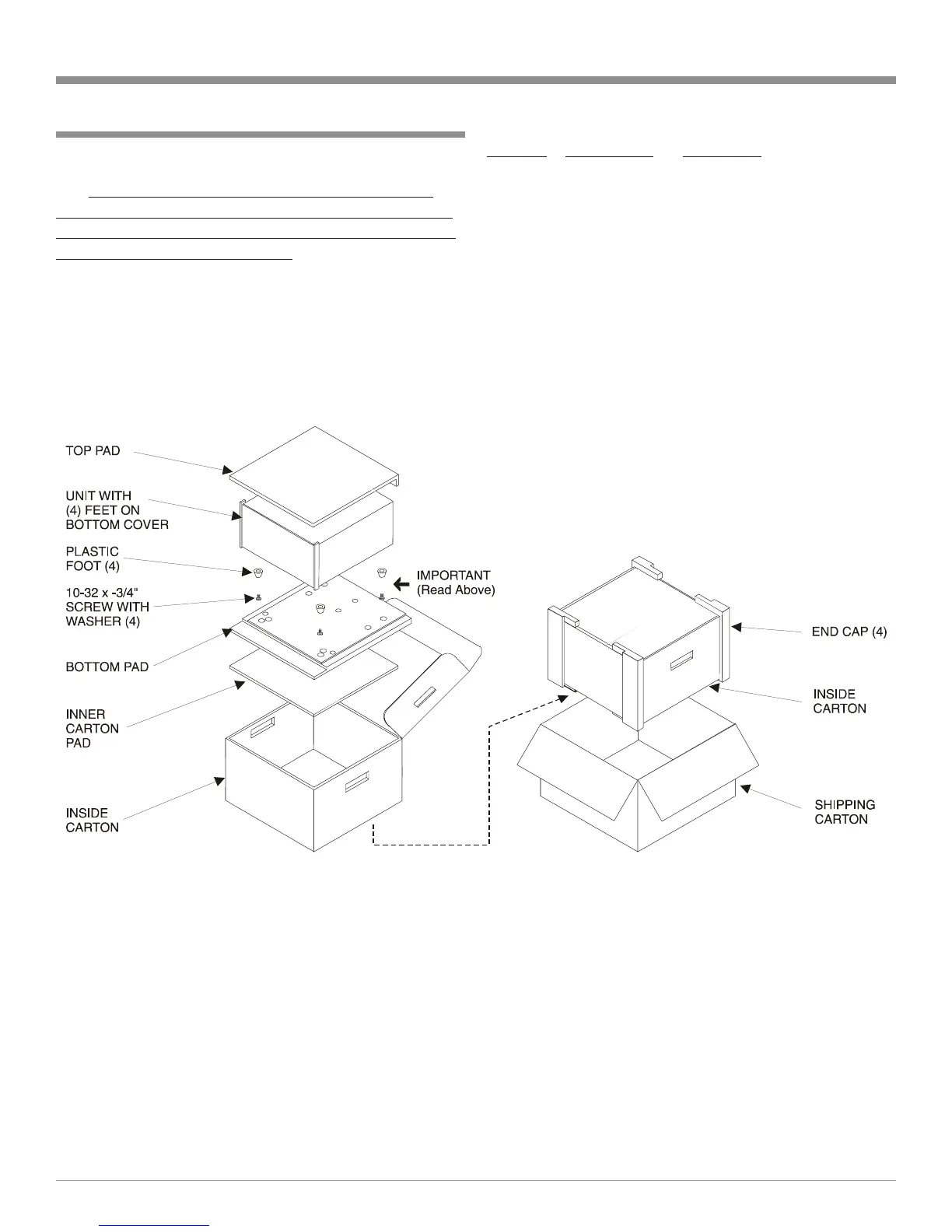

In the event it is necessary to repack the equipment for ship-
ment, the equipment must be packed exactly as shown be-
low. It is very important that the four plastic feet are at-
tached to the bottom of the equipment. This will ensure the
proper equipment location on the bottom pad. Failure to do
this will result in shipping damage.
Use the original shipping carton and interior parts only if
they are all in good serviceable condition. If a shipping car-
ton or any of the interior part(s) are needed, please call or
write Customer Service Department of McIntosh Labora-
tory. Please see the Part List for the correct part numbers.
Quantity Part Number Description
1 033888 Shipping carton only
4 033887 End cap
1 033697 Inside carton only
1 033725 Top pad
1 034194 Bottom pad
1 034037 Inner carton pad
4 017218 Plastic foot
4 100159 #10-32 x 3/4” screw
4 104083 #10-7/16” Flat washer
