McIntosh Power Amplifier

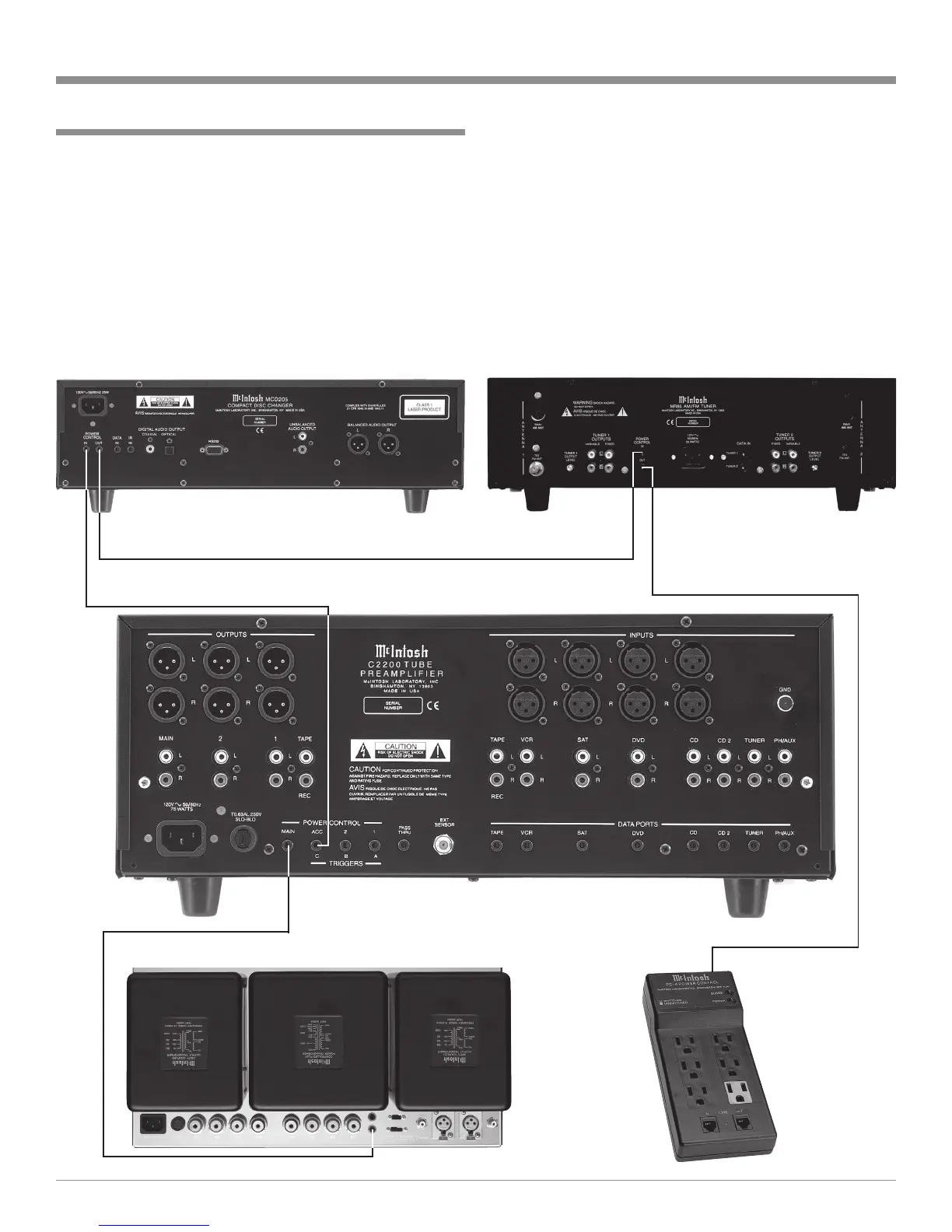

How to Connect for Power Control
McIntosh AM/FM Tuner
McIntosh CD Player
How to Connect for Power Control
McIntosh
Power Control
The four Power Control Jacks have default settings as ex-
plained on page 8. The hookup example below utilizing the
default settings. If you wish to use any one of the three as-
signable Power Control Outputs as a dedicated Trigger in-
stead, connect that Component Source Unit’s Power Control
Input to the desired Trigger Output (A, B, or C). The de-
fault setting in the C2200 Setup needs to be changed to
match the new Power Control Connection.
1. Connect a Control Cable from the C2200 POWER
CONTROL ACCessory Jack to the Power Control In
on the McIntosh CD Player.
2. Connect a Control Cable from the McIntosh CD Player
Power Control Out Jack to the Power Control In Jack
on the McIntosh Tuner.
3. Connect a Control Cable from the McIntosh Tuner
Power Control Out Jack to the Power Control Jack on
the McIntosh Power Control.
4. Connect a Control Cable from the C2200 MAIN
POWER CONTROL Jack to the Power Control In Jack
on the McIntosh Power Amplifier.
