13

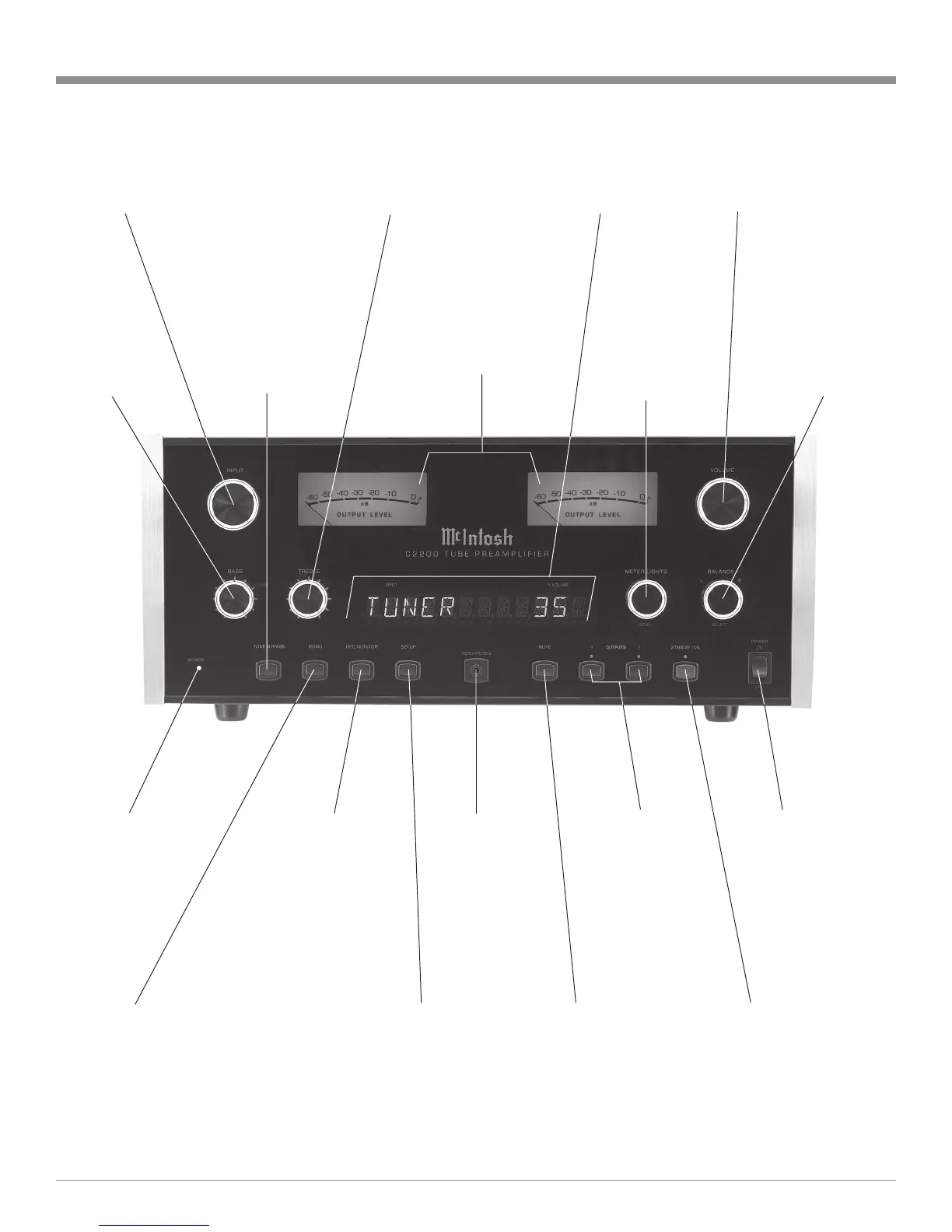

Front Panel Controls, Displays, Push-Buttons, and Switches
BALANCE Control
allows the adjustment
of the relative volume
levels for each channel
and is used for setup
functions
POWER
Switch turns
all AC power
completely On
or Off
INPUT Switch selects
the Program Source
Signals and is used in
Setup Mode
DISPLAY indicates the
Sources, Volume/Bal-
ance Levels, Operational
Functions and Setup
Mode Settings
REC MONITOR
Push-button with
indicator, allows
listening to the
playback of REC/
TAPE Source while
the recording is in
process
MONO Push-button
with indicator, com-
bines Left and Right
Stereo Signals to
Mono
SETUP Mode Push-button
with indicator, allows the
changing of the default
settings for Inputs, Levels,
Special Functions and the
Display
MUTE Push-button
mutes audio in
MAIN, OUTPUTS
1&2 and HEAD-
PHONES
OUTPUTS 1 and
2 Push-buttons
with indicators,
allow the C2200
to switch Power
Control and Au-
dio to two sepa-
rate Stereo Power
Amplifiers
STANDBY/ON Push-button
turns the C2200 On, or Off
(Standby). The LED Indica-
tor illuminates when there is
incoming AC Power
IR Sensor for
Remote Con-
trol Operation
HEADPHONE
Jack accepts
dynamic head-
phones
TONE BYPASS with
indicator, when acti-
vated the audio signal
totally bypasses the
Tone Control Circuitry
TREBLE Control
provides 12dB
boost or cut with a
flat center position
BASS Control
provides 12dB
boost or cut
with a flat cen-
ter position
METERS indicate the
Preamplifier’s Left and
Right Channels Relative
Output Level
VOLUME Control ad-
justs the listening vol-
ume level and is used
for setup functions
METER LIGHTS
Switches the Meter
Illumination On or
Off, and is used in
the Setup Mode
