McIntosh MA5200 User Manual


McIntoshLaboratory,Inc
2ChambersStreet•Binghamton,NY13903•(800)538Ͳ6576•www.mcintoshlabs.com
ASIO Hosts can change should be checked.
The next section will cover the settings in the JRiver Media Engine 20.

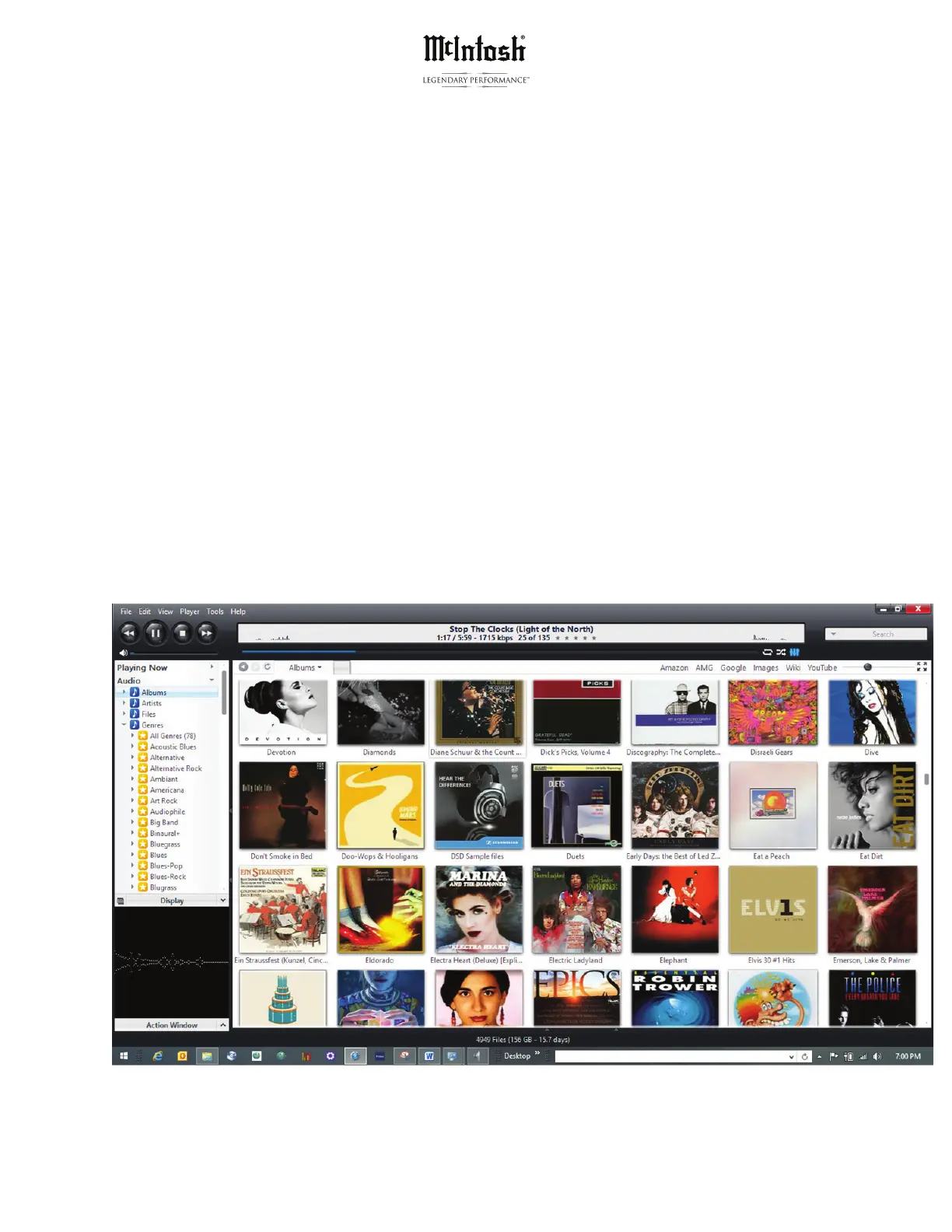

Settings in JRiver 20 for McIntosh 32/192 PCM DACS.
JR20 is a powerful computer program that will allow the manipulation and playback of
many types of files. Under the HELP tab at the top left of the JR home screen you will
find a drop down menu that lists HELP ->HELP WIKI. This is an open interact forum
where other JRiver users, engineers and experts can answer questions and share
solutions for JR operation. To be an expert on all computers is beyond the scope of this
outline but these basic settings will work well with the McIntosh 32/192 USB 2.0 High
Speed input for music playback of all file types using a Windows 7 or 8 machine.

McIntosh MA5200 Specifications

General

Power Output per Channel	100 Watts
Number of Channels	2
Total Harmonic Distortion	0.005%
Input Impedance	20k ohms
Rated Power Band	20Hz to 20kHz
Dynamic Headroom	1.8dB
Preamplifier Output	Yes
Dual Mono Power Supply	No
USB Input	1
Coaxial Input	1
Optical Input	1
Damping Factor	>200
Power Requirement	120V 50/60Hz
Digital Inputs	Coaxial, Optical, USB
Frequency Response	+0, -0.5dB from 20Hz to 20kHz +0, -3dB from 10Hz to 100kHz
