McIntosh MA5200 User Manual


McIntoshLaboratory,Inc
2ChambersStreet•Binghamton,NY13903•(800)538Ͳ6576•www.mcintoshlabs.com
The top left corner of the JR home screen has a series of tabs; File, Edit, View, Player,
the Tools where the playback setting are located, and Help.

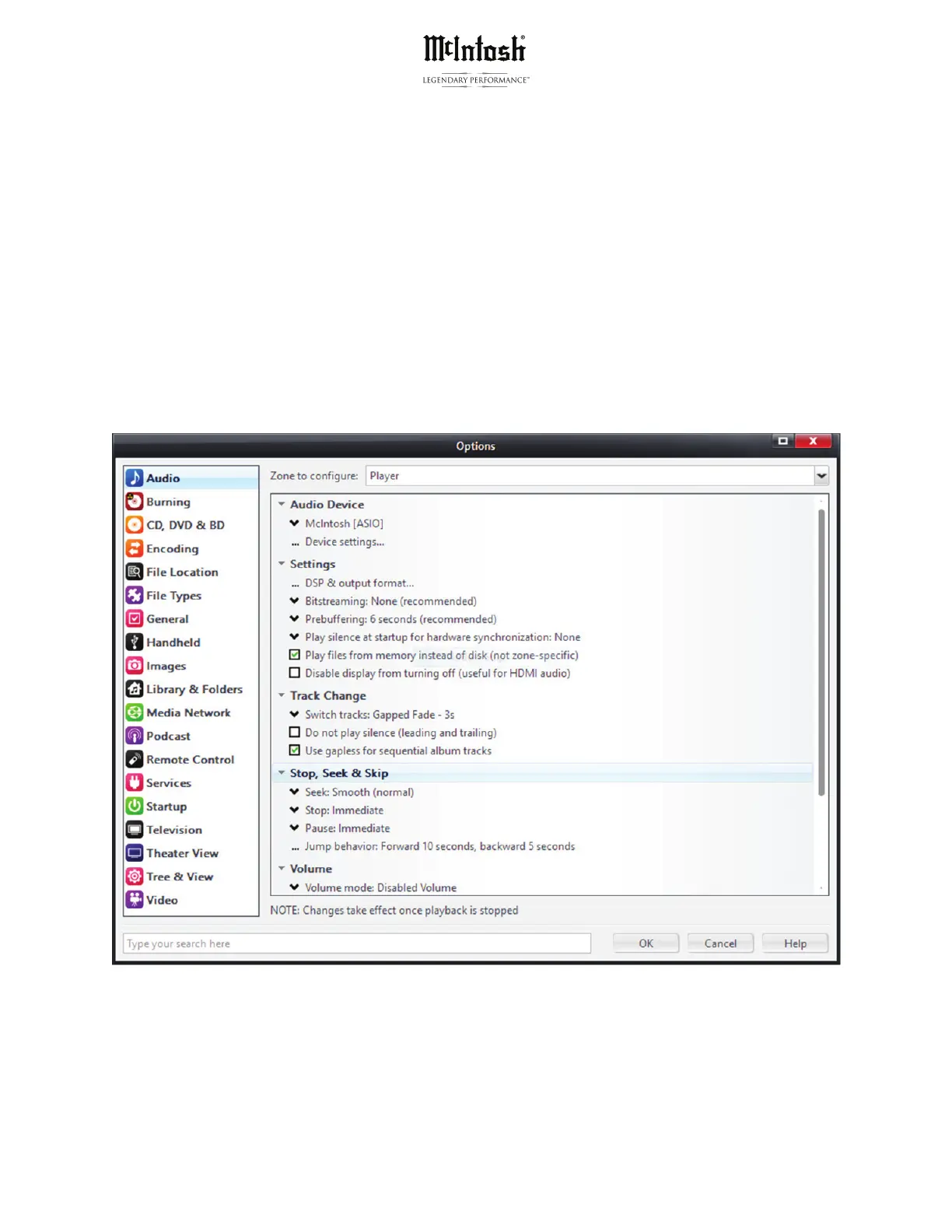

Left click on the Tools tab and go to the bottom of the list and select Options. This will
open up the main adjustment page. The top left hand side AUDIO tab should be
checked so the adjustments to the Audio Device section of the program are listed.
The first selection made needs to be Digital Output under Audio Device. Selecting
Digital Output will list all of the USB audio drivers on the computer. Please check
McIntosh (ASIO). This matches the McIntosh 32/192 USB input. If it does not appear in
the list please see the driver download directions on the first page of this Doc.
Next tab … Device settings … will need to be opened. The settings listed below are
the preferred settings for smooth playback. After these are made click OK at the
bottom of the screen.

McIntosh MA5200 Specifications

General

Power Output per Channel	100 Watts
Number of Channels	2
Total Harmonic Distortion	0.005%
Input Impedance	20k ohms
Rated Power Band	20Hz to 20kHz
Dynamic Headroom	1.8dB
Preamplifier Output	Yes
Dual Mono Power Supply	No
USB Input	1
Coaxial Input	1
Optical Input	1
Damping Factor	>200
Power Requirement	120V 50/60Hz
Digital Inputs	Coaxial, Optical, USB
Frequency Response	+0, -0.5dB from 20Hz to 20kHz +0, -3dB from 10Hz to 100kHz
