1. One FM Antenna
2. Four HDMI IN
3. Two coaxial digital audio inputs
4. Two Toslink optical inputs
5.
6.
7.
8. One 10baseT LAN connector
9. One USB upgrade service port
10. One AC power connector
11.

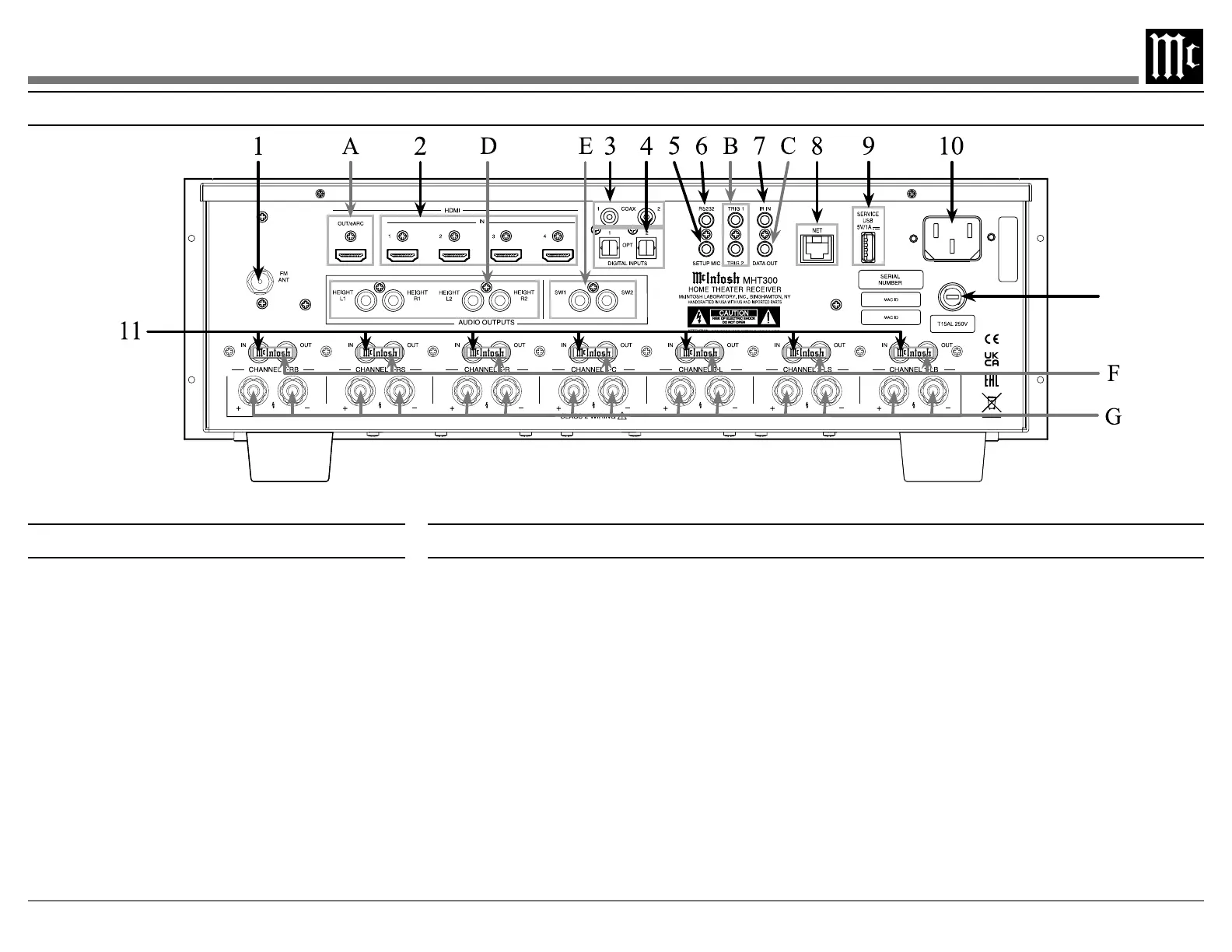

Rear Panel Connections
Rear Panel Inputs Rear Panel Outputs
A. HDMI Out / eARC
Note: Acts as an audio input when ARC is active.
B.
C.
D. Four additional outputs are available for Height
• HR1 (Height Right 1)
• HL1 (Height Left 1)
• HR2 (Height Right 2)
• HL2 (Height Left 2)
Note: HR1 and HL1 should be forward of HR2 and HL2. The
MHT300 support of Height speakers is limited to Top Front,
Top Middle and Top Rear locations.
Fuse
see rear panel for details
E. Two subwoofer outputs are available to connect to
powered subwoofers.
• SW1 (Subwoofer 1)
• SW2 (Subwoofer 2)
F.
• FR (Front Right)
• FL (Front Left)
• C (Center)
• SR (Surround Right)
• SL (Surround Left)
• SBR (Surround Back Right)
• SBL (Surround Back Left)
G. Speaker outputs
