8
Power Control Connectors
The MHT300 TRIG 1 & 2 outputs on the rear panel
McIntosh components. A 3.5mm stereo mini plug
is used for connection to the trigger outputs on the
MHT300.
Data Out Connector
The MHT300 will convert IR remote control data
to share with McIntosh components connected to the
DATA OUT port on the rear panel. This will allow
the operation of primary functions of a source to be
operated with the MHT300’s remote control as well
as allow units that are out of range of an IR signal to
receive commands.
NET Port (Ethernet / 10baseT LAN)
Use an Ethernet cable to connect the MHT300 to
a network router. The network connector is located
on the rear panel of the MHT300 to the left of the
CAUTION label. It is labeled NET.
By default, the MHT300 has DHCP set to ON and
will automatically receive an IP address from the
router. This setting can be changed.

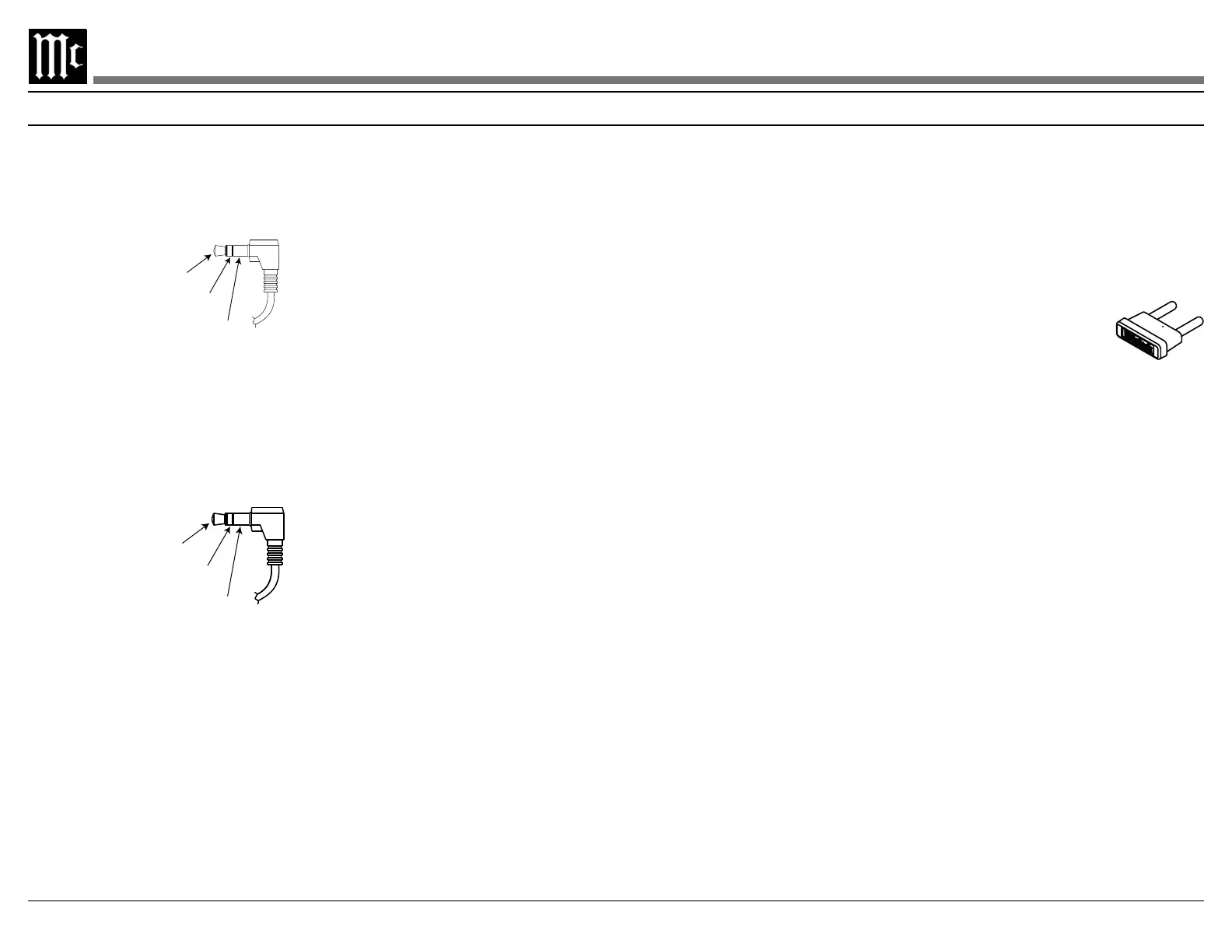

Connector and Cable Information
Power
Control
Ground
Lighting
Control
Data
Signal
N/C
Data
HDMI
The MHT300 has four HDMI inputs capable of 8K
video. To take advantage of this new capability, the
-
mended. This would include support for 8K@60Hz,
HD
R, Ethernet, and ARC. Although HDMI is
backward compatible, older cables may have issues
with the higher bandwidth.
Use the HDMI OUT/eARC port when connect-
ing to an ARC (Audio Return Channel) enabled
tel
evision.
ARC can provide two-way communication between
units allowing for volume control and lip-syncing
functions to ensure audio and video are perfectly
matched. This allows for more intelligent operation
between components as well as less cable clutter.
Make sure the ARC is enabled in your TV’s setup
menu.
The MHT300 supports eARC which allows for
even higher bandwidth and will allow for higher
quality audio including uncompressed 7.1 surround,
Dolby Atmos and DTS:X.
USB
There is a USB type-A port on the rear panel of
the MHT300 which is labeled USB 5V/1A. The USB
restore MHT300 setup information. The USB port is
not for general USB use or charging devices.
Amplier Jumper Connectors
The MHT300 utilizes 7 phono style jumper
connectors to make a signal connection between the
come pre-installed. The jumper connections may be
with the processor section to further customize your
playback system.
Note: The Jumper Connector is available
from the McIntosh Parts Department:
McIntosh Jumper Connector Part No. 117781
FM Antenna
The MHT300 FM tuner circuitry requires the
connection of an external Antenna for FM recep-
tion. Port (1) accepts a 75 Ohm Coaxial Type F
con
nection.
Microphone
The SETUP MIC input is for connecting the
supplied MHT300 Microphone using the micro-
phone’s attached cable and a 3.5mm connector. The
mi
crophone is used in the Dirac Live
®
calibration for
tuning the system to your room. For instructions see
“Dirac Live® Setup” on page 24.
