IOMM AGZB1 AGZ 010B through 034B 11

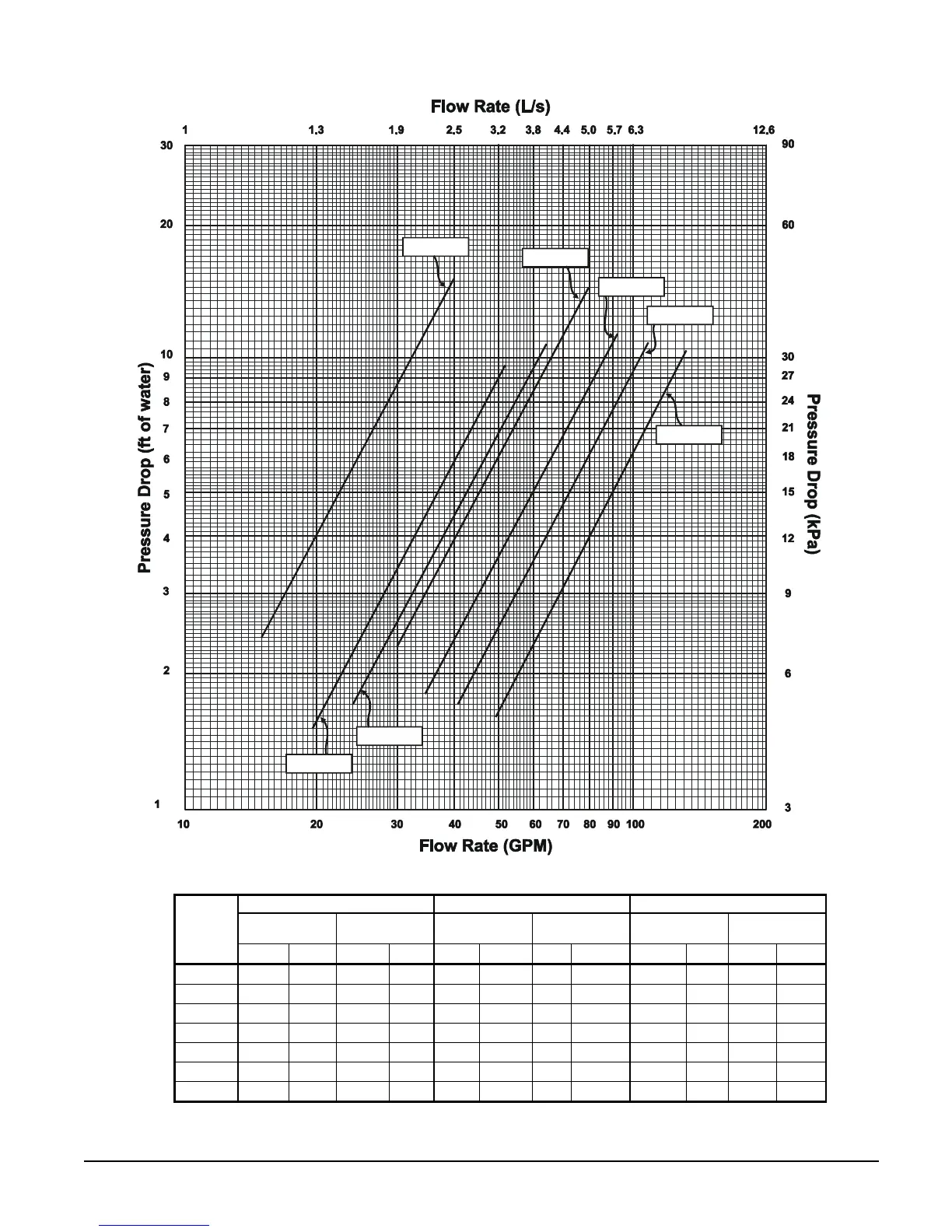

Figure 6, Evaporator Water Pressure Drop Curves
AGZ 010
AGZ 020
AGZ 013
AGZ 017
AGZ 025
AGZ 029
AGZ 034
Minimum Flow Nominal Flow Maximum Flow
Flow Rate
Pressure
Drop
Flow Rate
Pressure
Drop
Flow Rate
Pressure
Drop
AGZ
Model
gpm L/s ft. kPa gpm L/s ft. kPa gpm L/s ft. kPa
010
15.0 0.9 2.4 7.1 24.0 1.5 5.8 17.3 40.0 2.5 15.2 45.5
013
19.5 1.2 1.5 4.5 31.2 2.0 3.7 11.0 52.0 3.3 9.6 28.9
017
24.0 1.5 1.7 5.0 38.4 2.4 4.1 12.2 64.0 4.0 10.7 32.1
020
30.0 1.9 2.3 6.8 48.0 3.0 5.6 16.7 80.0 5.0 14.5 43.4
025
34.5 2.2 1.8 5.3 55.2 3.5 4.3 13.0 92.0 5.8 11.4 34.3
029
40.7 2.6 1.7 5.0 65.0 4.1 4.0 12.1 108.4 6.8 10.9 32.6
034
49.8 3.1 1.6 4.7 79.7 5.0 3.9 11.7 132.8 8.4 10.4 31.2
