6 AGZ 010B through 034B IOMM AGZB1
Vibration Isolators
Vibration isolators are recommended for all roof-mounted installations or wherever vibration
transmission is a consideration.
The unit should be initially placed on shims or blocks at the listed free height. When all
piping, wiring, flushing, charging, etc. is completed, the springs are adjusted upward to
loosen the blocks or shims that are then removed.
A rubber anti-skid pad is part of the isolator. Installation of spring isolators requires flexible
piping connections and at least three feet of flexible conduit to avoid straining the piping and
transmitting vibration and noise. These units cannot be bolted to isolators.
Table 1, Recommended Vibration Isolators
Neoprene-in-Shear
AGZ Model RF LF RB LB
Kit P/N
010, 013, 017 RP-3 Red RP-3 Red RP-3 Red RP-3 Red 350014858
020, 025, 029, 034 RP-3 Green RP-3 Green RP-3 Red RP-3 Red 350014857
Spring
AGZ Model RF LF RB LB
Kit P/N
010 CP 1-24 Brown CP 1-24 Brown CP 1-24 Brown CP 1-24 Brown 350014832
013, 017 CP 1-25 Red CP 1-25 Red CP 1-25 Red CP 1-25 Red 350014834
020, 025 CP1-26 Purple CP1-27 Orange CP 1-24 Brown CP 1-24 Brown 350014836
029 CP1-27 Orange CP1-27 Orange CP 1-25 Red CP 1-25 Red 350014838
034 CP1-27 Orange CP1-28 Green CP 1-25 Red CP 1-25 Red 350014840
Note: See dimension drawing for location of isolators
Corner Weights
Packaged Chiller
AGZ-
BS
RF LF RB LB
010A
279 275 267 263
013A
315 297 288 271
017A
344 323 316 297
020A
502 475 271 257
025A
531 496 301 282
029A
583 238 353 326
034A
779 761 369 361

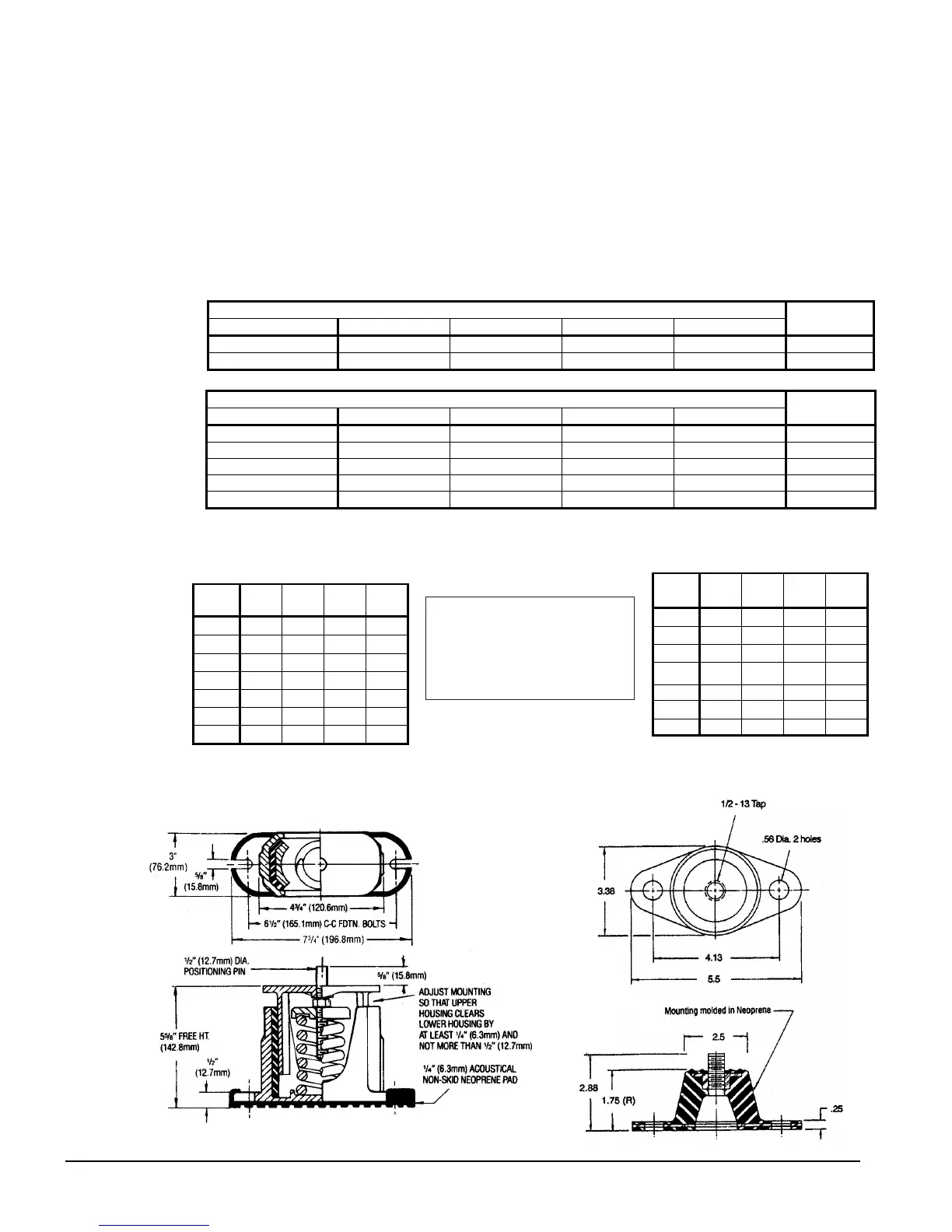

CP-1, Spring Isolator RP-3 Neoprene-in-Shear Isolator
R BI
L BI
R FI
L FI
Control
Panel
Remote Evaporator
AGZ-
BM
LF RF LB RB
010A
257 264 236 243
013A
290 286 246 243
017A
312 309 266 263
020A 446 443 241 240
025A
453 449 245 243
029A
488 487 296 295
034A
656 703 297 318
