30 AGZ 010B through 034B IOMM AGZB1
Remote Evaporators

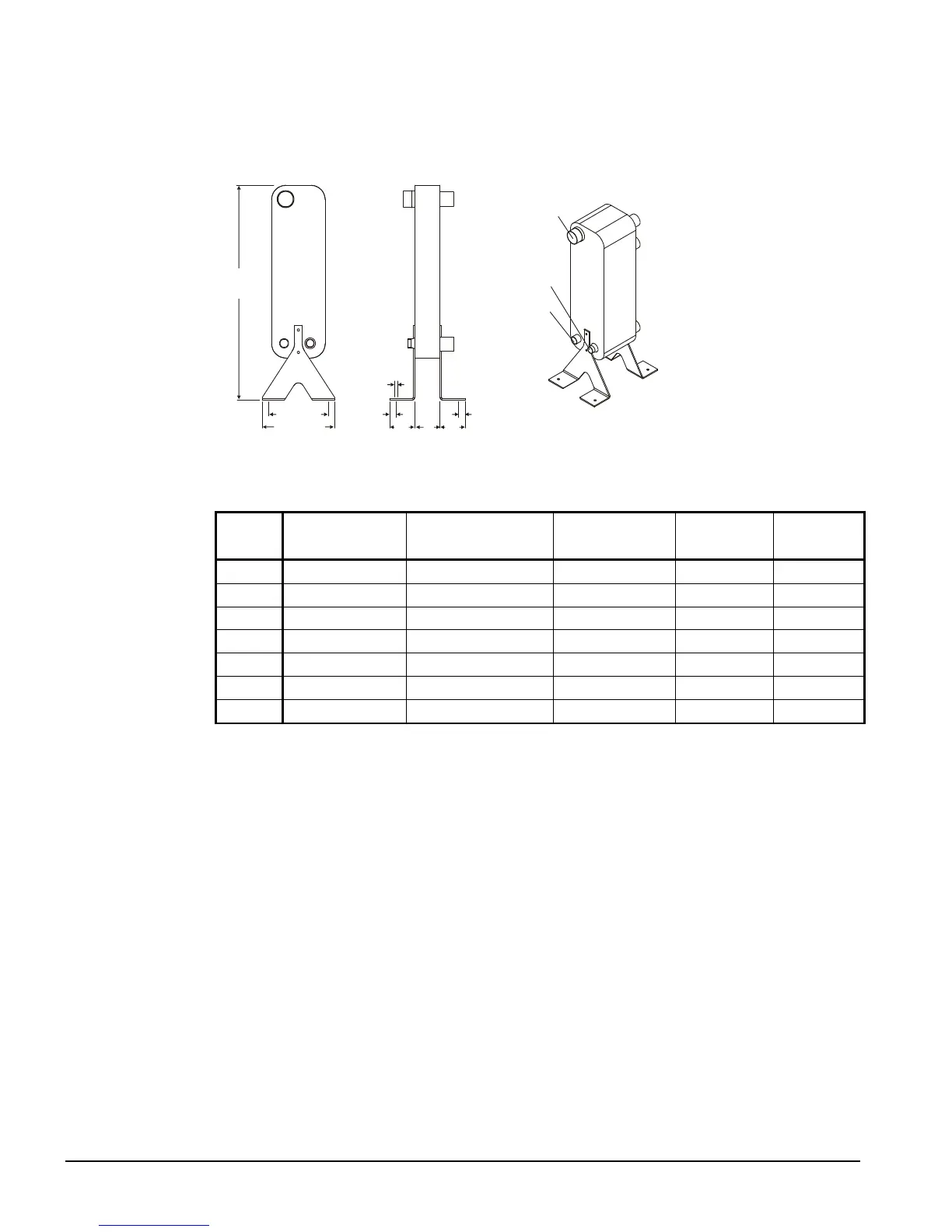

Figure 12, Remote Evaporators, for AGZ 010BM – 034BM
30.2
(767)
10.2 (260)
8.2 (208)
A
3.5
(90)
3.5
(90)
1.2
(30)
1.2
(30)
.35
(9)
W1
Inlet
W2
Outlet
Suction
Liquid
Temp Sensor
AGZ
Model
Liquid Line Conn.
Brazed, in (L).
Suction Line Conn.
Brazed, in (S).
Temp. Sensor
NPT, in. (TS)
Victaulic
Water Conn.
In. (W)
Dimension
“A”
in. (mm)
010
1.125 2.125 0.75 2.0 3.6 (91)
013
1.125 2.125 0.75 2.0 6.0 (153)
017
1.125 2.125 0.75 2.0 7.1 (181)
020
1.125 2.125 0.75 2.0 7.7 (195)
025
1.125 2.125 0.75 2.0 10.6 (271)
029
1.375 2.125 0.75 2.0 13,8 (351)
034
1.375 2.125 0.75 2.0 19.0 (483)
