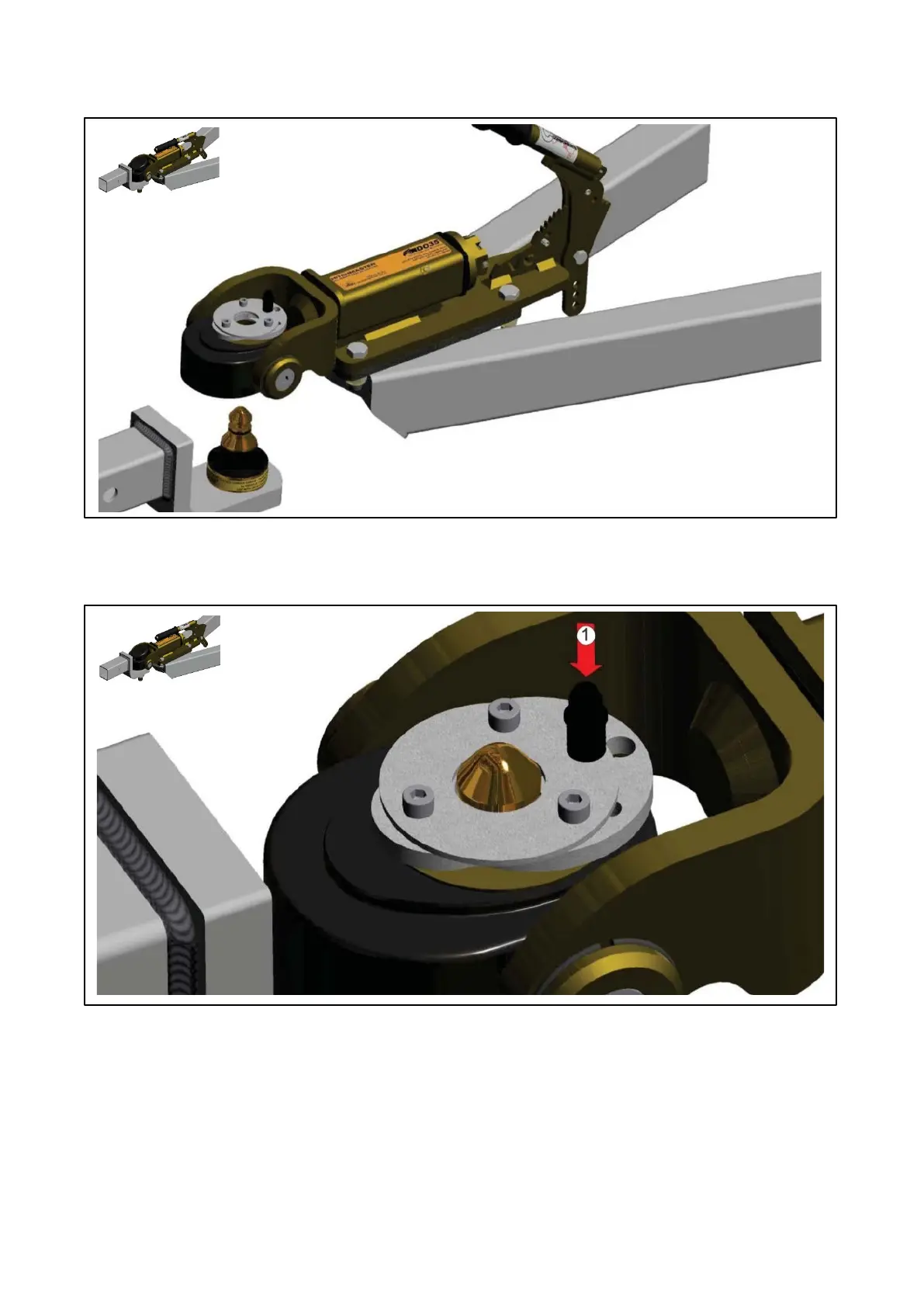

STEP 2
Offer up the tow pin to the coupling making sure the tow pin cover is removed and there is no visible debris
on it. Locking plate should be in unlocked posion as shown. Lower the coupling onto the tow pin.
STEP 3
Make sure the tow pin is seated inside the universal and the tow pin top is scking out of the locking
mechanism (see below). Press the buon (1) to release the locking mechanism there will be an audible
locking noise at which point the mechanism will return to the inial posion as shown in step 1. Verify the
pin is correctly through the mechanism and assemble the cap. If the cap will not fit check the locking
mechanism is in the correct locked orientaon.
