January 2024Section 11 - Transport and Lifting Instructions

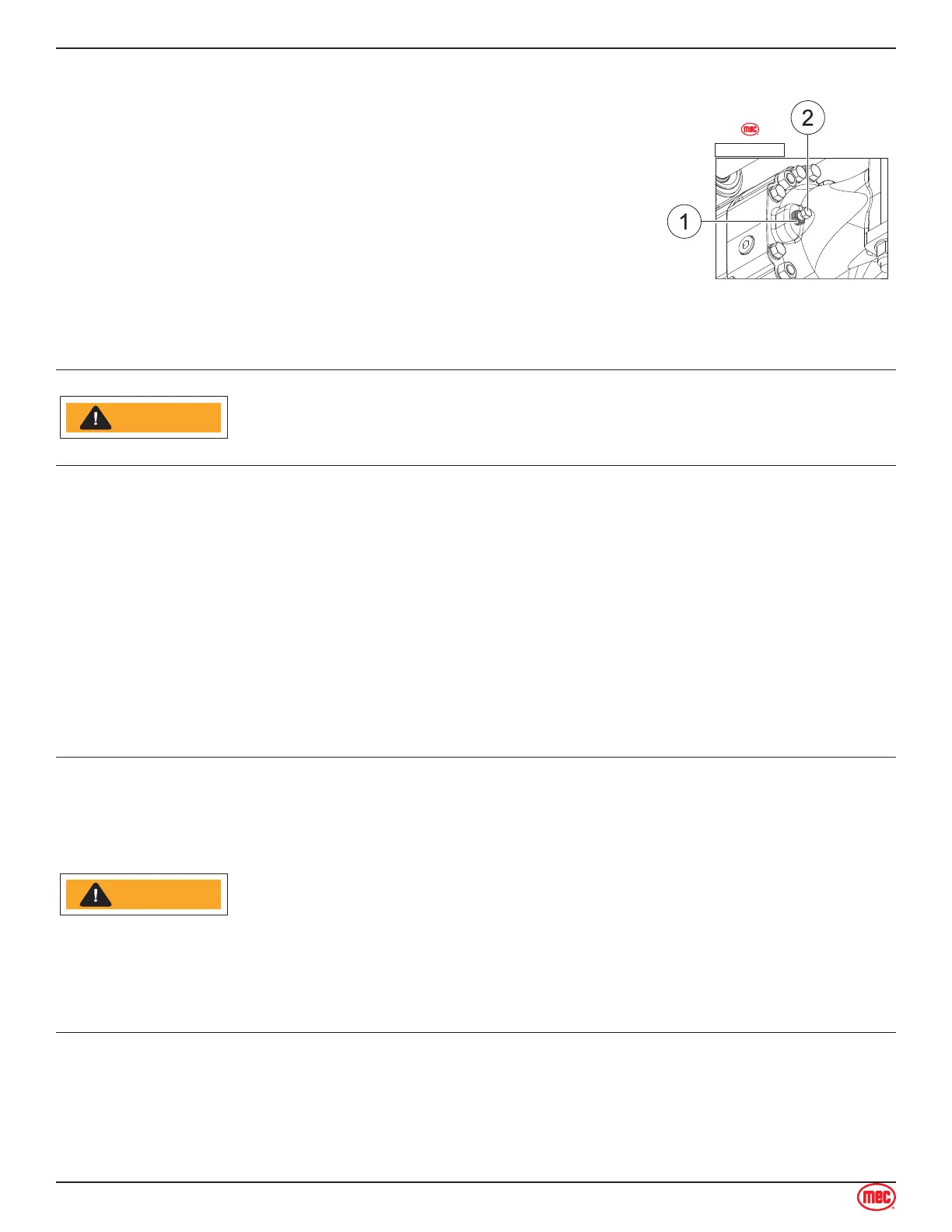

Brake Release Procedure
Unscrew lock nut 1 of power screw 2. Tighten the power screw to t
ush to disengage the brake. Repeat the operation for the other three
screws on the same axle, two screws are on the front and back of the
axle. And then repeat the operation for front axle.
Remove the hoses from the port A and B of the driven pump and then
connect two ends of the hoses removed together after completing the
brake release procedure.
ART_6102
ILLUSTRATION No.
Make sure to reapply the brakes before performing any operation! To reapply the brakes,
follow the instructions in reverse!
NOTICECAUTION
CAUTIONWARNING
ART_6091
MAKE SURE THE CABLE HAS A NOMINAL CARRYING CAPACITY 1.5
TIMES THE WEIGHT OF THE VEHICLE TO BE TOWED! SEE SERIAL
NUMBER PLATE FOR MACHINE WEIGHT!
Have an operator operate on the machine to be towed to control the moving and steering. An
observer must stand in a safe position to monitor operations. The observer must not stand on the
vehicle being towed.
Tighten the tow cable slowly. Avoid sudden movements to avoid overload on the cable. Keep the
angle between the machine and the towing cable minimum. It must not exceed 30°!.
Driving or Winching onto or o󰀨 of a Transport Vehicle
Before loading the machine, orient the turntable so that the platform is over the non-steering wheels
so that the Rotation Lock may be engaged later in the loading process.
NOTICECAUTION
CAUTIONWARNING
ART_6091
ONLY properly trained and qualied operators shall load and unload this
machine.
Read and understand all safety, control, and operating information found
on the machine and in this manual before operating the machine.
Whether winching or driving the machine on to a truck or trailer, always
check the area for dangerous situations before moving the machine.
If driving the machine, always use a second person acting as a spotter to
make sure the person loading the machine avoids dangerous situations.
Driving
• Turn the Base Key Switch to PLATFORM. Check that the Emergency Stop Switch is reset by
turning it clockwise.
• Enter the platform and reset the Platform Emergency Stop Switch.
• Test platform control functions.
