Monitor User Interface
Please note:
The position of the icons in live view can be arranged to your preferred location. Simply swipe the icons to the
left or the right for position change.
If you do not wish to see the icons on your monitor, you can easily swipe them out of the visible monitor area.
Swipe the icons with one nger, when using a touchscreen monitor.
Capture Photo
Record Video Start/Stop
Control Icon and
Review last study
Change Input Signal
USB storage active.
Remaining time/storage space
Network storage active.
Remaining time/storage space
Information page

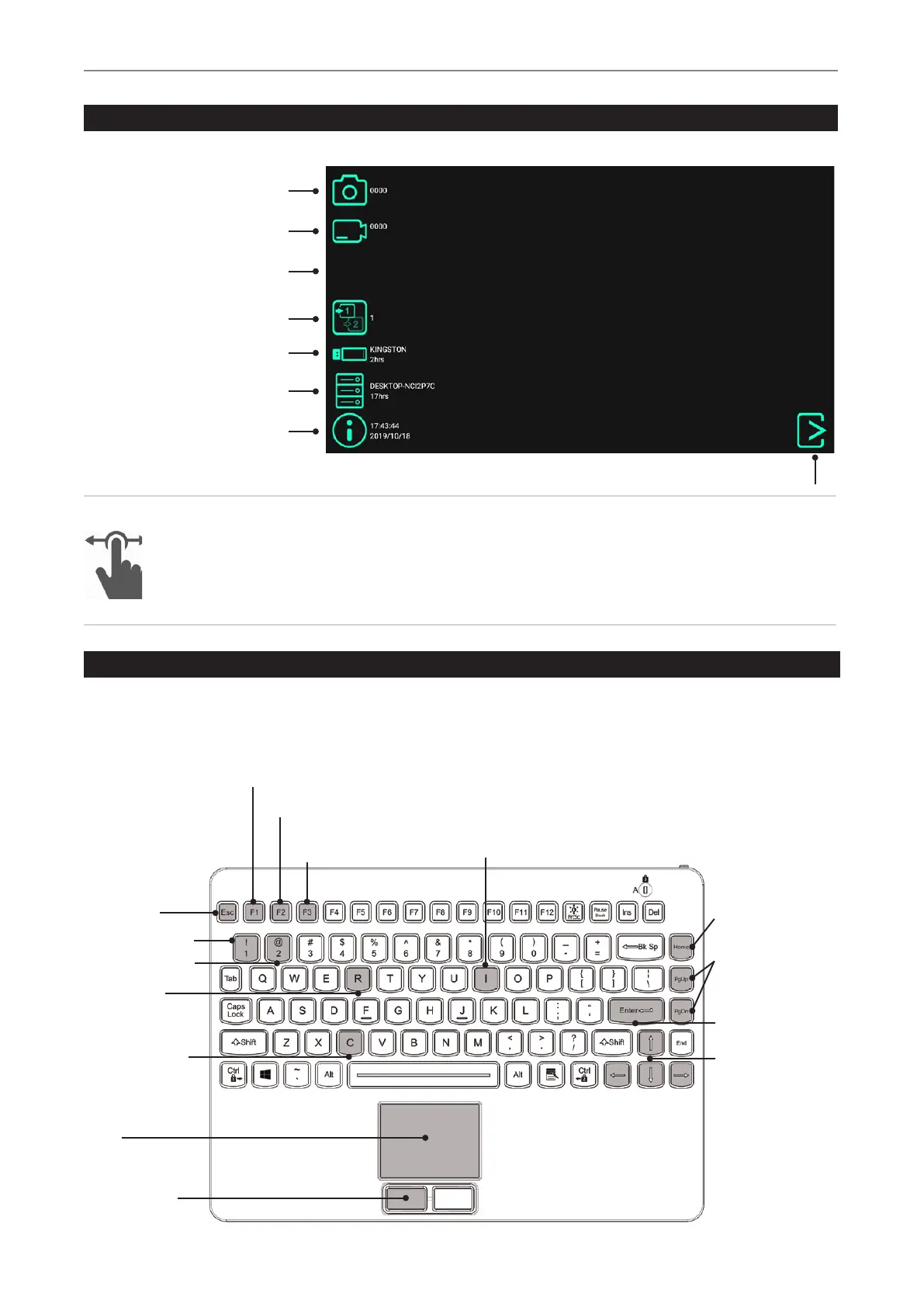

MVR Lite displays easy-to-use icons. Icons can be tapped directly on a connected touchscreen.
MVR Lite live view screen.
End of study
USB Keyboard with Integrated Trackpad
A USB keyboard with integrated trackpad can serve as an alternative to a touchscreen monitor. The integrated trackpad works like a
mouse with double-click function.
Please note the short cut key functions to operate the user interface of MVR Lite:
F1 = Take picture
F2 = Start / Stop video recording
- Hold for 3 sec = Pause
F3 =
New study / End of study
i = Information screen
Esc = Back
(in Settings)
1 = Input 1 (select)
2 = Input 2 (select)
r = Review in
live mode
c = Change input
(toggle input 1 / 2)
Trackpad works
like a mouse to
control the cursor.
Double-click =
Enter / selection
Enter / selecion
Home = Change input
(toggle input 1 / 2)
PgUp or PgDn =
Information screen in
open study
Enter = Select,
Video Pause on/off
Arrow keys to
control the cursor
or to move between
elds in Settings
