MVR Lite User Guide - English

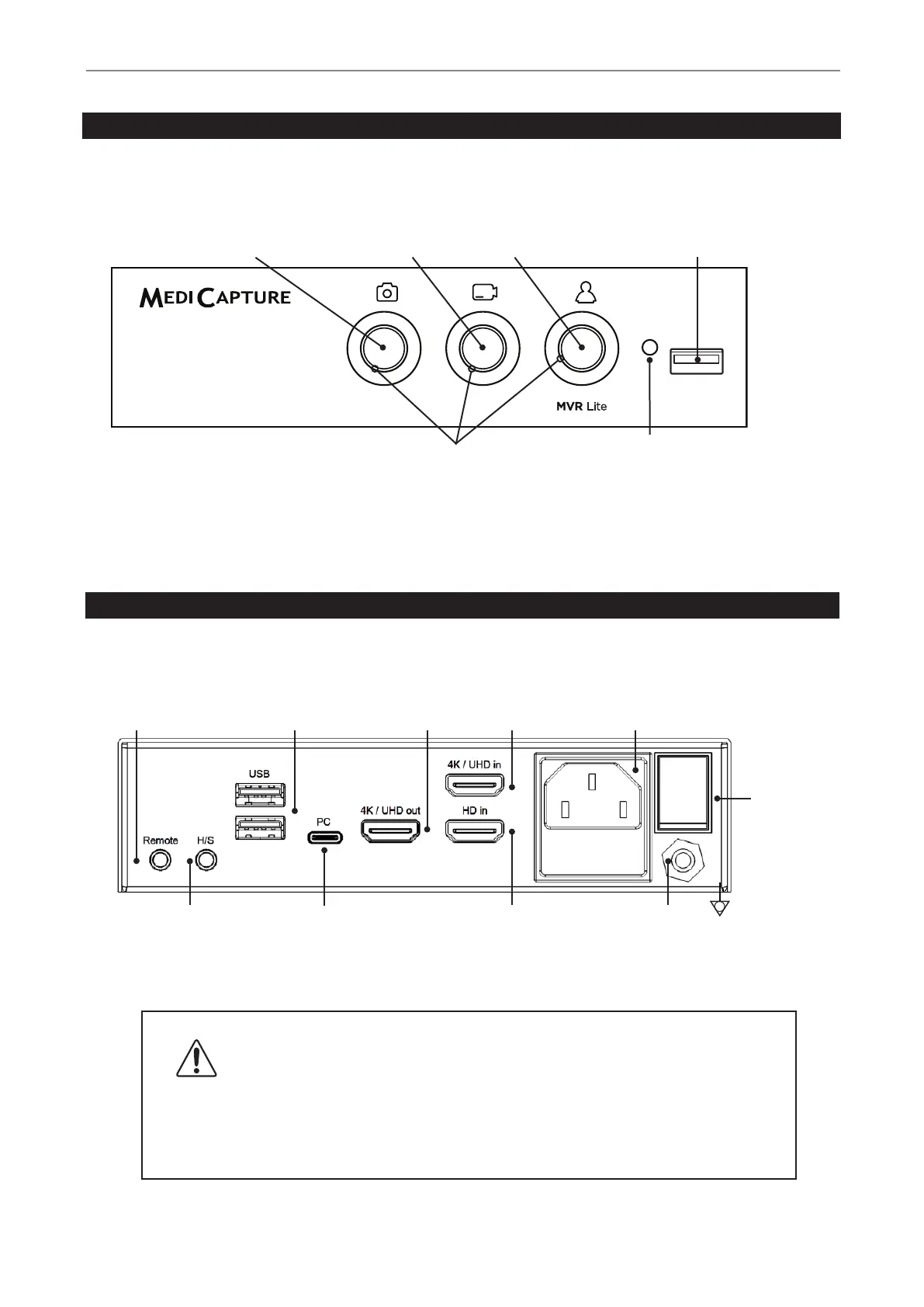

Front Panel
The unit is for exclusive interconnection with IEC60601 certied equipment in the patient
environment and IEC60XXX certied equipment outside of the patient environment.
A certied power supply cord set must be used with this equipment. The relevant national installation and/or
equipment regulations shall be considered. The power supply cord shall be not less robust than an ordinary
tough rubber-sheathed exible cord according to IEC 60245 (designation 53) or ordinary polyvinyl chloride
sheathed exible cord according to IEC 60227 (designation 53).
Front Panel
Capture Photo button
Captures the image on the
monitor to storage(s).
New Patient button
Press before each patient study. Opens
a new folder / new study to store the
patient’s images and videos. End of study.
Closes the active recording study.
USB Drive Connector
Connect a USB drive here.
Images and videos are
captured to the drive.
Record Video button
Records video clips of
what is displayed on
monitor. Press once to start
recording and again to stop.
IR Receiver
Light Rings
Flash green when ready for recording or when a new study can be created.
Green LED light ring indicates which function is available at the moment.
Back Panel
Footswitch /
Remote cable
Headset /
Microphone
USB connectors (2)
for optional accessories
PC connector
(USB type-C)
Service interface
Equipotential
Pole
HDMI Output
Output is for
connection to
a monitor or a
touchscreen monitor.
HDMI Input 1
for a HD camera /
MVC Pro with HDMI output
(4K camera optional)
HDMI Input 2
for an HD camera with
HDMI connector
(DVI with adapter)
Power connector
Use supplied power cable to
connect 100V-240V outlet.
l=On
(connection to power
supply, mains)
O=Off
(no connection
to power supply,
mains)
Power Switch
