Imaging System Interface
14 - 9

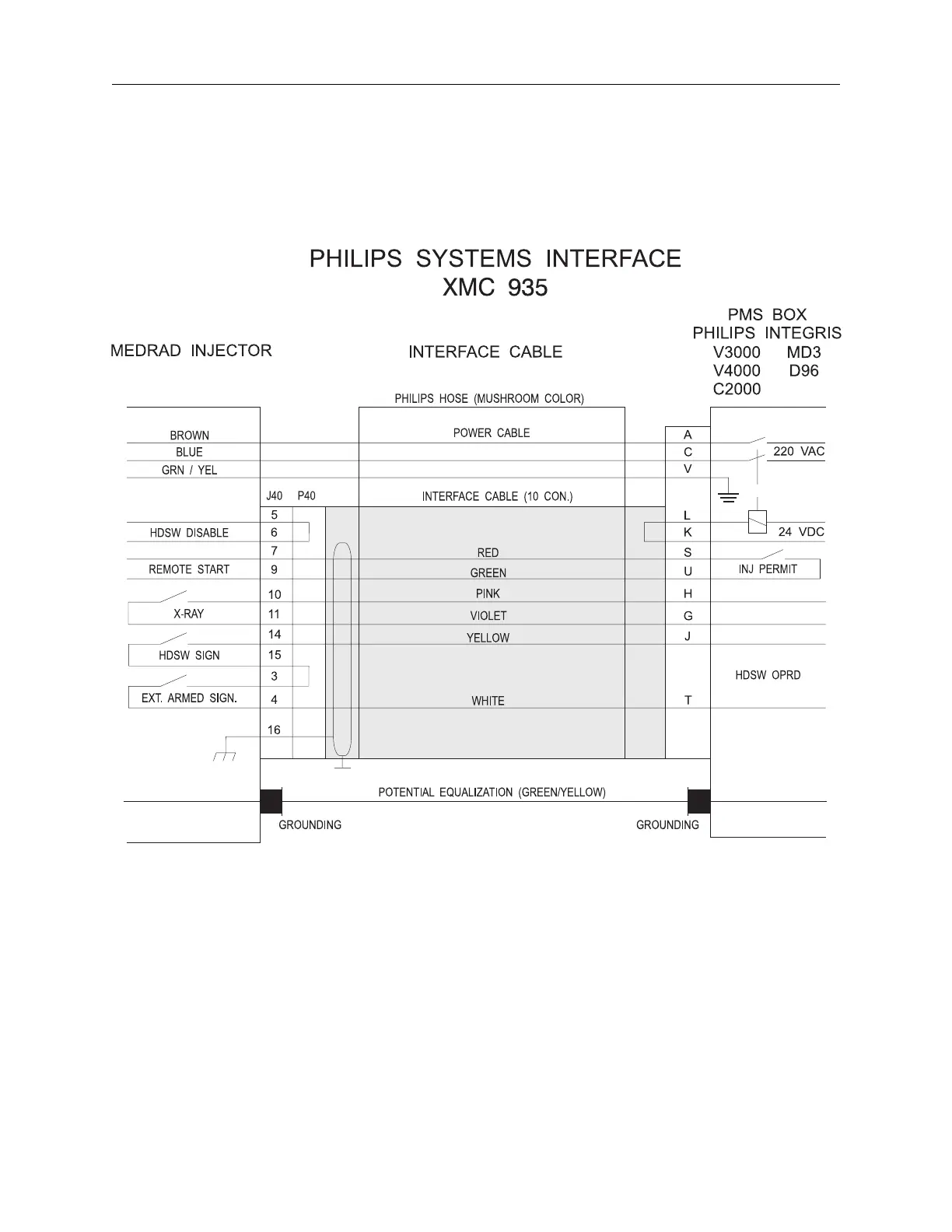

Figure 14.4: Schematic: Phillips Interface XMC 935
The Phillips table can be fitted with an adaptor (MEDRAD catalog number PCK 100) which allows
the Injector Head to be mounted directly to the table. Contact MEDRAD for availability.
