Mark V ProVis Injection System
15 - 2
Service Access Card
The Service Access Card is inserted in the spare slot on the right side of
the Console, providing easy access to test points for troubleshooting and
testing. All signals are clearly marked on the card next to the test points.

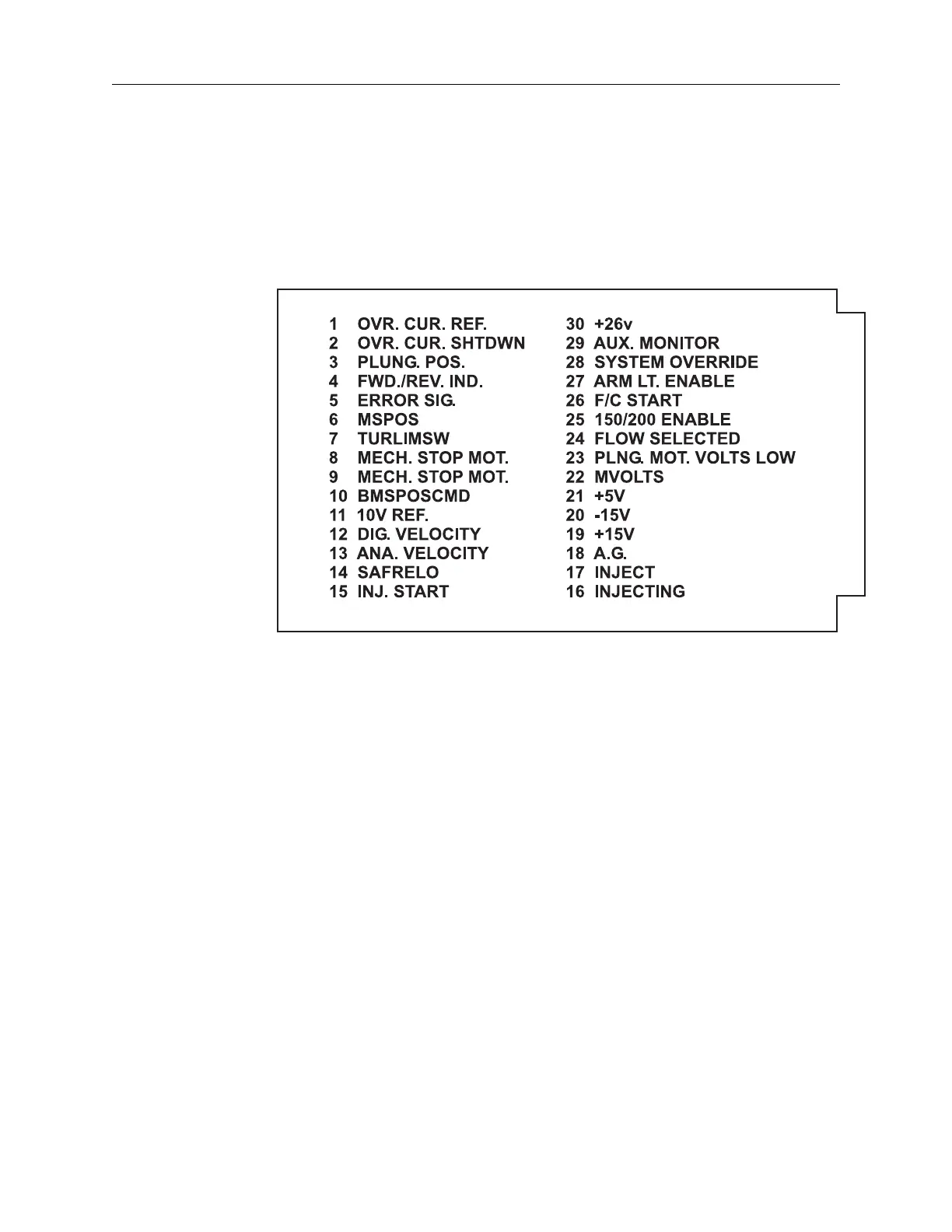

Figure 15.1: Test Points on Service Access Card
