10

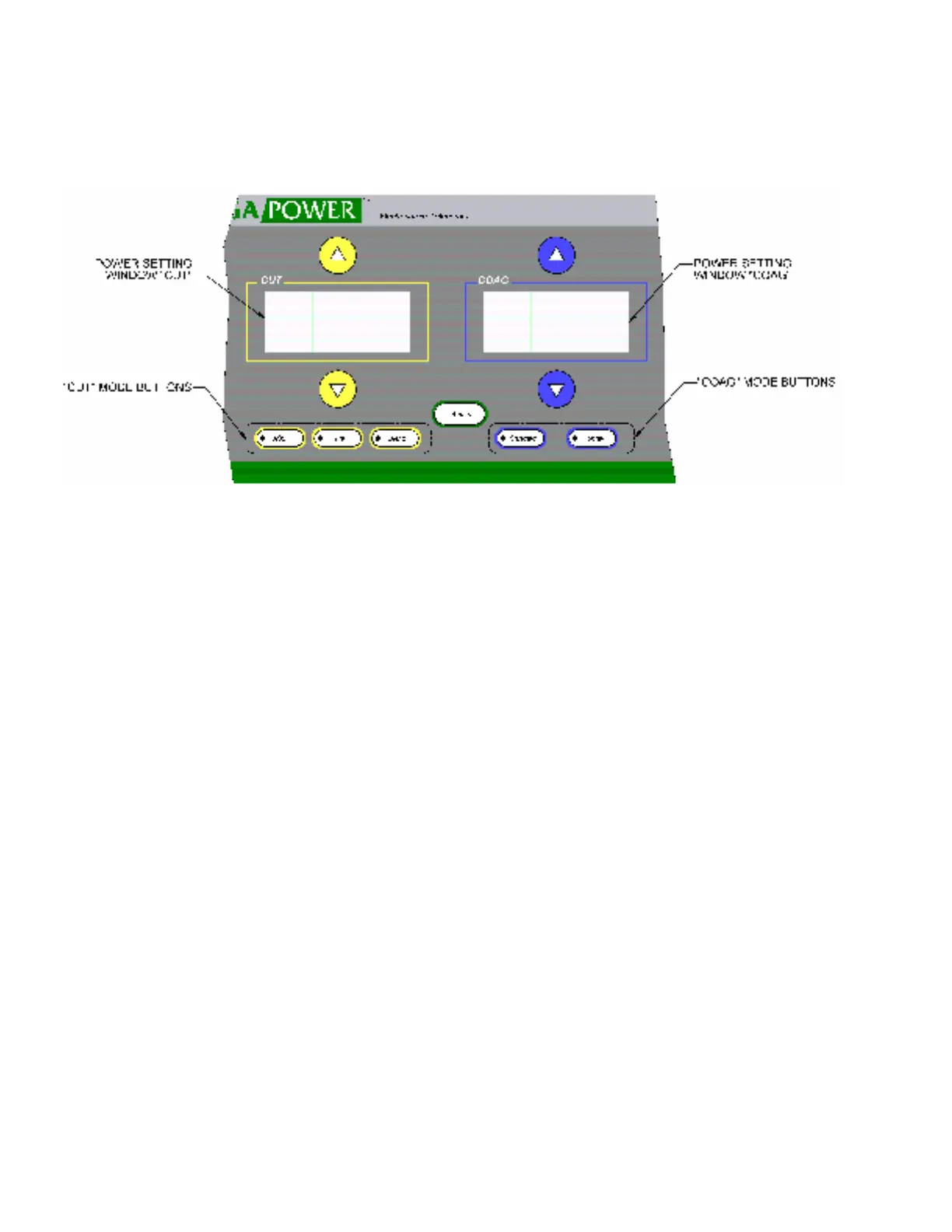

Modes: Select the proper mode for monopolar “CUT” and “COAG” by depressing the
appropriate mode key (figure 5). The indicator light on that key will illuminate when the
mode has been selected.
Figure 5.
Activating the Generator: Monopolar accessories attached to the monopolar hand
switching receptacles may be activated by depressing either the “CUT” or “COAG” keys
on the pencil, or foot pedals. Depressing either the “CUT” or “COAG” foot pedals will
deliver power to the device attached to that channel. Only one active device may be
plugged into each channel at a time (i.e. either the 3-prong pencil cord, or phone plug
style cord).
Note: Only one monopolar accessory can be activated at a time.
Depressing the single footswitch of the bipolar foot control will activate bipolar
instruments attached to the bipolar receptacles. For bipolar hand switching devices,
closing the tips of the bipolar forceps will engage the switch on the instrument and will
activate the device.
Note: The cut or coag display will become brighter when activated, while the unused
display will dim.
Cleaning: Disconnect the power cord from the wall outlet prior to cleaning the generator.
Use a mild detergent, or disinfectant to clean the generator. Abrasive cleaners will
scratch the displays. Do not allow fluids to drain inside the generator.
