Step 9 – Removal/Replacement of the footswitch board

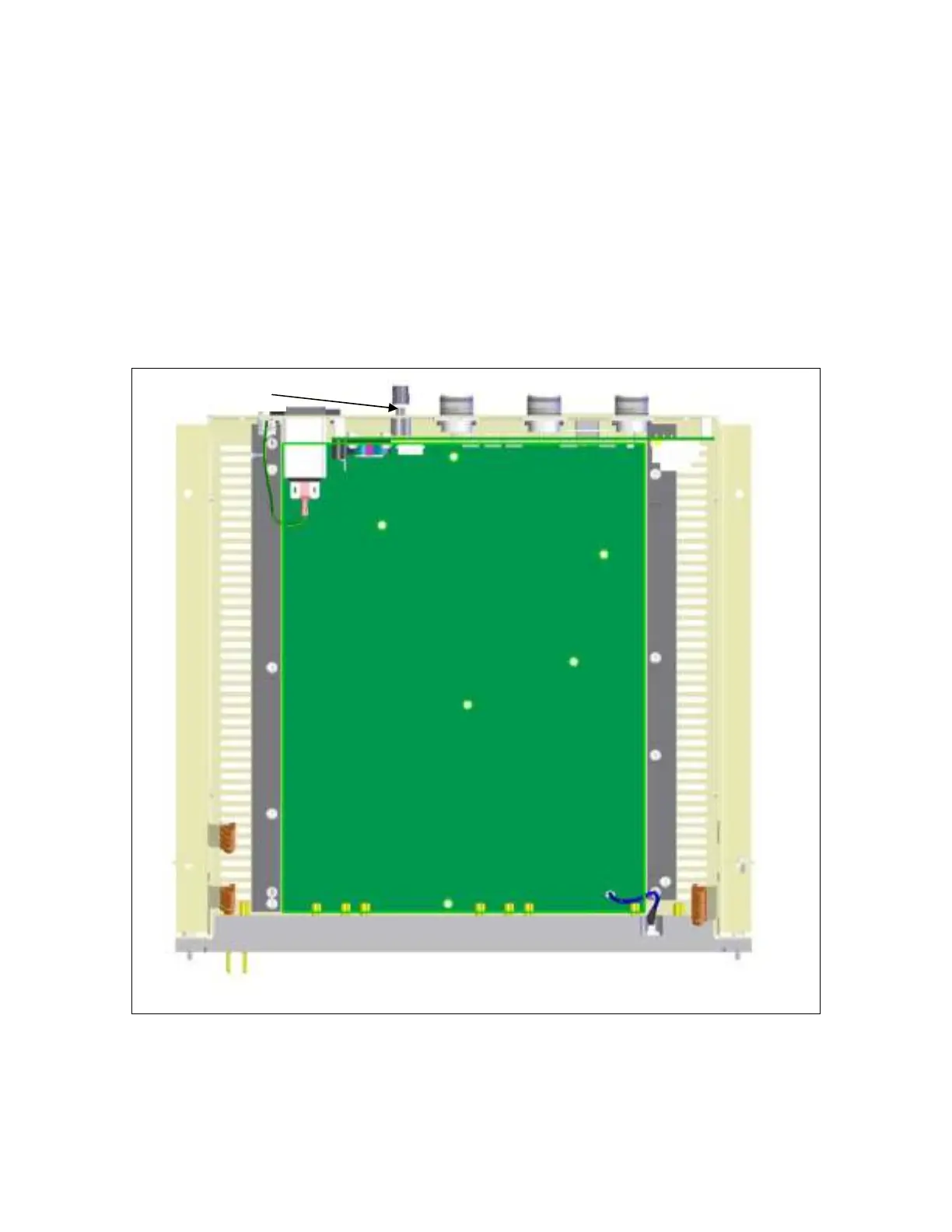

Loosen the set screw on the volume knob (item A) and remove the volume knob.
Remove the nut securing the volume control on the other side of the chassis.
Remove six (6) #4-40 screws and two (2) #6-32 screws to remove the footswitch board
(item B. See diagram on next page) from the chassis.
Repeat steps in reverse order to install the footswitch board.
