Megger BITE5 User Manual

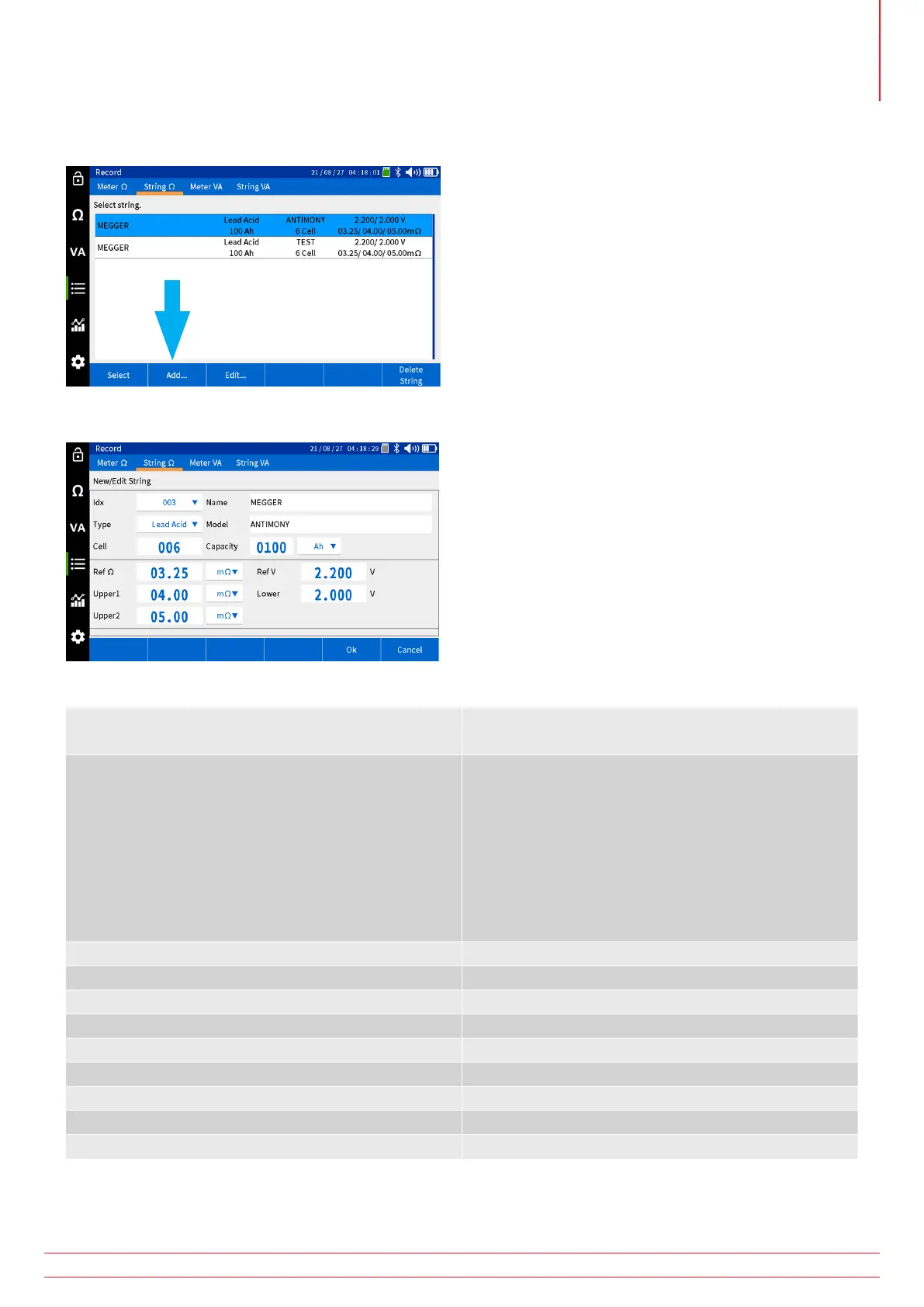

Select “Add…”
This will open the String Configuration screen.
Idx Sets an index number for the string in the BITE5. This is
set automatically. It can be set manually if desired
Type Select the type of battery to be tested:
Lead acid
Ni-CD
Ni-MH
Li-ion
Li-poly
Cell Cell
Name Name of string
Model Model number of batteries
Capacity Battery capacity in Ah or mAh
Ref Ω Baseline reference value
Warning Warning upper ohmic limit
Alarm Alarm upper ohmic limit
Ref V Cell float voltage
Lower Low voltage limit
When the setting are complete, select OK to save the string configuration.
