Performing an impedance test
In the ohm mode, the BITE5 will record and save voltages, impedance values and temperature. These measurements
can be performed on individual cells or sequentially on battery strings. These measurements can be taken on any
individual battery up to 200 V DC.
Operation:
Measuring and saving individual battery measurements.
Connect the impedance leads to the input connector of the BITE5.

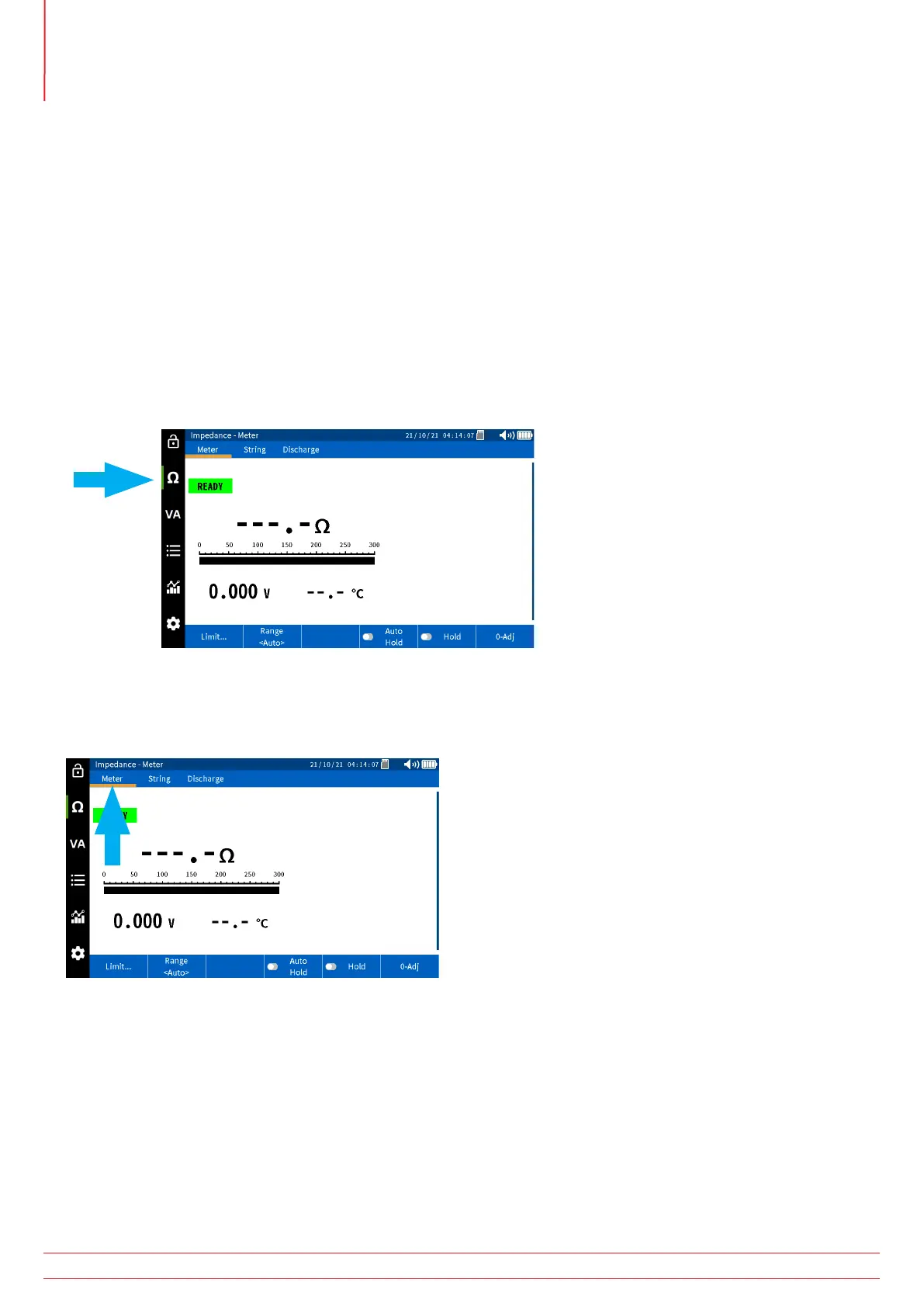

On the BITE5 select “Ω”.
Select “Meter”.
www.megger.com
BITE5
16
Performing an impedance test
