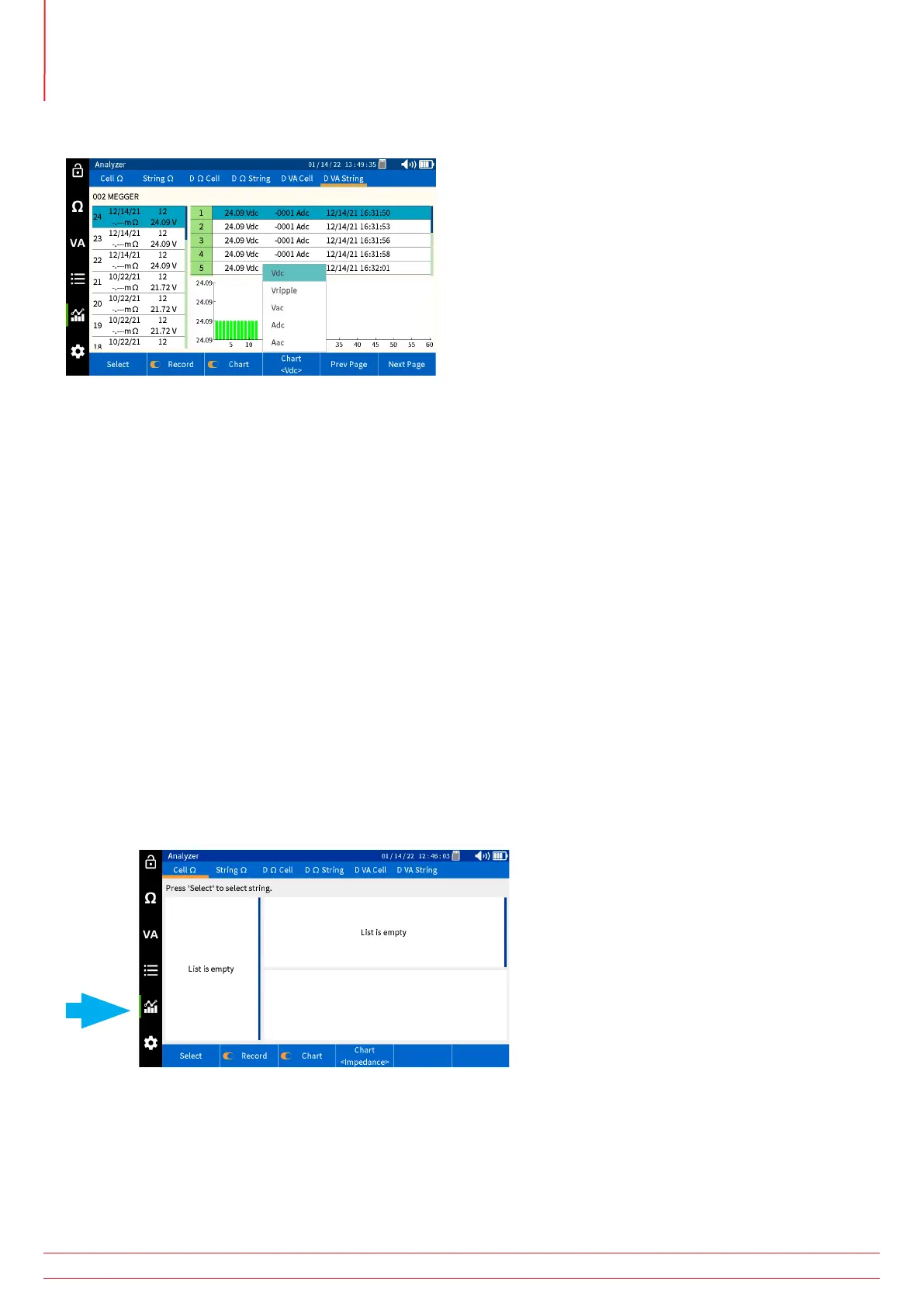

Select “Chart” to change the parameter being trended.
Trending recorded impedance - Discharge data:
The BITE5 will allow tending for the following:
Discharge cell voltage trending – Trends every impedance value of an individual cell.
Discharge string voltage trending – Trends the impedance of all cells in a string for a given test.
Discharge cell impedance trending – Trends every voltage value of an individual cell.
Discharge string impedance trending – Trends the voltage of all cells in a string for a given test.
Discharge cell temperature trending – Trends every temperature value of an individual cell.
Discharge string temperature trending – Trends the temperature of all cells in a string for a given test.
Operation:
Trending individual cell data
On the BITE5 select the chart ICON.
www.megger.com
BITE5
40
Trending recorded impedance - discharge data
