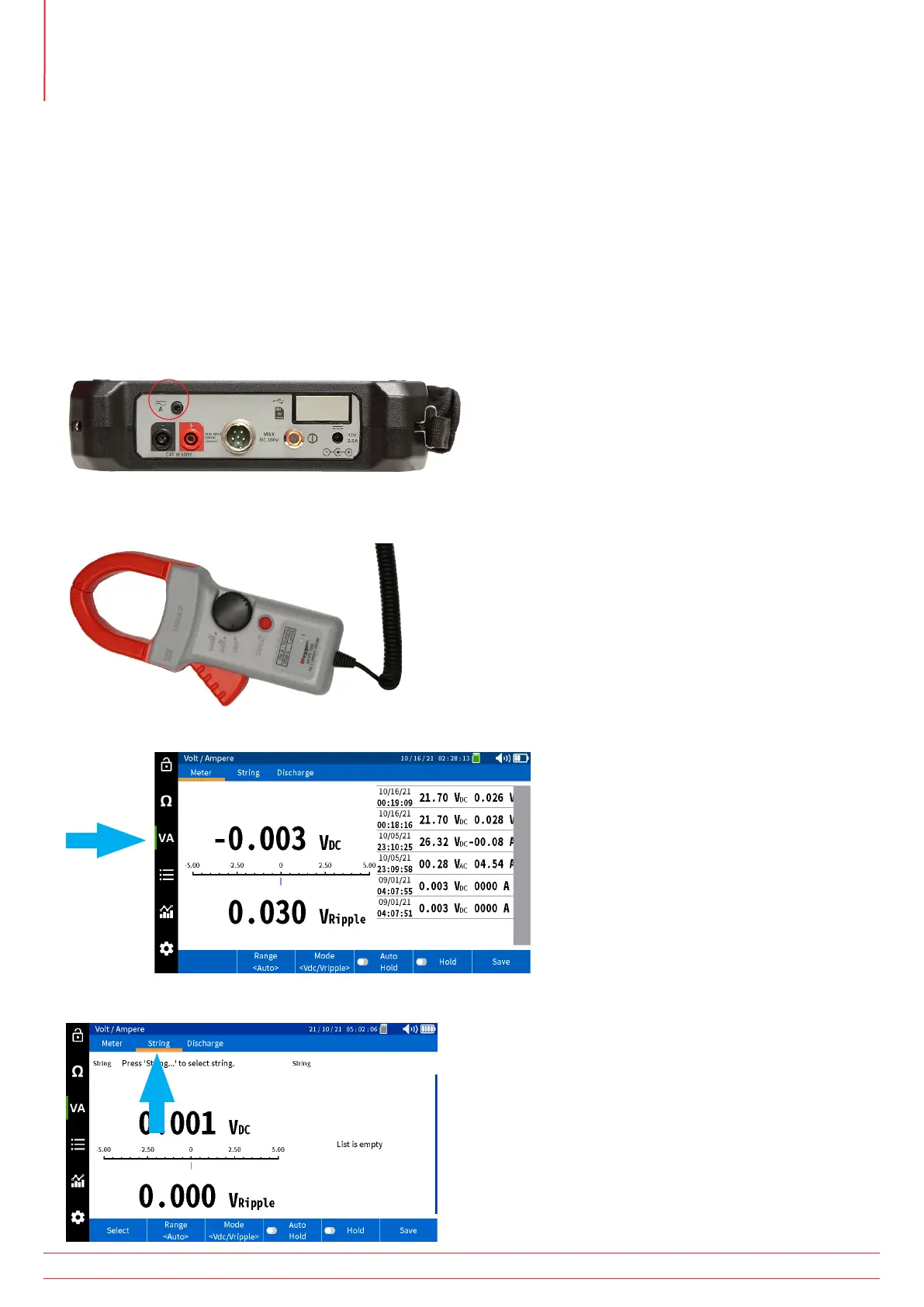

Measuring and battery string voltages and currents
The BITE5 can be used to measure and record the DC voltage across the string, the ripple voltage, the DC float current,
and the AC Ripple Current flowing through the string. These values will be saved to the selected string data and will
have a date and time stamp.
Operation:
Connect the voltage leads to voltage inputs of the BITE5.
If measuring current, then plug the CT into the BITE5 CT input.
Select the desired current range on the CT.
On the BITE5 select “VA”.
Select “String”.
www.megger.com
BITE5
24
Measuring and battery string voltages and currents
