Megger BITE5 - Performing an Impedance Test on a Battery String

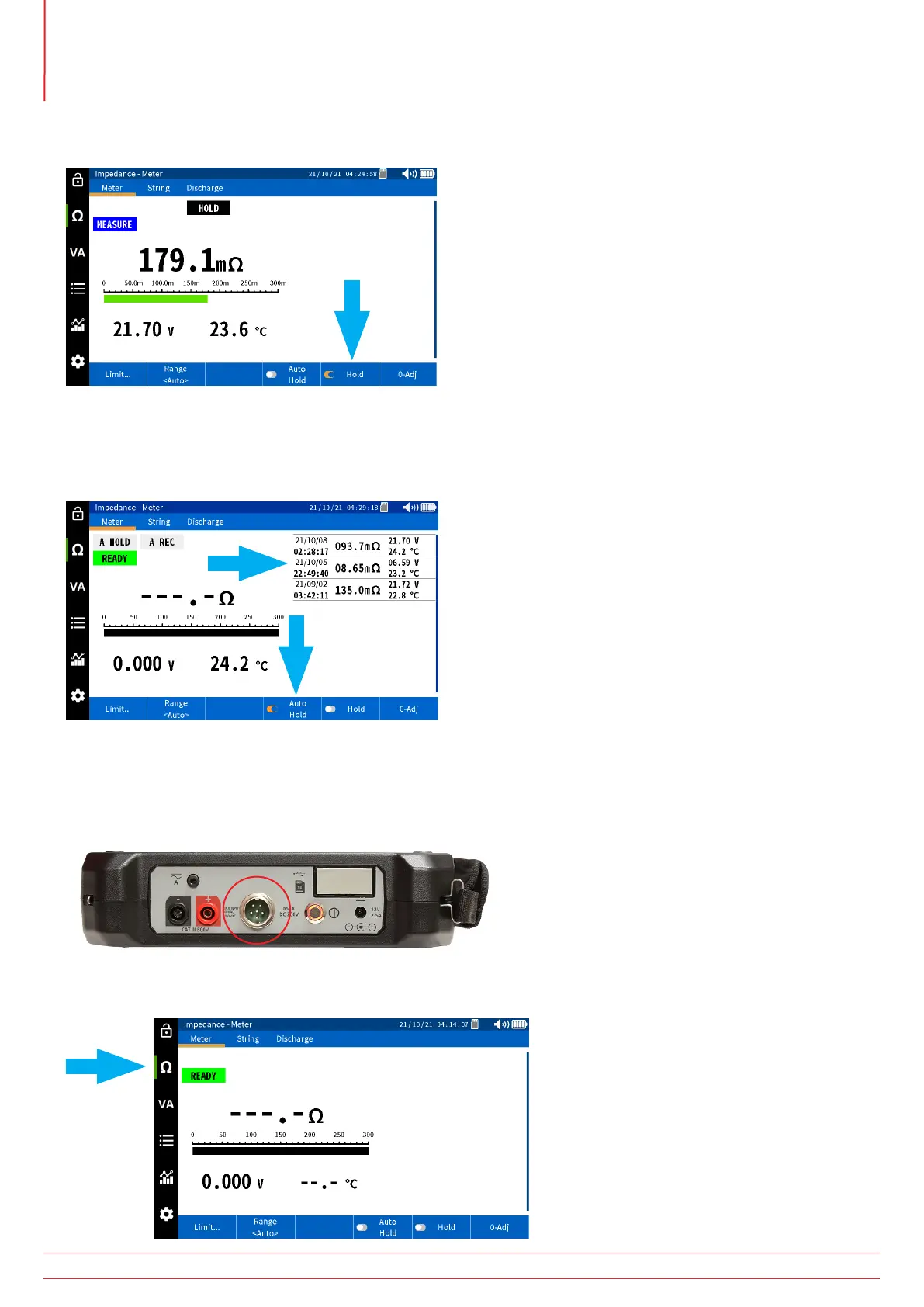

Press “Hold” to freeze the value on the screen.
Automatic Saving of Values
Select “Auto Hold” and the BITE5 will automatically save any measurement with a date and time stamp.
Performing an impedance test on a battery string.
Connect the impedance leads to the input connector of the BITE5.
On the BITE5 select “Ω”.
www.megger.com
BITE5
18
Performing an impedance test on a battery string
