Measuring and recording solar cell voltages and currents
In the VA/METER mode, the BITE5 will record and save voltages and currents with a date and time stamp. These
measurements can include solar cells, combiner boxes, DC or AC panels, and UPS output or input voltages. The BITE5
will save values for any voltage up to 1000 V DC and 600 V AC.

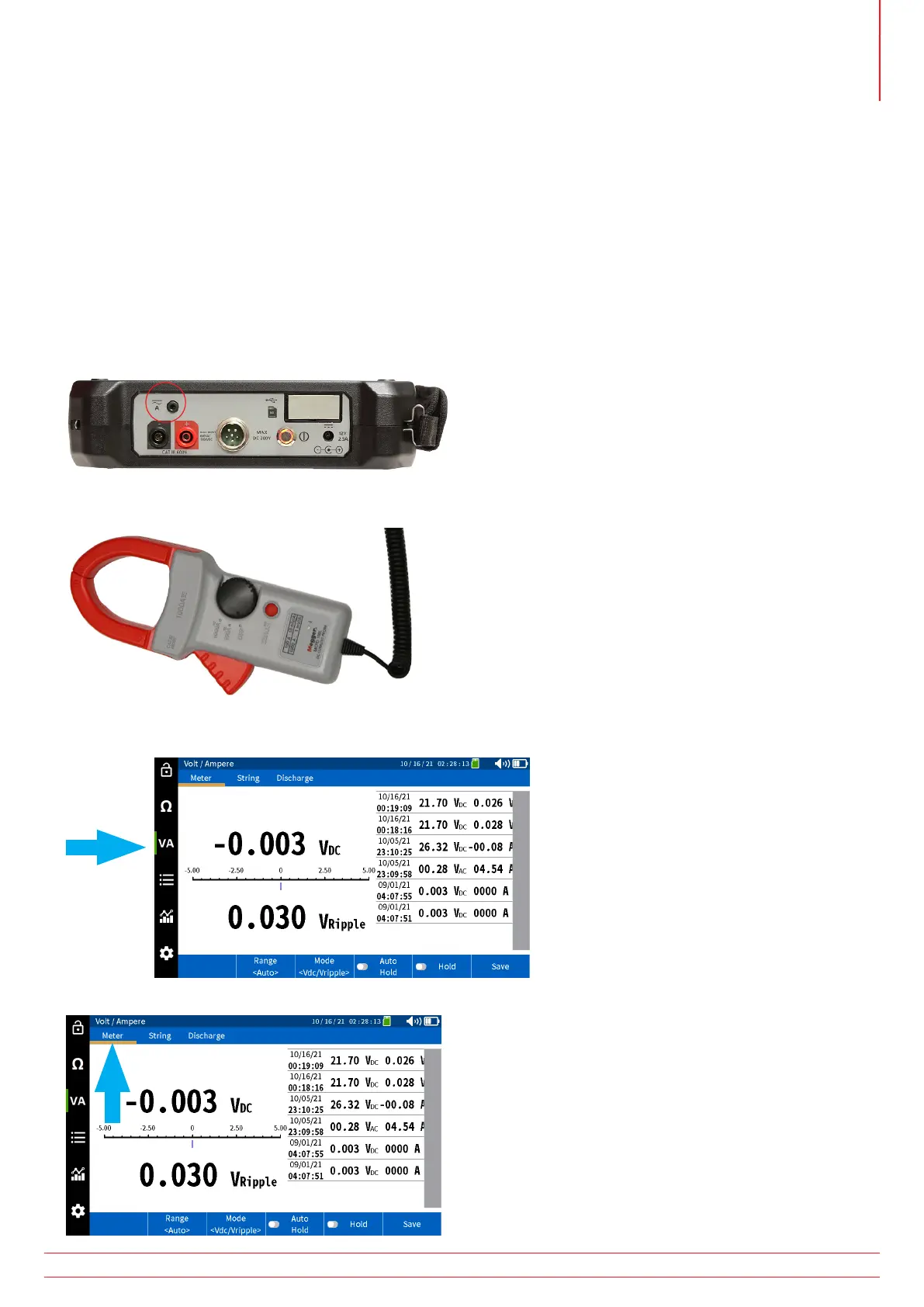

Operation:
Connect the voltage leads to voltage inputs of the BITE5.
If measuring current, then plug the CT into the BITE5 CT input.
Select the desired current range on the CT.
On the BITE5 select “VA”.
Select “Meter”.
