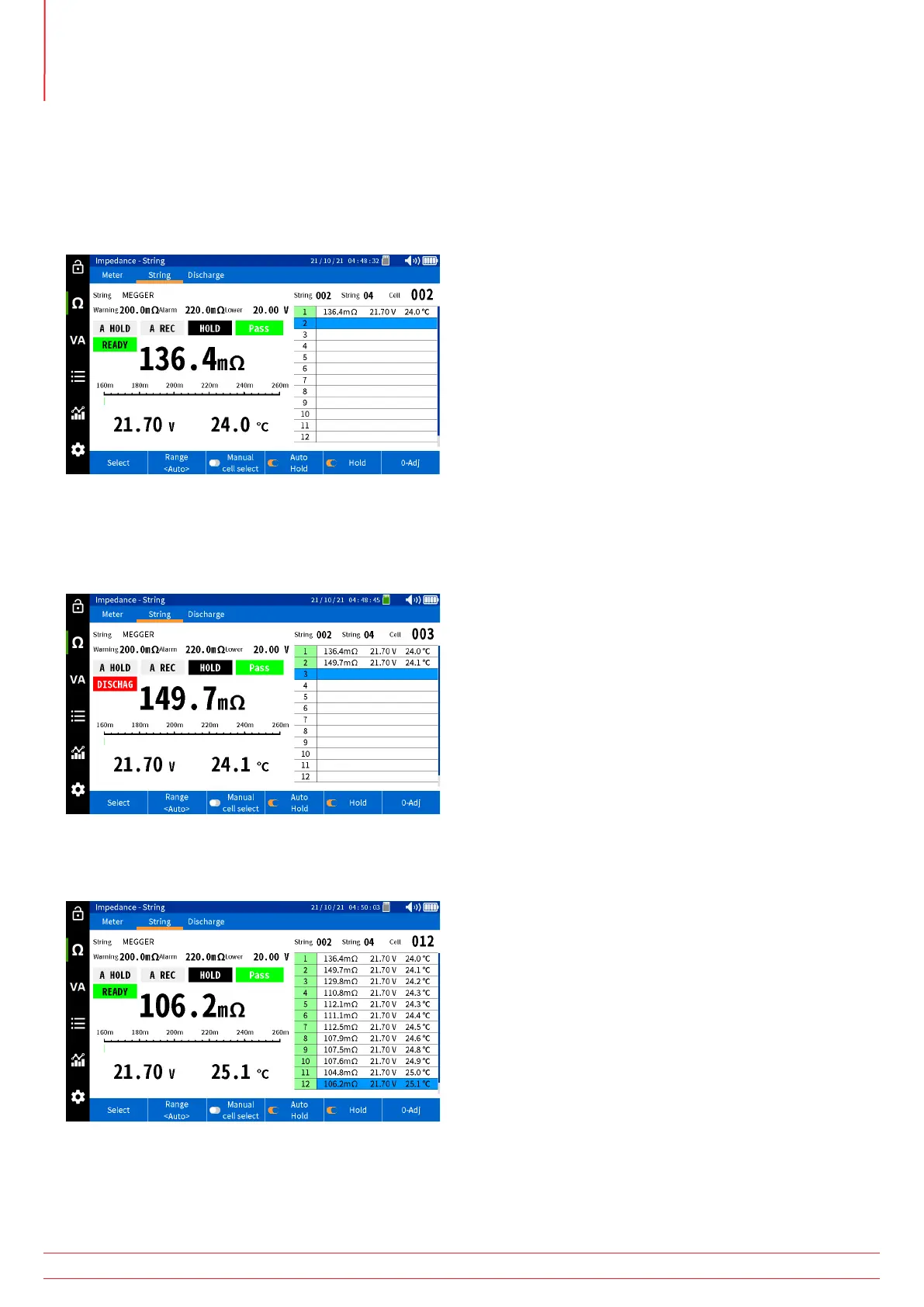

Start testing by placing the probes on the first cell in the string.
The BITE5 will beep when the measurement is complete and save the cell voltage, cell impedance, and cell temperature
to memory automatically.
The results will be displayed on the screen.
Move to the next battery in the string and take a measurement.
The recorded values will be displayed on the screen.
Continue taking a measurement of each cell in sequence on the string until you reach the last cell in the string.
www.megger.com
BITE5
20
Performing an impedance test on a battery string.
