Megger BITE5 User Manual

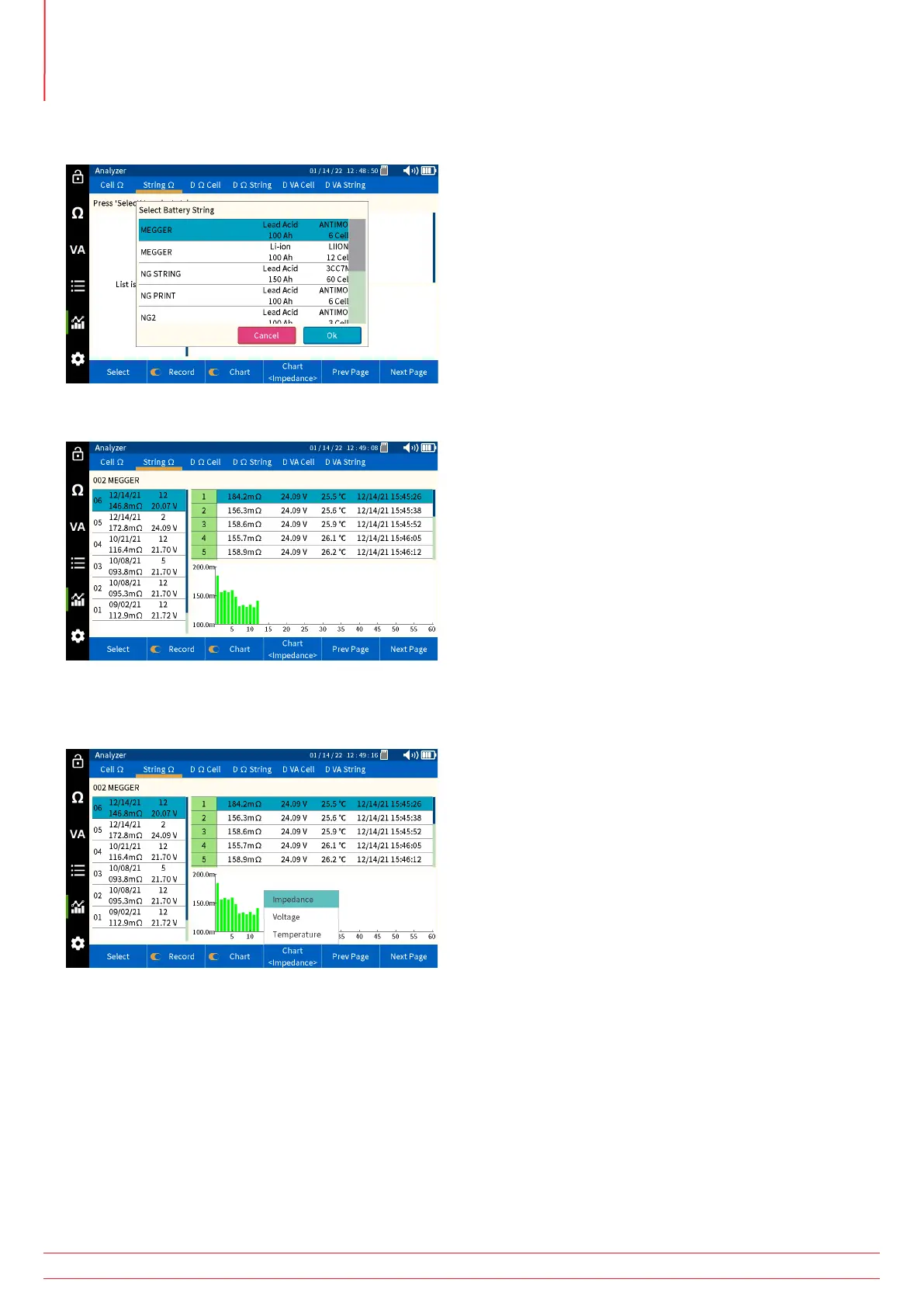

Select string, then press “OK”.
Select the desired test to trend in the left column.
Select “Chart” to change the parameter being trended.
Trending recorded VA discharge data:
The BITE5 will allow trending for the following:
Discharge VA cell voltage trending – Trends every impedance value of an individual cell.
Discharge VA string voltage trending – Trends the impedance of all cells in a string for a given test.
Discharge VA cell current trending – Trends every voltage value of an individual cell.
Discharge VA string current trending – Trends the voltage of all cells in a string for a given test.
www.megger.com
BITE5
36
Trending recorded VA discharge data
