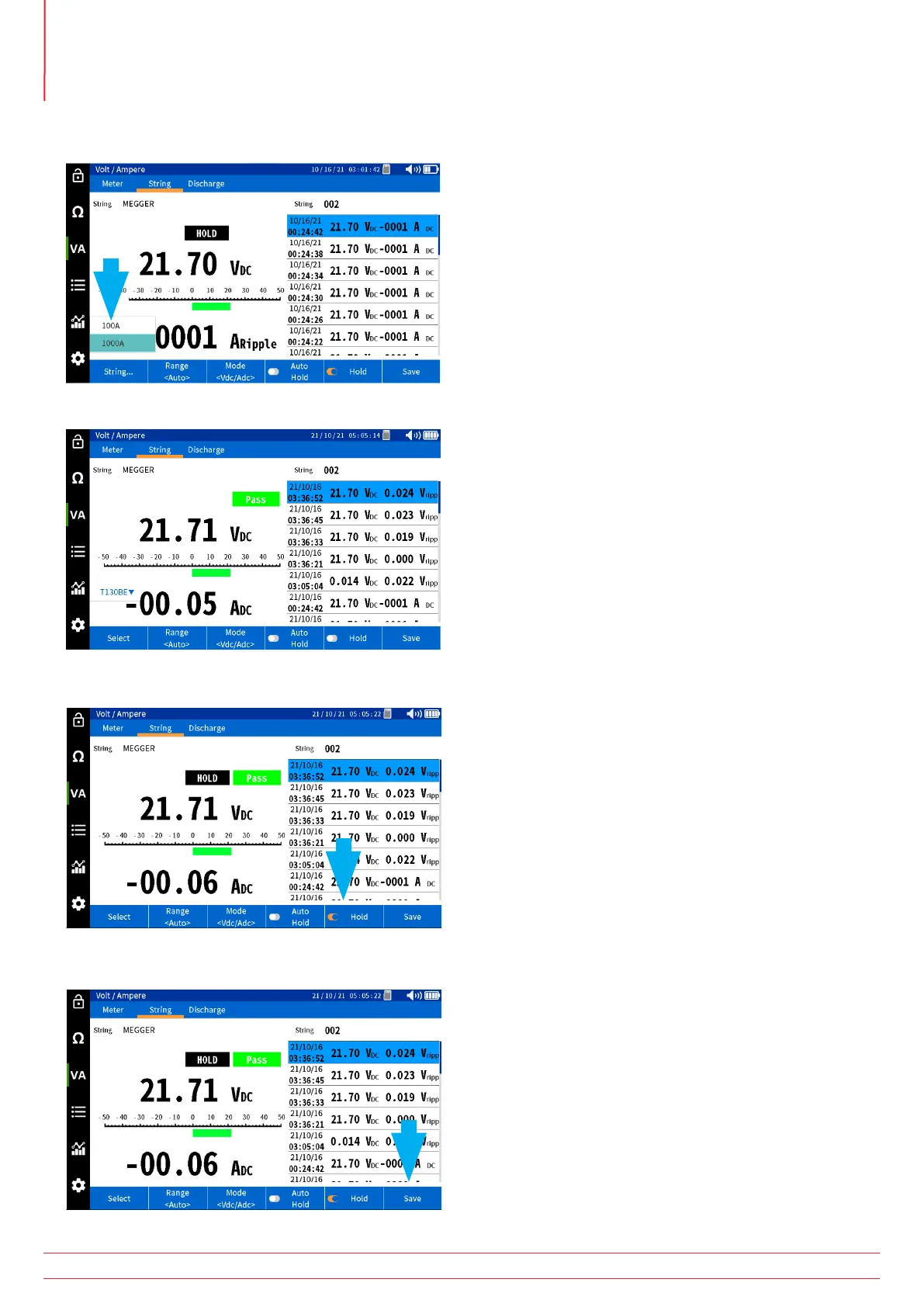

If using the CT
, set the correct range on the BITE5.
T
ake measurement.
Press “Hold” to fr
eeze the measurement on the scr
een.
Press “Save” to manually save the value with a date and time stamp.
www
.megger
.com
BITE5
26
Measuring and battery string voltages and curr
ents
25
27
Table of Contents
Table of Contents
3
Introduction
5
Purpose of Manual
5
Audience
5
Items Received
6
Warning and Safety Precautions
8
Technical Specifications
9
Connections and Controls
11
Zero Adjust
11
Configuration of BITE5
12
Configuration of String
14
Performing an Impedance Test
16
Performing an Impedance Test on a Battery String
18
Measuring and Recording Solar Cell Voltages and Currents
21
Measuring and Battery String Voltages and Currents
24
Performing a Discharge Test
27
Performing an Impedance and Discharge Test (Special Testing)
30
Trending Recorded Data
33
Trending Recorded Impedance Data
33
Trending Recorded VA Discharge Data
36
Trending Recorded Impedance - Discharge Data
40
Viewing a Record
44
Viewing Meter Impedance Records
44
Viewing String Impedance Records
45
Viewing Discharge Impedance String Records
46
Viewing Meter VA Records
47
Viewing Discharge VA String Records
49
Deleting Recorded Data
51
Deleting Meter Impedance Data
51
Deleting Discharge Impedance String Data
52
Deleting Meter VA Data
54
Deleting String VA Data
55
Deleting Discharge VA String Data
56
Deleting a String Configurations
58
Saving a Screen Snapshot
59
Accessories
60
Maintenance
61
