Action Icons:
Select NEW TEST to open new form.

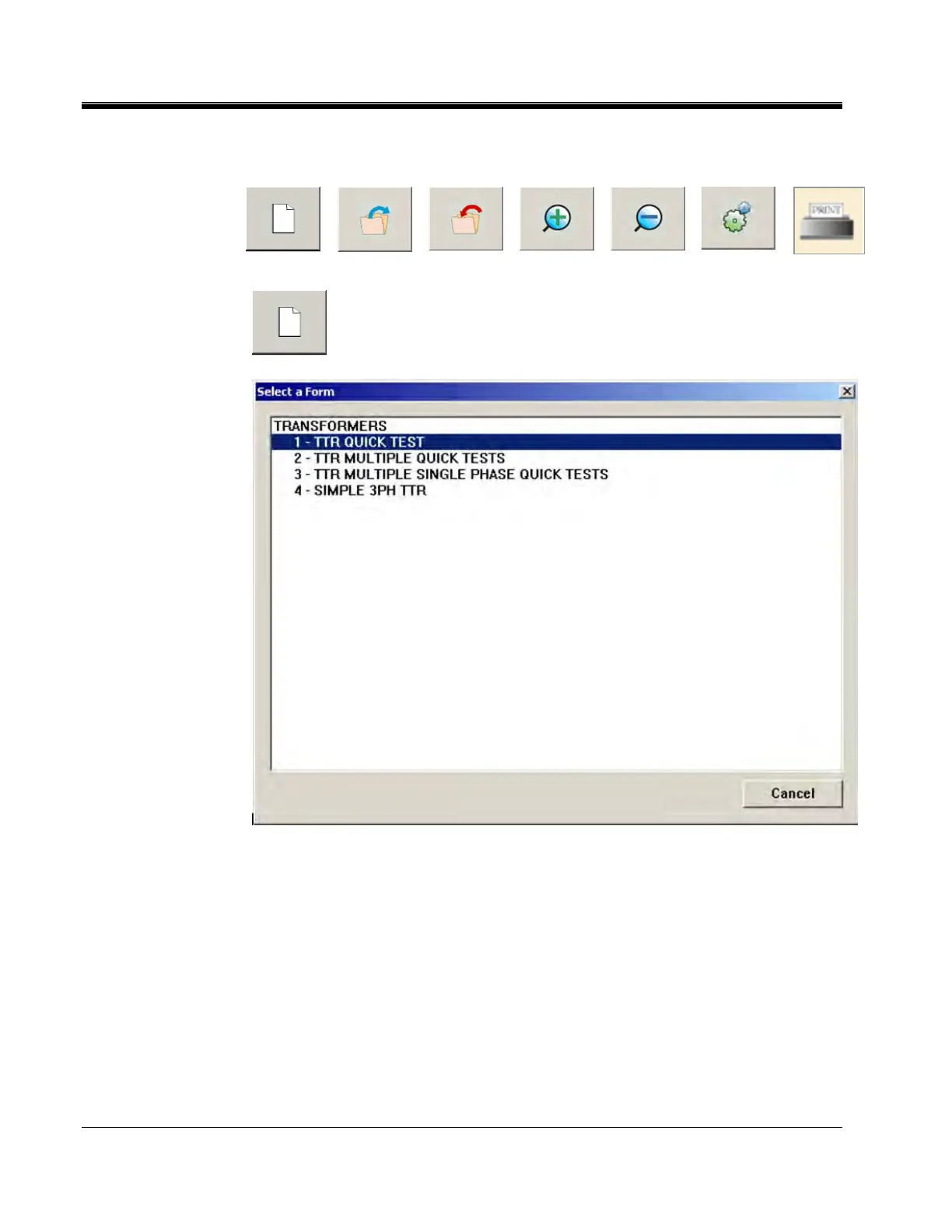

Figure 5-1. New Test Form screen
Quick test: This setup provides a quick path for single phase transformer
testing. It requires minimum transformer nameplate information to be entered
before testing. The test results displayed do not include either the calculated ratio
(per nameplate) or ratio deviation values.
Full test: This setup requires entering main transformer nameplate
information. The FULL test is used for obtaining full test information of a
transformer. This setup may be saved and recalled later for future testing of the
same or similar type transformers.
