Megmeet MV300 Series User Manual

12

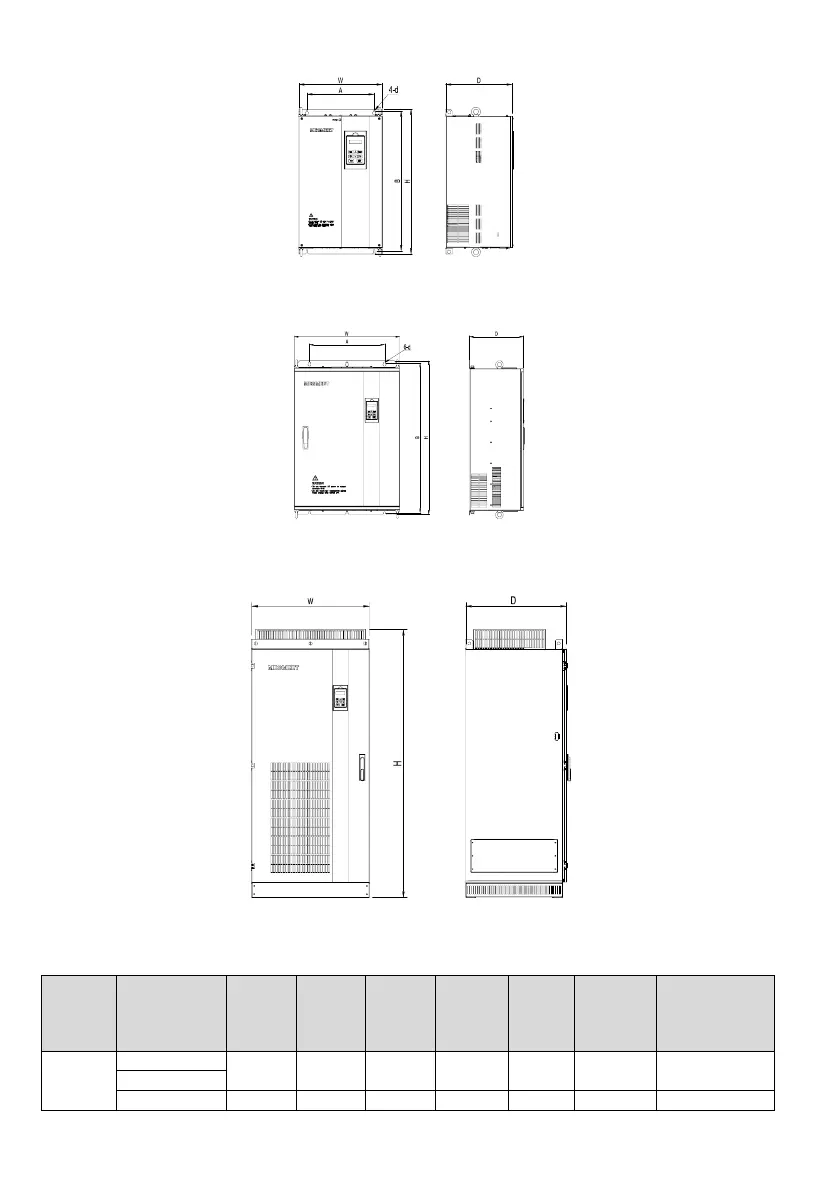

Fig. 1-3 Outline, mounting dimensions for products of R5~R8
3. Enclosure R9~R10 (G: 132kW-315kW; P: 160kW-315kW)
Fig. 1-4 Outline, mounting dimensions for products of R9~R10
4. Enclosure R11 (G: 355kW-400kW; P: 355kW-400kW)
Fig. 1-5 Outline, mounting dimensions for products of R11
Table 1-4 Outline, mounting dimensions and gross weight of MV300G
Enclosure
model
Drive model
A（mm） B（mm） H（mm） W（mm） D（mm）
Diameter of
mounting
aperture
(mm)
Gross weight
±0.5 (kg)
R2
MV300G-4T0.75
115 218 229 126 174 5.5 4
MV300G-4T1.5
MV300G-4T2.2 115 218 229 126 174 5.5 4
