15
2．For the drive of 75kWG~110kWG/110kWP, the DC reactor is packed separately with a wooden box, so the
gross weight includes the weight of the DC reactor and the wooden box.
3
．DC reactor should be installed at the bottom of the cabinet if it is to be installed inside a cabinet. The
clearance between reactor and the drive should be at least 35cm, and the reactor should be as far away from
the air inlet port of the drive as possible. If ventilation is poor in the cabinet, it is recommended to increase fan
forced air cooling for the reactor to avoid high ambient temperature.

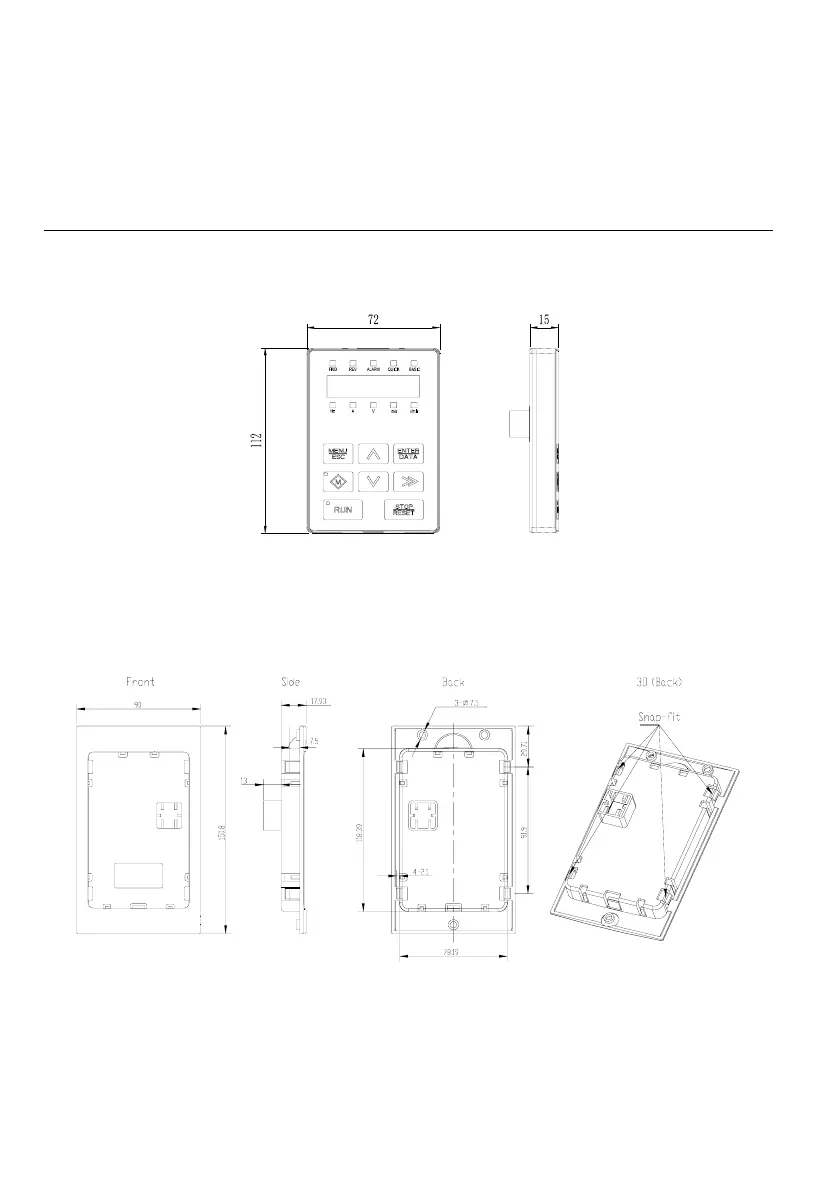

1.7 Outline and mounting dimensions of operation panel
Fig. 1-7 Outline and mounting dimensions of operation panel
1.8 Outline and mounting dimensions of operation panel box
The outline dimensions of the box used for mounting operation panel is as shown in Fig. 1-8.
Fig. 1-8 Outline dimensions of operation panel box
The mounting dimensions of the operation panel box is as shown in Fig. 1-9.
