12
Chapter 2 System wiring
Basic operation wiring

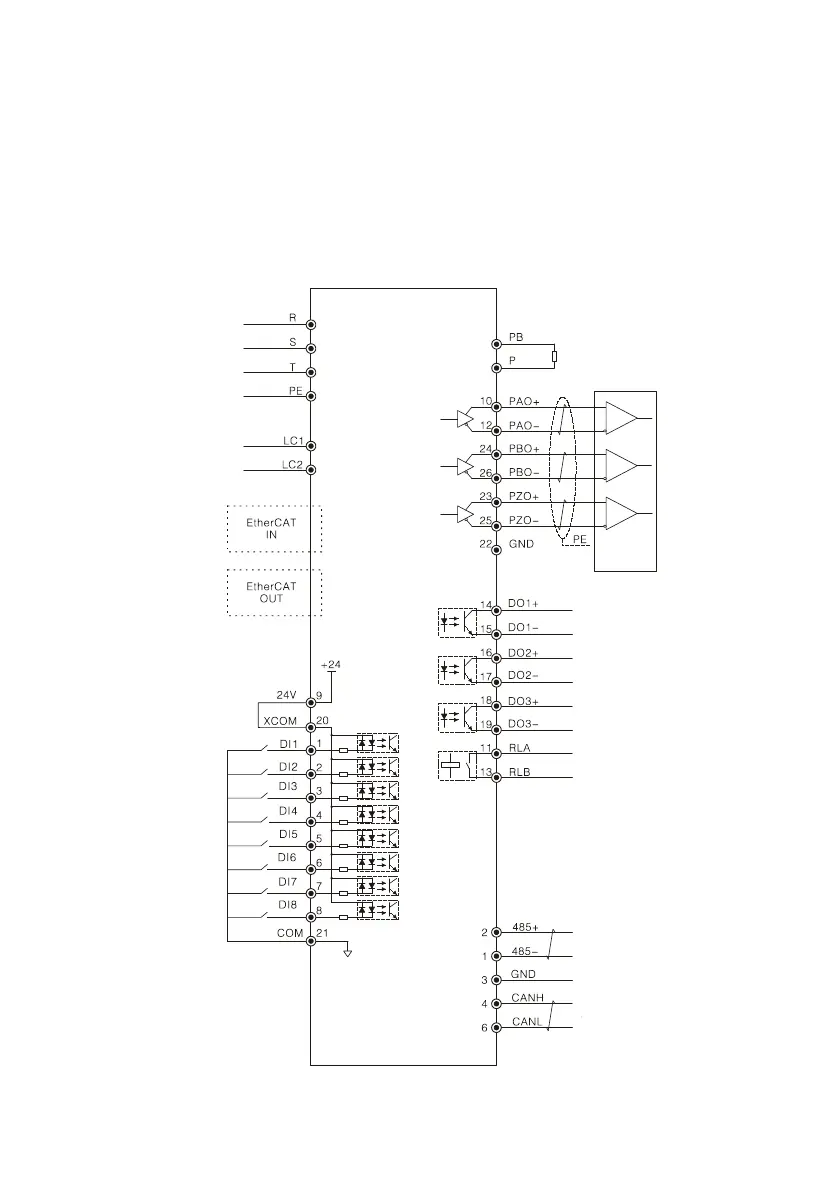

Fig. 2-1 Wiring diagram for basic operation
Frequency-division
output
Oriented stop completed
(/ORL-RDY)
Positioning completed
(/COIN)
Fault output
(/ALM)
Servo ready
(/S-RDY)
Servo ON
(/S-ON)
Speed/Position switchover
(/SPD/POS)
Oriented stop ON
(/ORL-ON)
Tapping ON
(/TAP-ON)
Emergency stop
(/ESD)
Spindle swing
(/SPDL-SW)
Reaming ON
(/RM-ON)
Fault reset
(/ALM-RST)
RS485 communication
CAN communication
