Megmeet SPS-NE Series User Manual

15
Type
Mark
Name
Function description
Note
Multi-func
tion
output
terminals
DO1+
DO1-
Digital output
terminal 1
30: Spindle/Positioning homing
completed
Optocoupler isolation output
Maximum operating voltage: 30 V
Maximum output current: 100 mA
DO2+
DO2-
Digital output
terminal 2
25: Positioning completed
DO3+
DO3-
Digital output
terminal 3
16: Servo drive fault
RLA
RLB
Relay output
terminal
15: Servo drive ready
Power
24V
＋24V power
supply
Provides external ＋24 V power
supply
Maximum output current: 100 mA
COM
＋24V common
2 common terminals, used in
cooperation with other terminals
COM is isolated from the inner GND
 Control circuit signal wiring
For DI/DO wiring, refer to the basic operation wiring diagram.

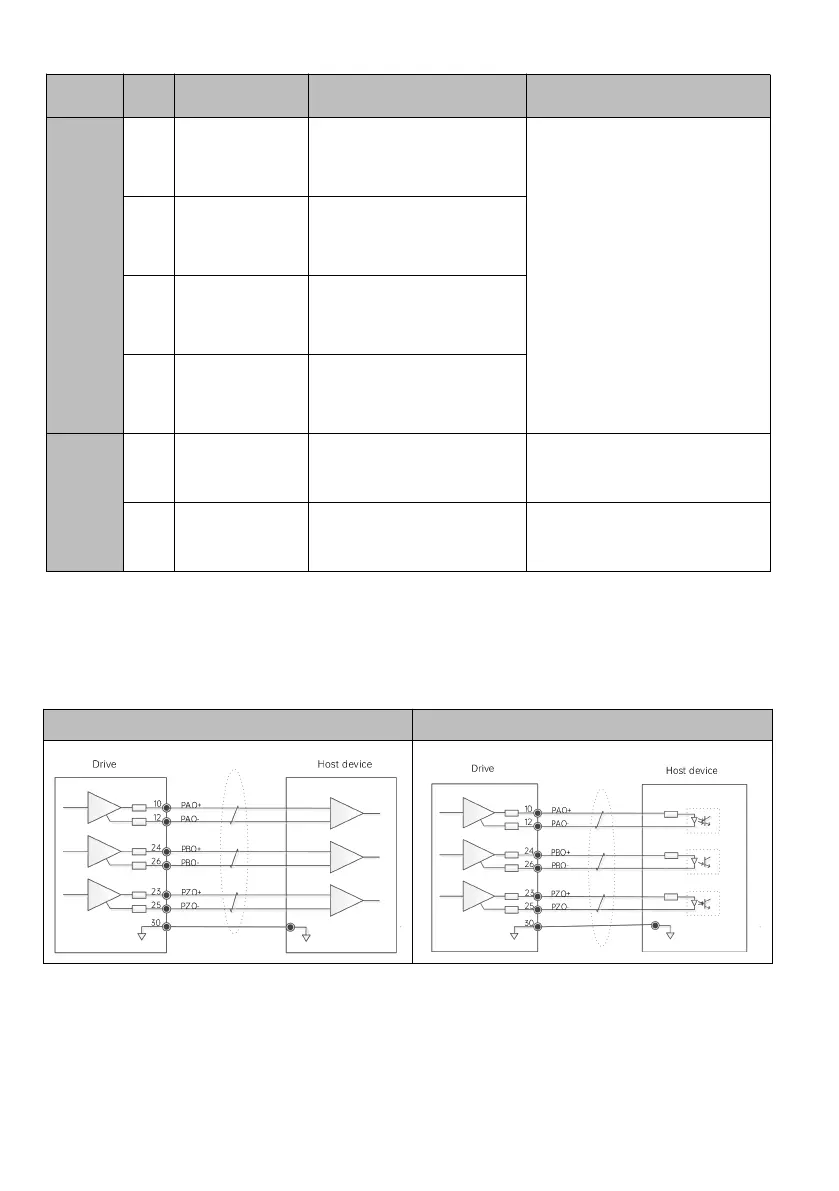

● Pulse frequency-division output
Host device differential reception
Host device optocoupler reception
