Megmeet SPS-NE Series User Manual

19
 Ethernet communication interface definition (CN4, CN5)
CN4 and CN5 are EtherCAT Ethernet communication connectors.
CN4 is the input interface connected to the communication line from the master station.
CN5 is the output interface connected to the next slave device.

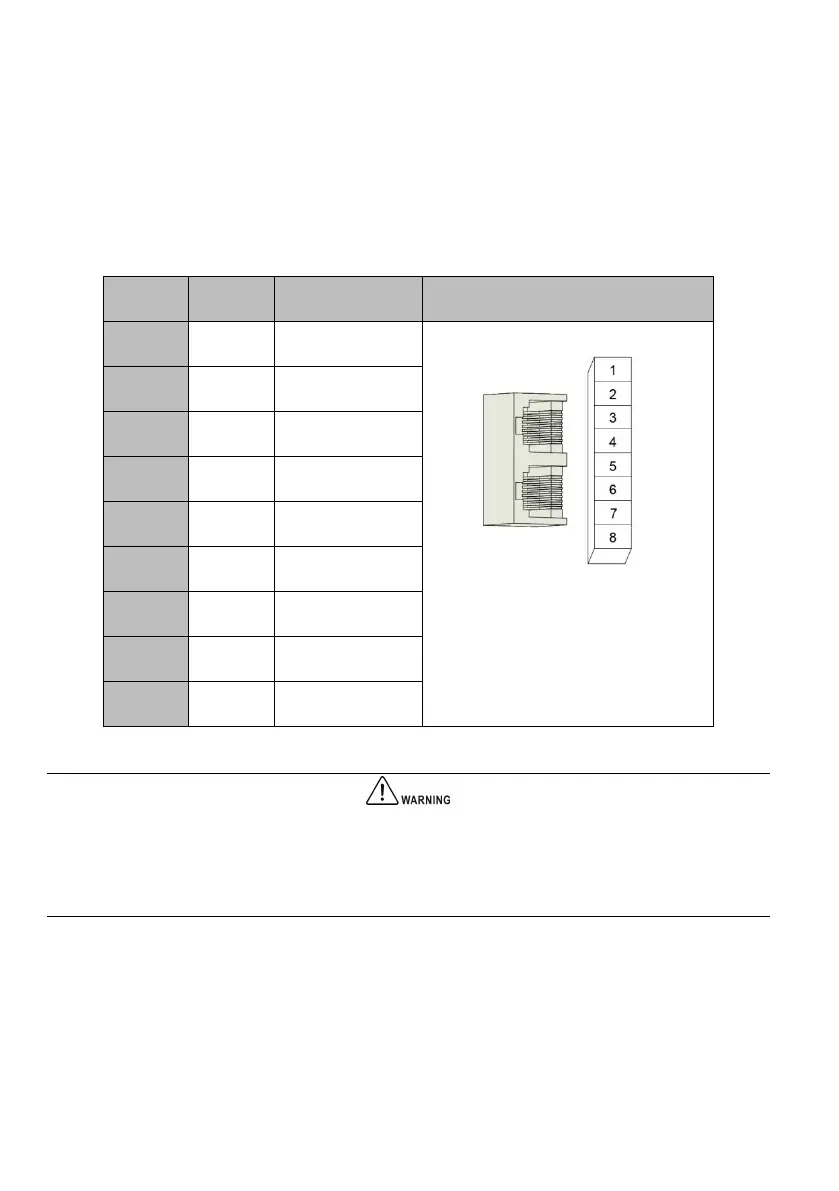

The connector’s pin definitions are as follows:
Pin
Name
Description
Arrangement
1
TX+
Data transmission +
2
TX-
Data transmission -
3
RX+
Data reception +
4
-
5
-
6
RX-
Data reception -
7
-
8
Housing
PE
Shield
(1) The connector meets the 100M Ethernet standards.
(2) Selection of cables: both straight-through and cross-over cables are supported. It is recommended to choose
double-shielded CAT5E 100M Ethernet cables or better cables.
