Megmeet SPS-NE Series User Manual

16

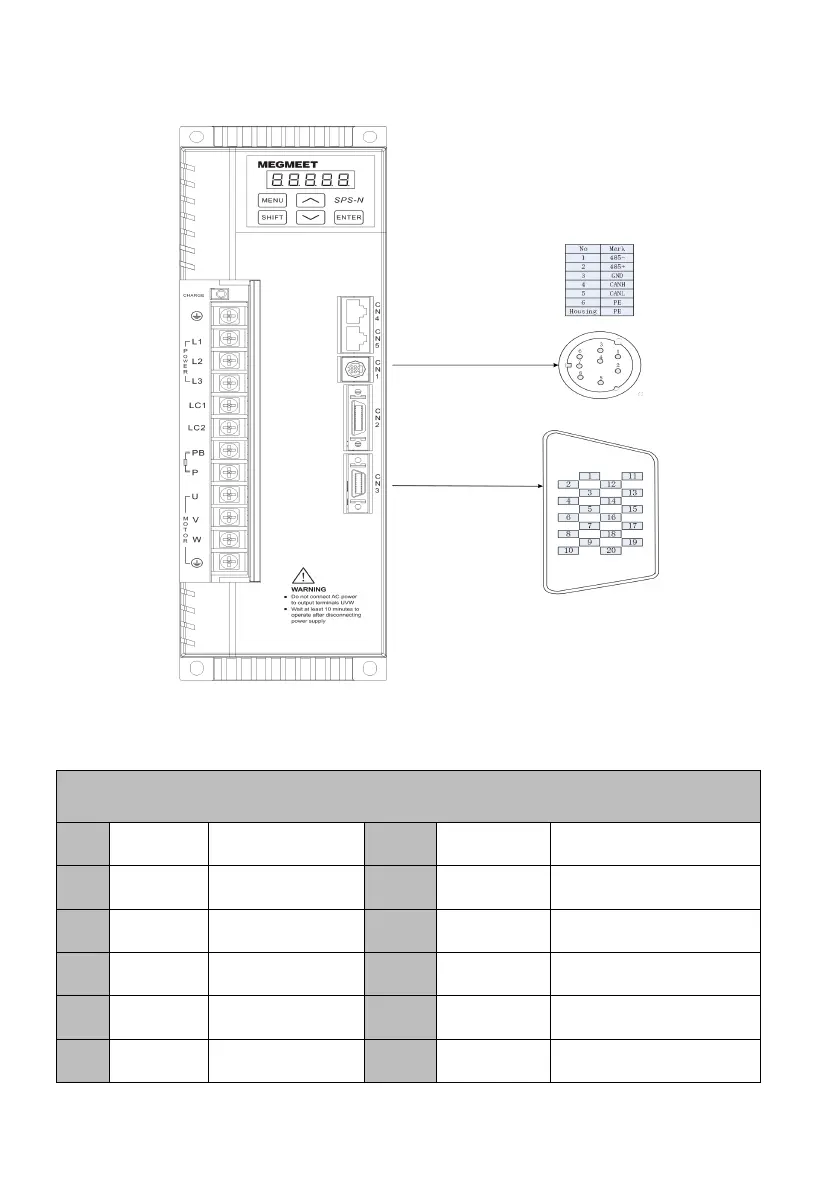

 Encoder interface wiring and signal definition (CN3)
SPS-NE servo drive supports four types of encoders including incremental encoders, sin/cos encoders,
absolute encoders and resolvers. The interfaces are defined as follows:
Incremental Encoder
Pin
Signal name
Description
Pin
Signal name
Description
1
A+
Encoder A+ signal
11
U+
Encoder U+ signal
2
A-
Encoder A- signal
12
U-
Encoder U- signal
3
B+
Encoder B+ signal
13
V+
Encoder V+ signal
4
B-
Encoder B- signal
14
V-
Encoder V- signal
5
Z+
Encoder Z+ signal
15
W+
Encoder W+ signal
