Megmeet SPS-NE Series User Manual

13
Note: The figure takes the incremental encoder as the example. Sin/Cos encoders are also supported.
Connect the braking resistor between PB and P.

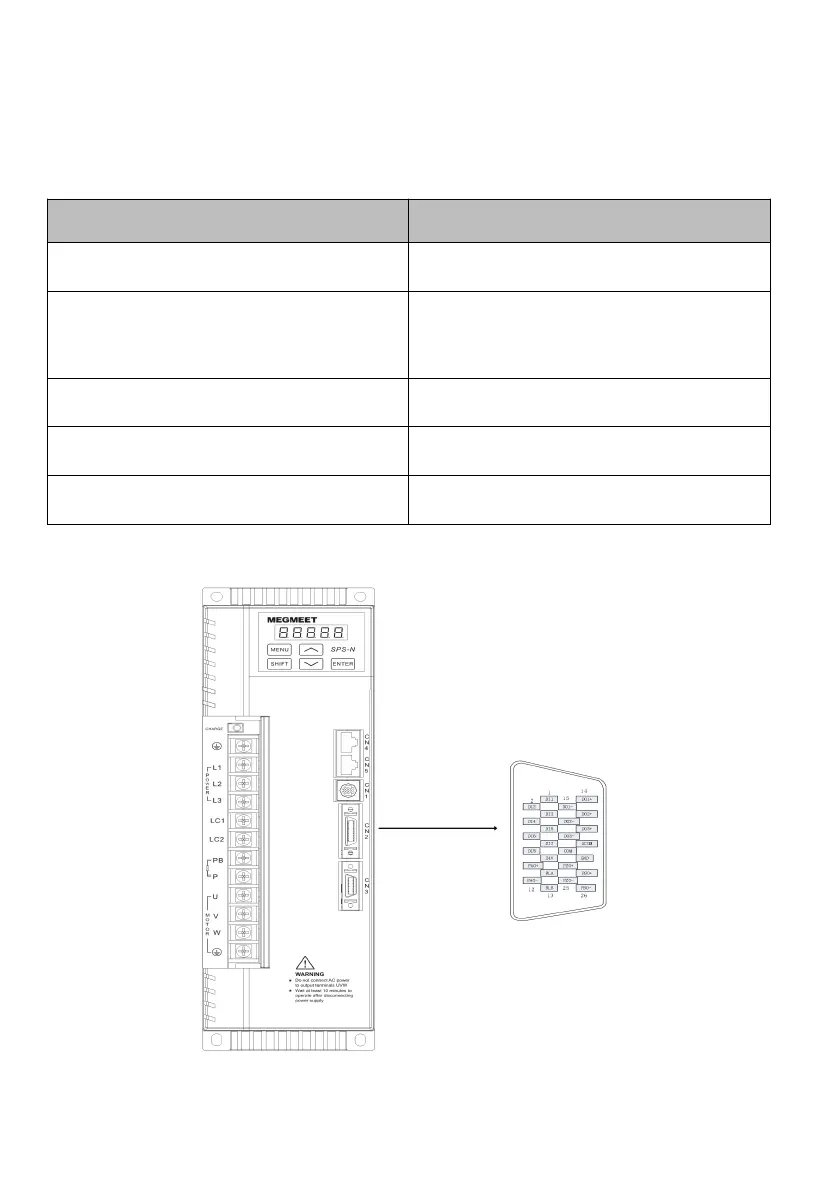

 Main circuit terminals and functions
Terminal name
Function description
L1, L2, L3
Three-phase 380 V AC input terminals
L1C, L2C
Single-phase 220 V AC input terminals
(load current ≥ 2 A)
P, PB
Connect the external braking resistor
PE
Power grounding and motor grounding terminals (2)
U, V, W
Three-phase AC output terminals (connected to motor)
 Control circuit terminals and functions (CN2)
Fig. 2-2 Arrangement of control signal pins
