Meler B4 NON-STOP - Pumping Control Card Components; Optional Equipment

FOCKE MELER GLUING SOLUTIONS
2-6
INTRODUCTION

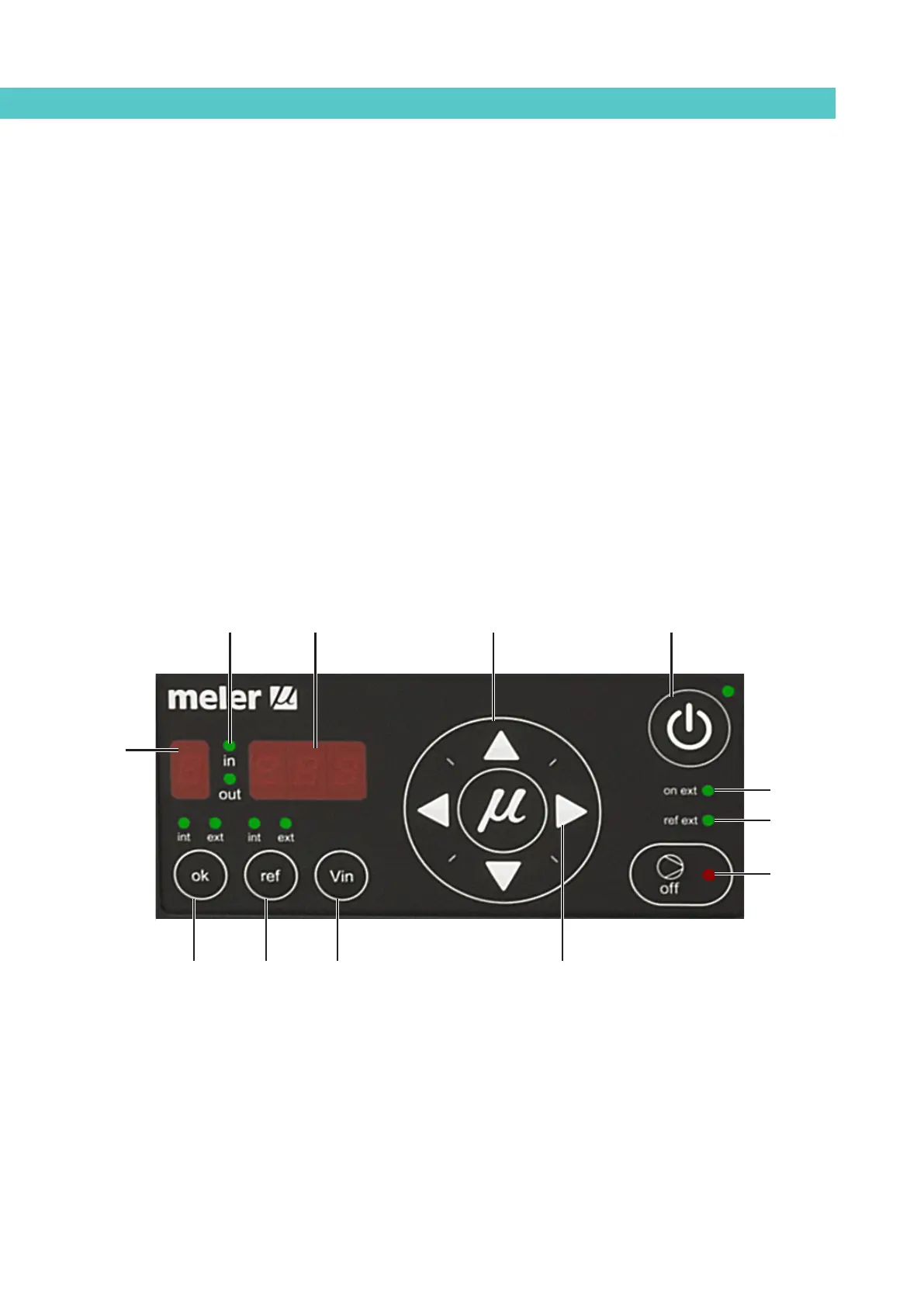

Pumping control card components
1. Main switch ON/OFF.
2. External start-stop LED.
3. External speed control LED.
4. Pumping permission LED.
5. Up/down arrow keys for selecting values.
6. Left/right arrow keys for selecting options.
7. Speed ramp steps display screen.
8. Speed ramp value selection LEDs (voltage/speed).
9. Voltage/ pump speed/ errors display screen.
10. Pumping control (internal/external) selection.
11. Pumping speed (internal/external) selection.
12. Voltage value display of the external signal of the speed control.
1
2
3
4
98 5
6
7
121110
Optional equipment
To increase the functionality of the B4 NS melters, the following optional
components can be incorporated:
• Detection of low adhesive level (block completely melted) with warning
light.
• Pump system activation via switch on applicator.
