PNEUMATIC DRAWINGS
8-1
MA-5081-E B4 NS ADHESIVE MELTER MANUAL

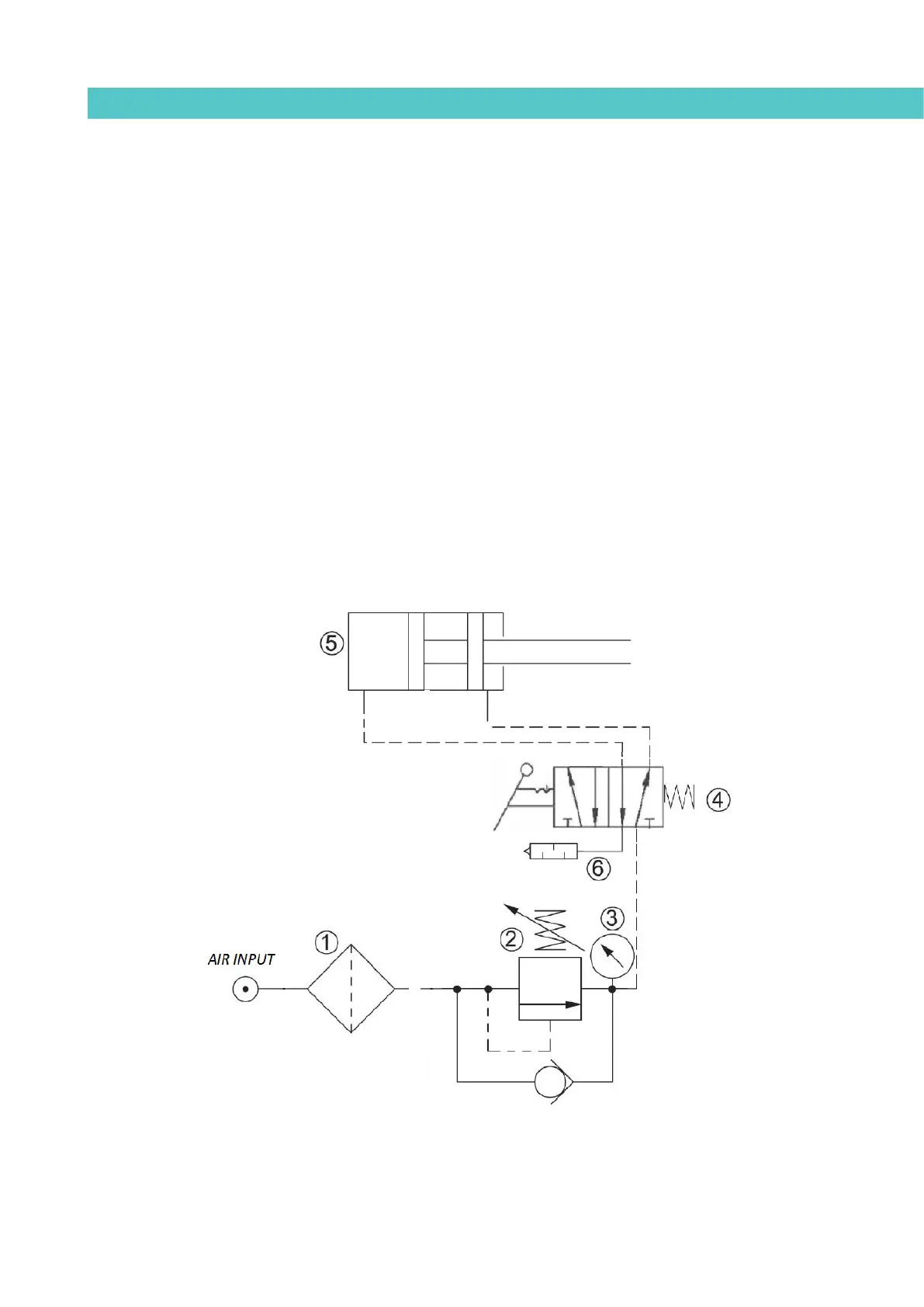

8. PNEUMATIC DRAWINGS
Components list
Pneumatic cylinder control system
- 1 Inlet filter (filtering disk).
- 2 Pressure regulator.
- 3 Pressure gauge.
- 4 Pneumatic valve 5/2.
- 5 Pneumatic cylinder.
- 6 Exhaust port filter.
