MELTER OPERATION MA-5081-E B4 NS ADHESIVE MELTER MANUAL

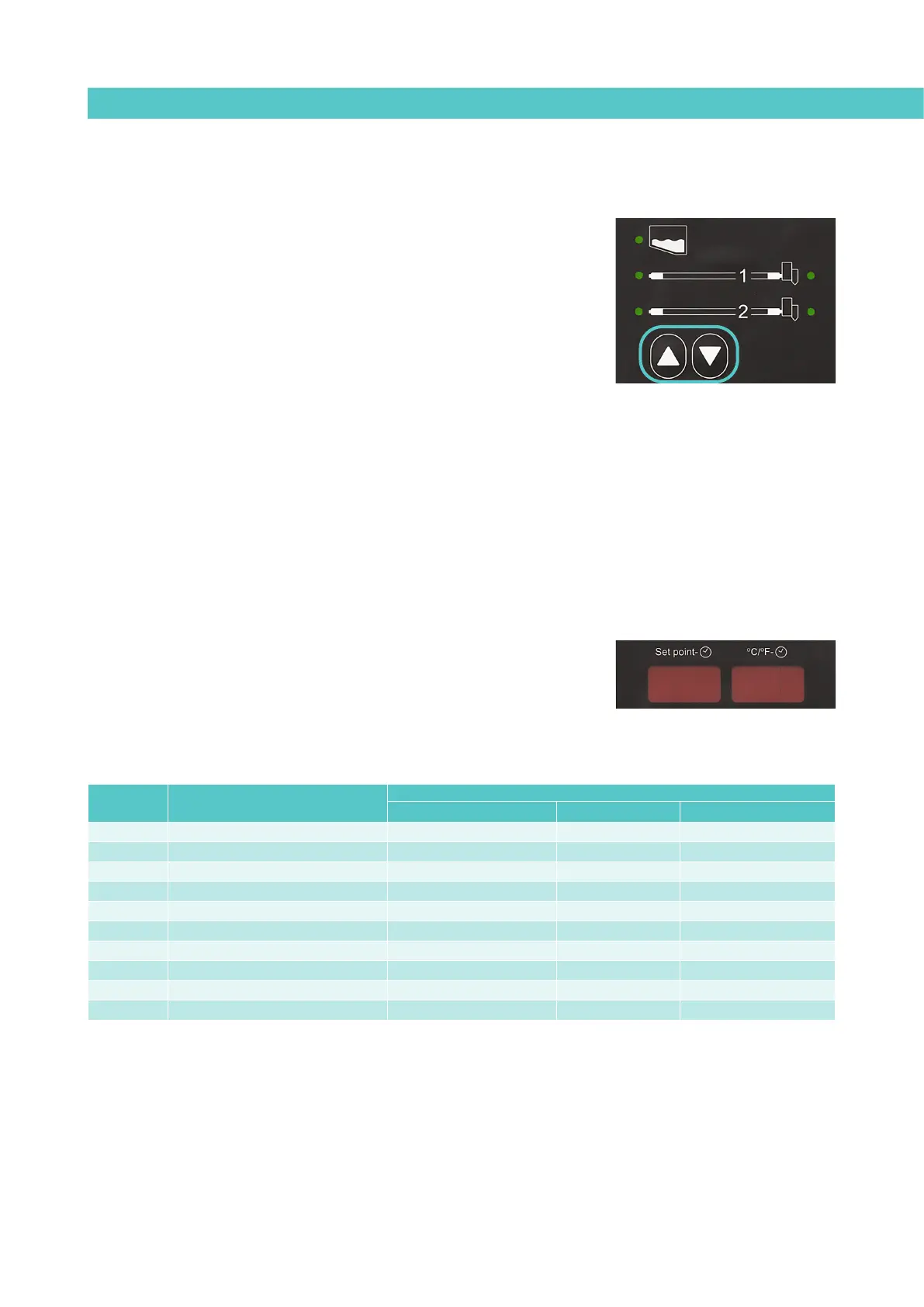

Temperature display for each component
The temperature of each component (tank and each hose and applicator) can
be displayed by selecting the component using the cursors.
Press the component selection up/down arrow until the desired component is
displayed.
After 10 seconds the display returns to the default component (tank).
If you would like the component to be displayed permanently press the up-
down button for 2 seconds on the selected component.
The display sequence is as follows:
tank<—hose1<—applicator1<—hose2<—applicator2
tank—>hose1—>applicator1—>hose2—>applicator2
To permanently remove a component from the display, simply press any of the
up-down arrows.
Alarm display
The B4 NS melters inform the user when there is a malfunction in the unit, by
sending messages that can be seen on the control panel display.
When an alarm appears, the control should take a series of actions to
protect the unit. Simply correct the fault and the control will reactivate the
equipment’s functions.
Activating the standby function does not trigger any alarm.
If the sensor is broken, the system will keep all the components hot, except
for the one in which the fault has occurred.
In the event of overheating, the system immediately stops heating the failed
component. If after three minutes, the fault persists, the system will stop
heating all components and the power relays will be disconnected. The panel
will continue to display the alarm until the error has been rectified. Once
resolved, the power relays will be reactivated and the system will begin to heat
as normal.
Code Cause
Actions
Heating Pump Main machine signal
Err 0 tank broken sensor only tank off off off
Err 1 hose1 broken sensor only hose1 off off off
Err 2 applicator1 broken sensor only applicator1 off off off
Err 3 hose2 broken sensor only hose2 off off off
Err 4 applicator2 broken sensor only applicator2 off off off
Err 100 tank overheating all components off off off
Err 101 hose1 overheating all components off off off
Err 102 applicator1 overheating all components off off off
Err 103 hose2 overheating all components off off off
Err 104 applicator2 overheating all components off off off
