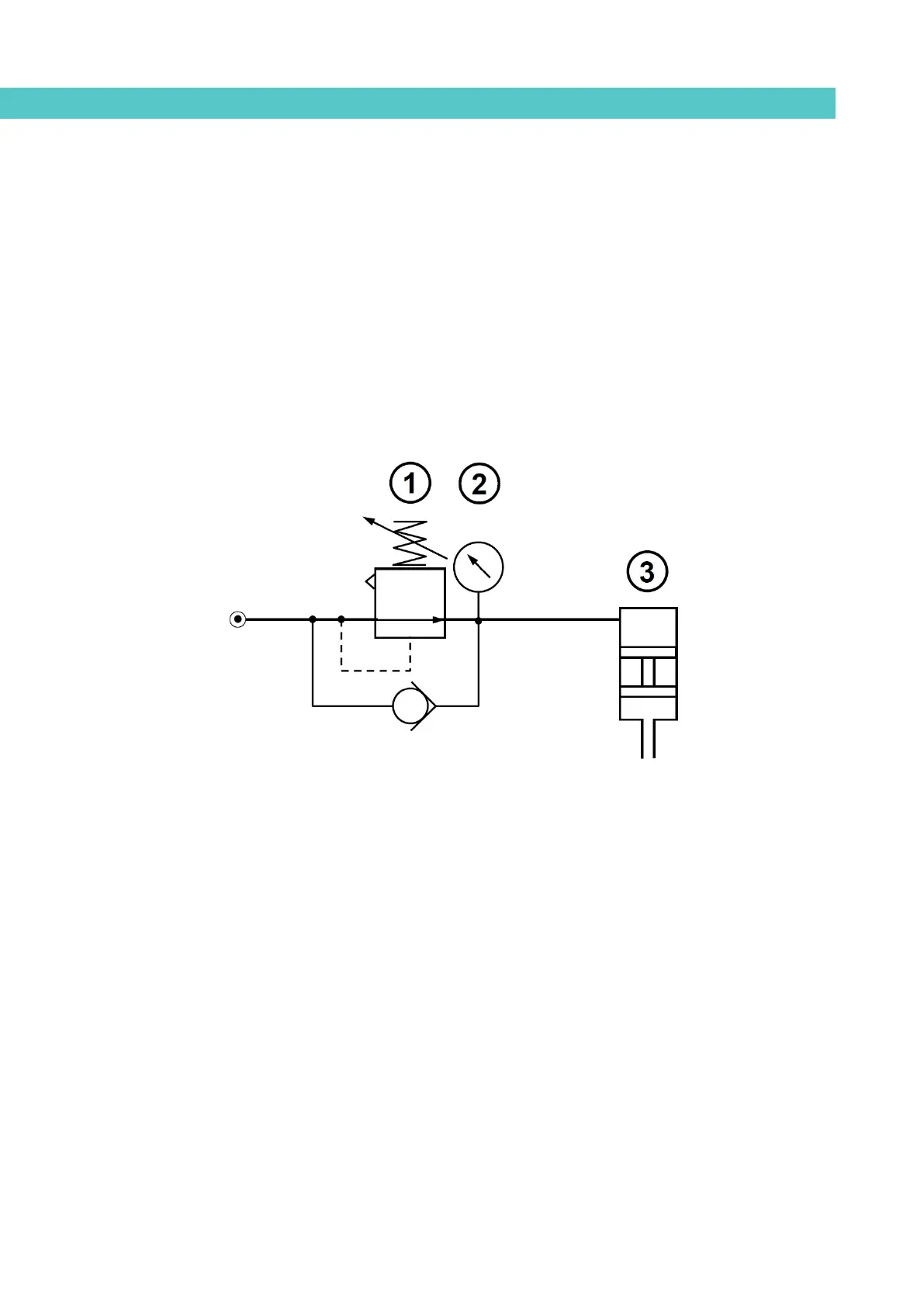

PNEUMATIC DRAWINGS
Pneumatic by-pass valve control system (optional)
- 1 Pressure regulator 1-10 bar
- 2 Pressure gauge 0-10 bar
- 3 Pneumatic limit control valve
AIR INPUT
