Meler B4 NON-STOP - Electric Panel and Auxiliary Components

FOCKE MELER GLUING SOLUTIONS
9-6

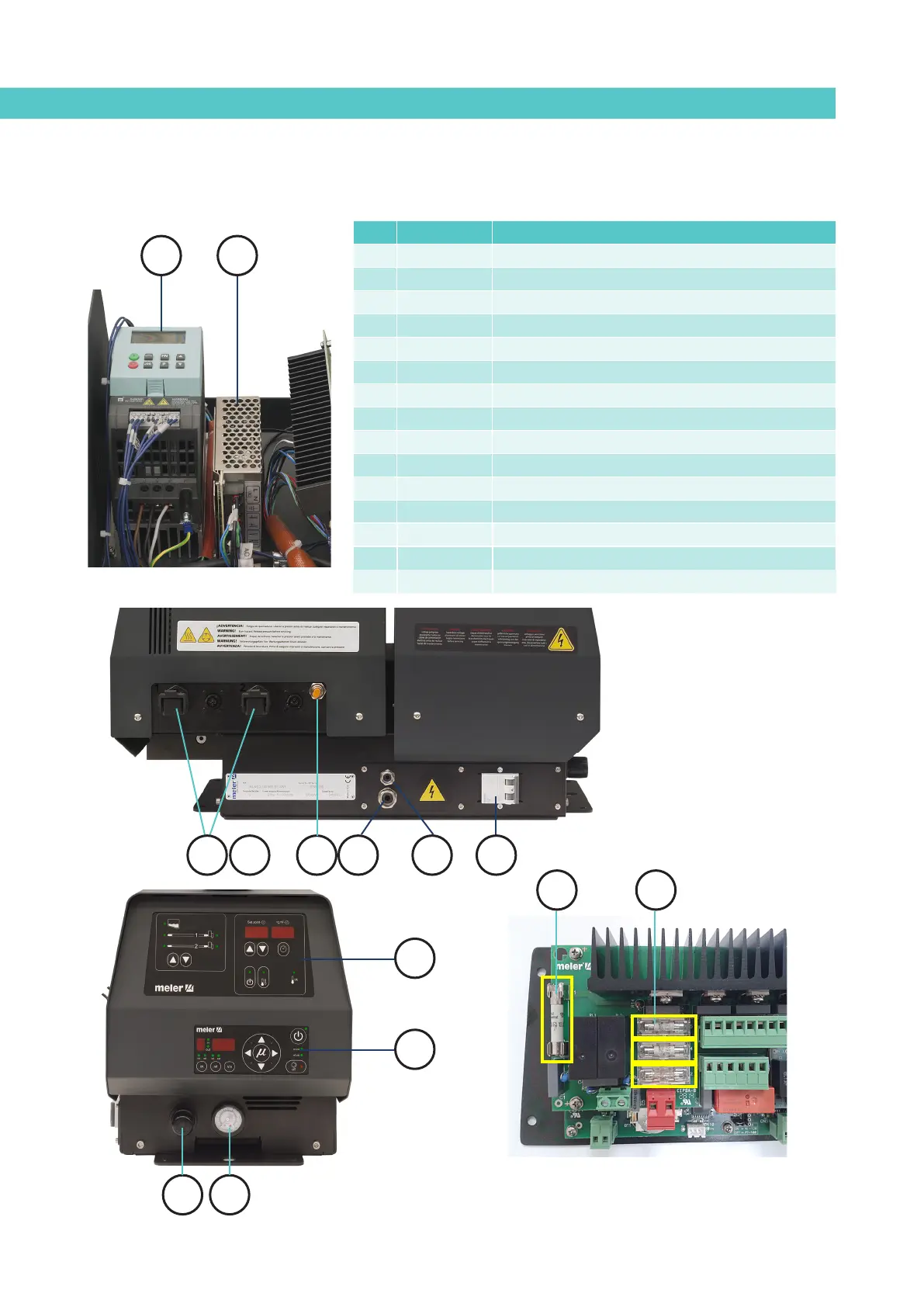

SPARE PART LIST
D. ELECTRIC PANEL AND AUXILIARY COMPONENTS
Nº Ref. Description
1 10000204 Control card
1.1 150112410 Fuse 6,3A 5x20 ultra fast
1.2 150115650 Fuse 10A 6x32 ultra fast
2 150117100 Pumping control card
3 10110031 Pressure regulator
4 150113840 Pressure gauge
5 150021010 Circuit breaker 16A 2-pole
6 16010003 8-pin female connector (base housing)
7 150020720 12-pin female connector (base housing)
8 10140040 Cable gland Pg 13.5
9 150021590 Cable gland Pg 9
10 10120021 Air inlet quick coupling
11 150117110 Inverter Siemens G110 0,55KW
12 150117120 Power supply 24V 2,2A
12.1 10010401 Fuse 1A 5x20 power supply
43
1
2
11 12
1.11.2
F1 TANK
F5 CH. 2
F4 CH. 1
F2 GENERAL
9
8107
5
6
