Installation
Rev. 1.7
26Mellanox Technologies
Step 3. If cable accommodation is required, rout the power cable and/or Eth cable through either of
the outer rails.
Step 4. Secure the switch to the left and right inner rails (A+B), by gently pushing the switch chas-
sis’ pins through the slider key holes, until locking occurs.

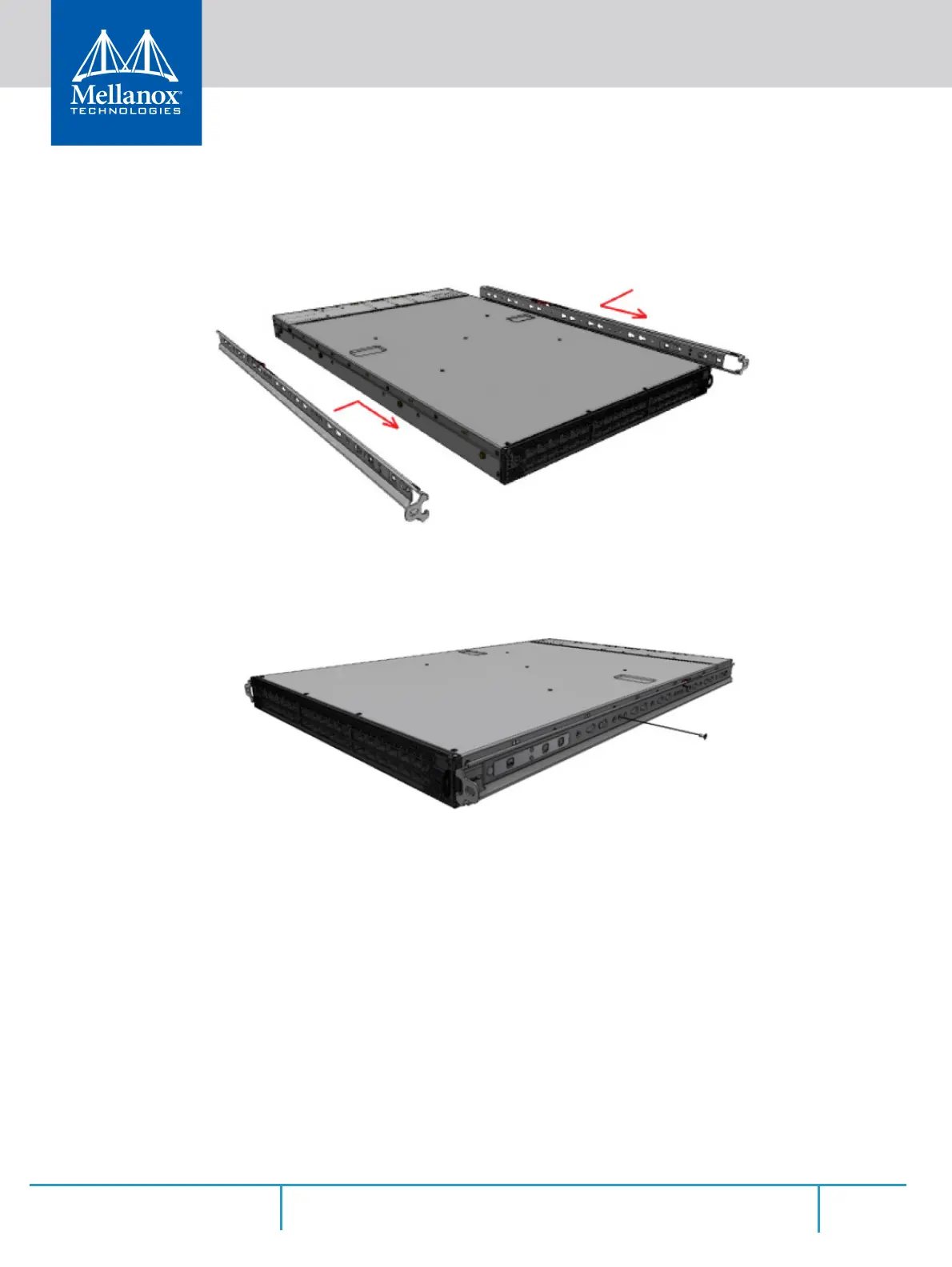

Figure 15: Attaching the Inner Rails to the Chassis
Step 5. Secure the chassis in the inner rails screwing the 2 flat head Phillips screws (F) in the desig-
nated points with a torque of 1.5±0.2 Nm.
Figure 16: Securing the Chassis in the Inner Rails
Step 6. Slide the switch into the rack by carefully pushing the inner rails into the outer rails installed
on the rack.
