Installation
Rev. 1.7
28Mellanox Technologies

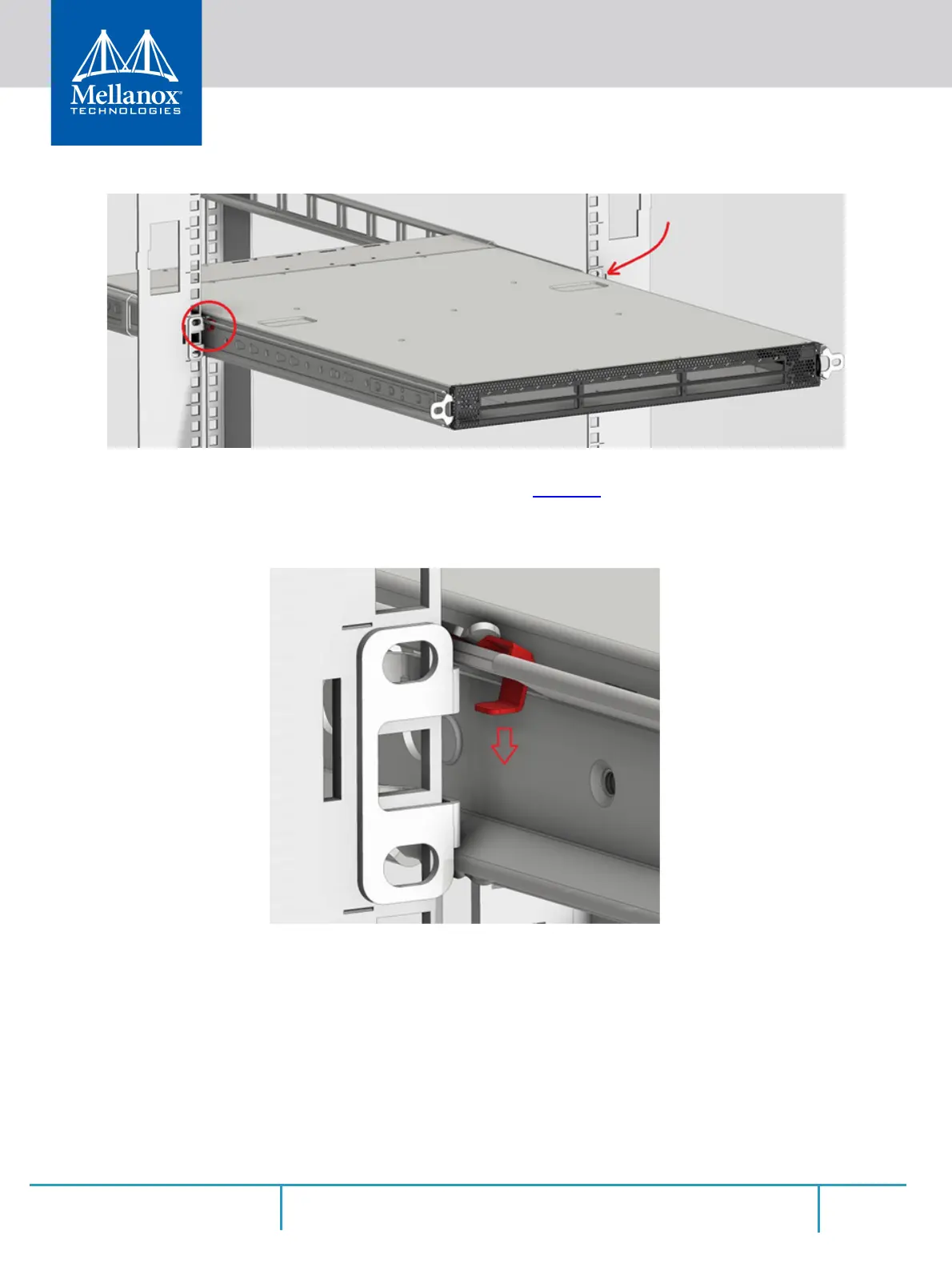

Figure 18: Pulling the Unit Outwards
Step 4. Press on the locking spring (appears in red in Figure 19) on both sides simultaneously, and
continue pulling the unit towards you until it is fully removed.
Figure 19: Locking Mechanism
