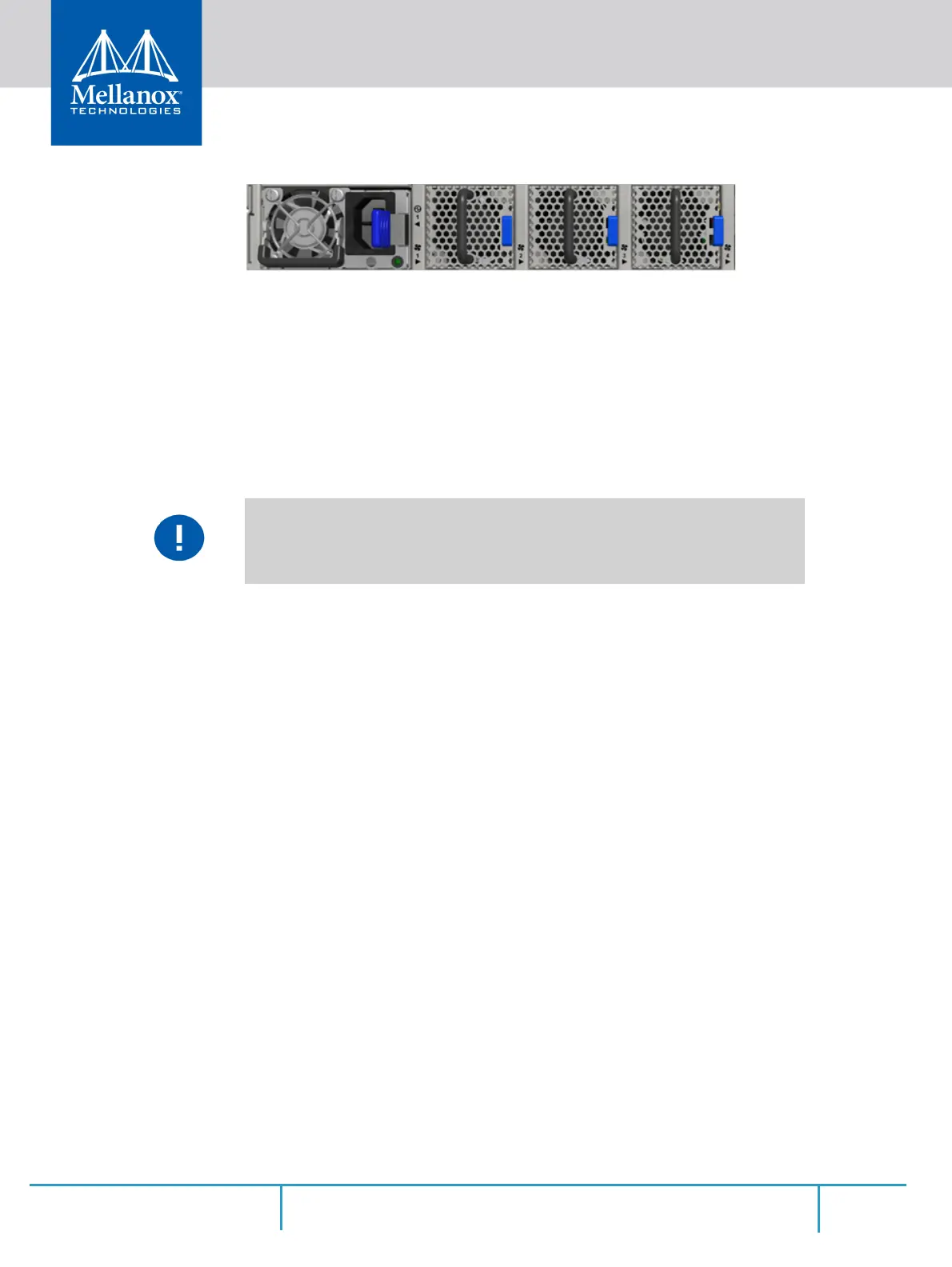

Figure 24: Fan Module Latches
To insert a FAN Unit:
Step 1. Make sure the mating connector of the new unit is free of any dirt and/or obstacles.
Step 2. Insert the fan unit by sliding it into the opening until slight resistance is felt. Continue press-
ing the fan unit until it seats completely
The green Fan Status LED should light. If not, extract the fan unit and reinsert it. After
two unsuccessful attempts to install the fan unit, power off the
system before attempt-
ing any system debug.
To remove or replace a fan unit, gently pull out its black handle while pus
latch release with your thumb.
