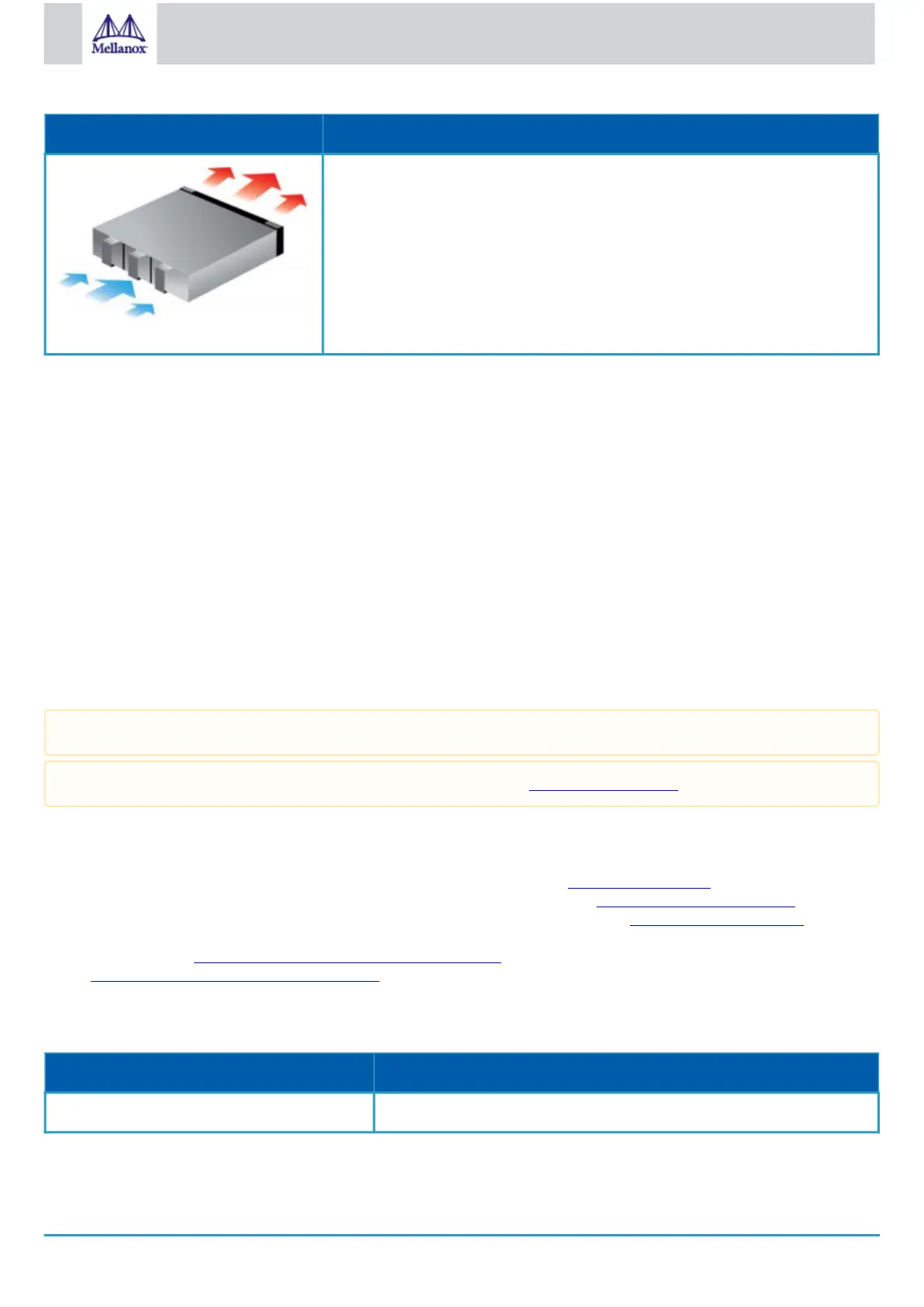

Direction Description and OPN Designation
Power side inlet to connector side outlet. Blue latches are placed on the power inlet
side.
OPN designation is “-F”.
3.4 Package Contents
Before installing your new system, unpack it and check against the parts list below that all the parts have been sent. Check the parts
for visible damage that may have occurred during shipping.
The SN2700 and SN2410 package content is as follows:
1 – System
1 – Rail kit
1 – Power cable for each power supply unit – Type C13-C14
1 – Cable retainer for each power supply unit
1 – DB9 to RJ-45 2m harness
1 - RJ-45 to RJ-45 2m harness
The SN2100/SN2010 package content is as follows:
1 – System
1 – Power cable for each power supply unit – Type C13-C14
1 – DB9 to RJ-45 2m harness
3.5 19” System Mounting Options
By default, the SN2700 systems are shipped with the static rail kit described SN2700 Static Rail Kit.
The SN2410 and SN2740 systems are shipped with the static rail kit described in SN2740/SN2410 Static Rail Kit.
For the telescopic rail kit installation instructions (can be used with SN2700 only), see SN2700 Telescopic Rail Kit.
The SN2100/SN2010 system is shipped without a rail kit and a designated rail kit can be purchased separately. For installation
instructions, see SN2100/SN2010 Side by Side Mounting Rail Kit.
SN2100/SN2010 Static Single Switch Rail Kit
3.6 SN2700 Static Rail Kit
Kit OPN Rack Size and Rack Depth Range
MTEF-KIT-A Short (17”-24”) or Standard (24”-34”)
The following parts are included in the static rail kit (see figure below):
2x Rack mount rails (A)
A designated rail kit for the SN2100/SN2010 systems can be purchased separately.
If anything is damaged or missing, contact your sales representative at support@mellanox.com.
