6.
7.
1.
2.
3.
4.

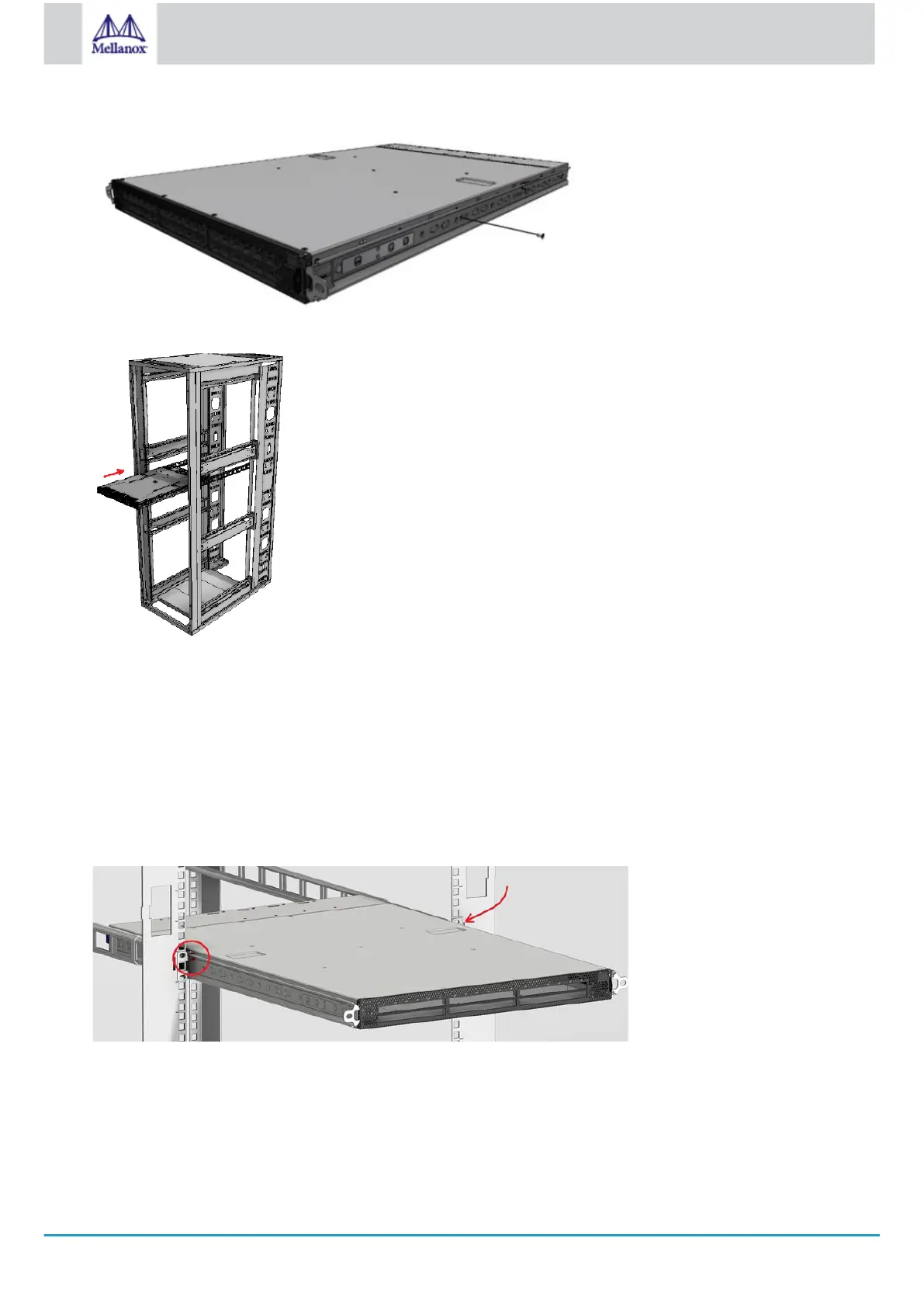

Slide the switch into the rack by carefully pushing the inner rails into the outer rails installed on the rack.
Sliding the Switch into the Rack
When fully inserted, fix the switch by closing the remaining 2 screws in the middle and tightening the 8 screws inserted in
Step 2 with a torque of 4.5±0.5 Nm.
3.7.1 Removing the System from the Rack
To remove a unit from the rack:
Turn off the system and disconnect it from peripherals and from the electrical outlet.
Unscrew the two M6 screws securing the front of the inner rails’ ears to the outer rails and to the rack.
Pull the unit out until braking is felt. For safety purposes, the locking mechanism will not allow a complete removal of the unit
at this stage.
Pulling the Unit Outwards
Press on the locking spring (appears in red in the figure below) on both sides simultaneously, and continue pulling the unit
towards you until it is fully removed.
