9.
10.

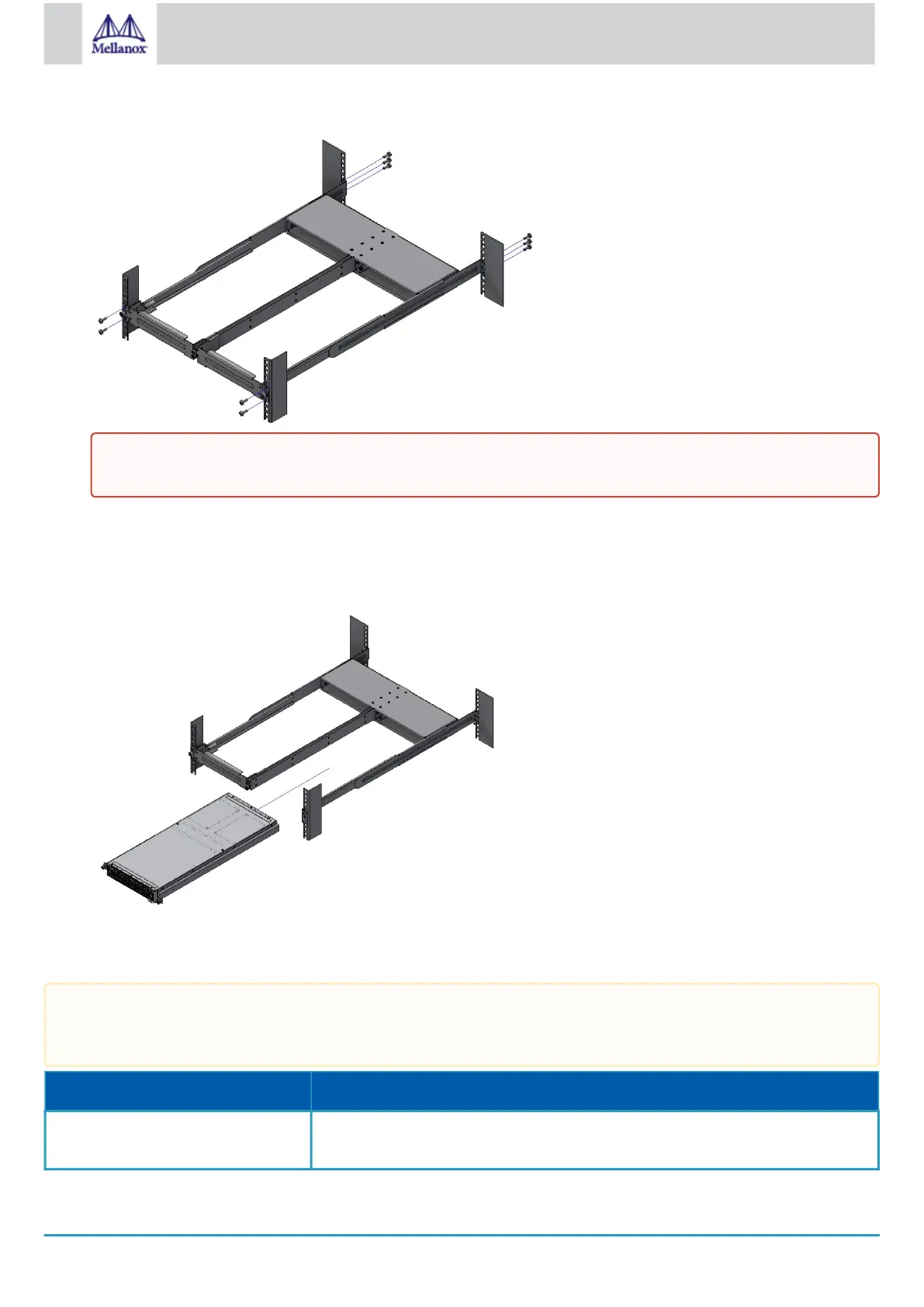

Remove the blank cover from the selected slot in the frame, and mount the system by sliding its mounting blades into the
frame. Repeat this step to install an additional system in the other side of the frame, if needed.
Tighten the capture nuts to secure the system in the frame. The recommended torque on the right screw is 3.0-3.36 Nm while
on the left screw recommended torque is 0.89-0.98 Nm.
Sliding the System’s Blades in the Rails
3.10 SN2100/SN2010 Static Single Switch Rail Kit
Kit OPN Rack Size and Rack Depth Range
MTEF-KIT-E Rack installation static kit for SN2100/SN2010 systems short depth 1U half-width
switches, allows installation of a single switch into standard depth racks.
Do not remove both of the blank covers at the same time. When no system is installed, at least one of them should be
present to support the frame’s partition.
The installation process is demonstrated on an SN2100 system, but applies to the SN2010 series as well.
This rail kit is not included with the SN2100/SN2010 systems, and can be purchased separately.
This section is relevant to short-depth systems that allow such form of installation only.
