Grasping the handle with your hand, push the latch release with your thumb while pulling the handle outward. As the power
supply unit unseats, the power supply unit status LEDs will turn off.
Remove the power supply unit.

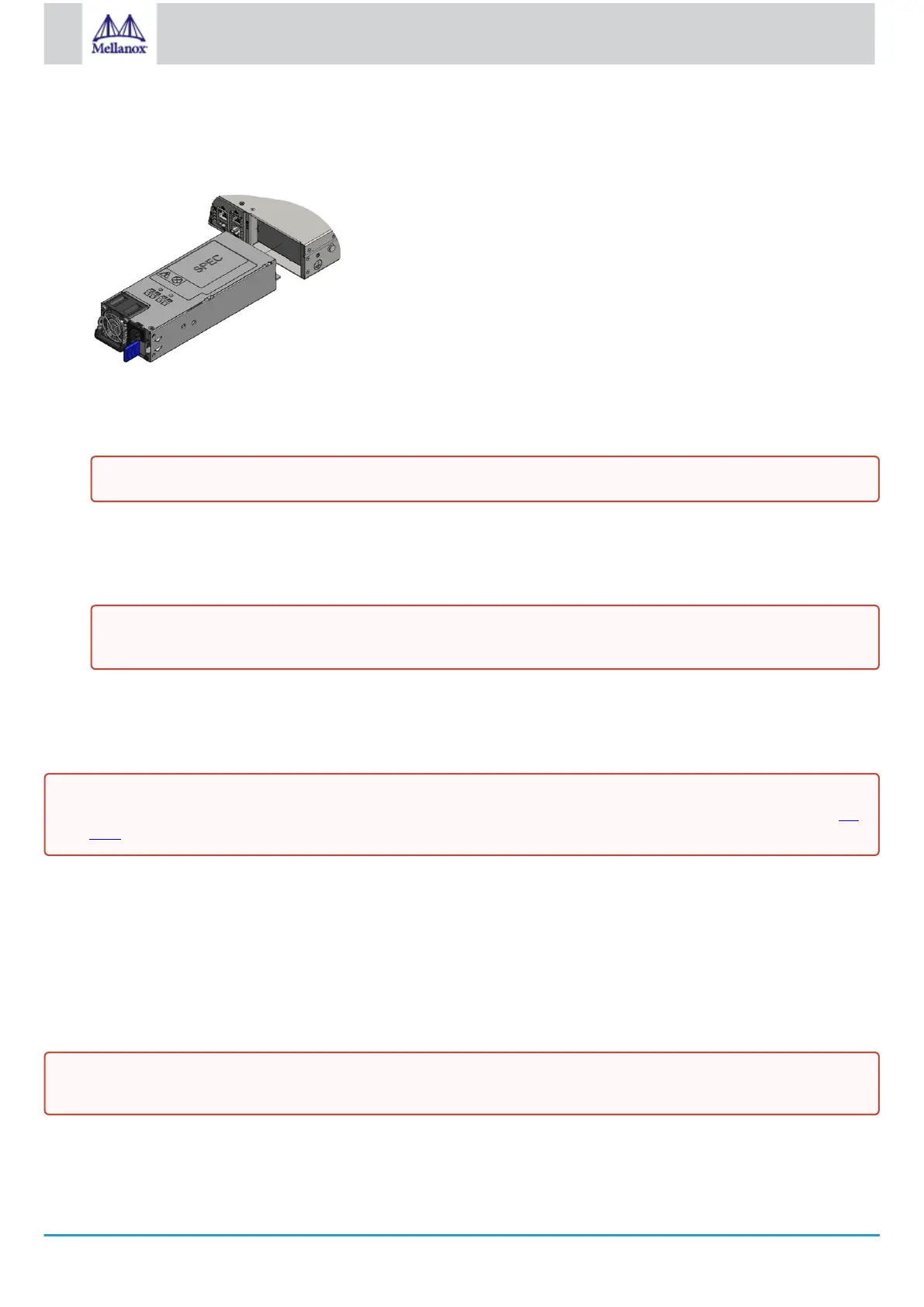

PS Unit Pulled Out
To insert a power supply unit:
Make sure the mating connector of the new unit is free of any dirt and/or obstacles.
Insert the power supply unit by sliding it into the opening, until a slight resistance is felt.
Continue pressing the power supply unit until it seats completely. The latch will snap into place, confirming the proper
installation.
Insert the power cord into the supply connector.
Insert the other end of the power cord into an outlet of the correct voltage.
3.14.2 Fans
The system can fully operate if one fan FRU is dysfunctional. Failure of more than one fan is not supported.
To remove a fan unit:
Grasping the handle with your right hand, push the latch release with your thumb while pulling the handle outward. As the fan
unit unseats, the fan unit status LEDs will turn off.
Remove the fan unit.
To insert a fan unit:
Make sure the mating connector of the new unit is free of any dirt and/or obstacles.
Insert the fan unit by sliding it into the opening until slight resistance is felt. Continue pressing the fan unit until it seats
completely.
Fan Module Latches
Do not attempt to insert a power supply unit with a power cord connected to it.
The green power supply unit indicator should light. If it does not, repeat the whole procedure to extract the power
supply unit and re-insert it.
Make sure that the fans have the air flow that matches the model number. An air flow opposite to the system design will
cause the system to operate at a higher (less than optimal) temperature. For power supply unit air flow direction, refer to Air
Flow.
The green Fan Status LED should light. If not, extract the fan unit and reinsert it. After two unsuccessful attempts to install
the fan unit, power off the system before attempting any system debug.
